Cabling the
Connectors
Cabling the LAN
Connectors
The PathBuilder switch has two Ethernet interfaces, and a number of
Flex-WAN serial interfaces, Ultra-WAN CSU/DSU, T3/E3 WAN, and/or
ATM interfaces, depending on the model. This section describes how to
cable each interface on your switch.
Some network topologies require that a grounding stud, separate from
the AC ground, be provided on the chassis of the networking equipment.
If this is required, ground the PathBuilder S574 ATM tunnel switch by
attaching a permanently connected protective earthing conductor using a
minimum 18 gauge wire with a UL-listed ring lug to a reliably connected
earth ground (see Figure 11).

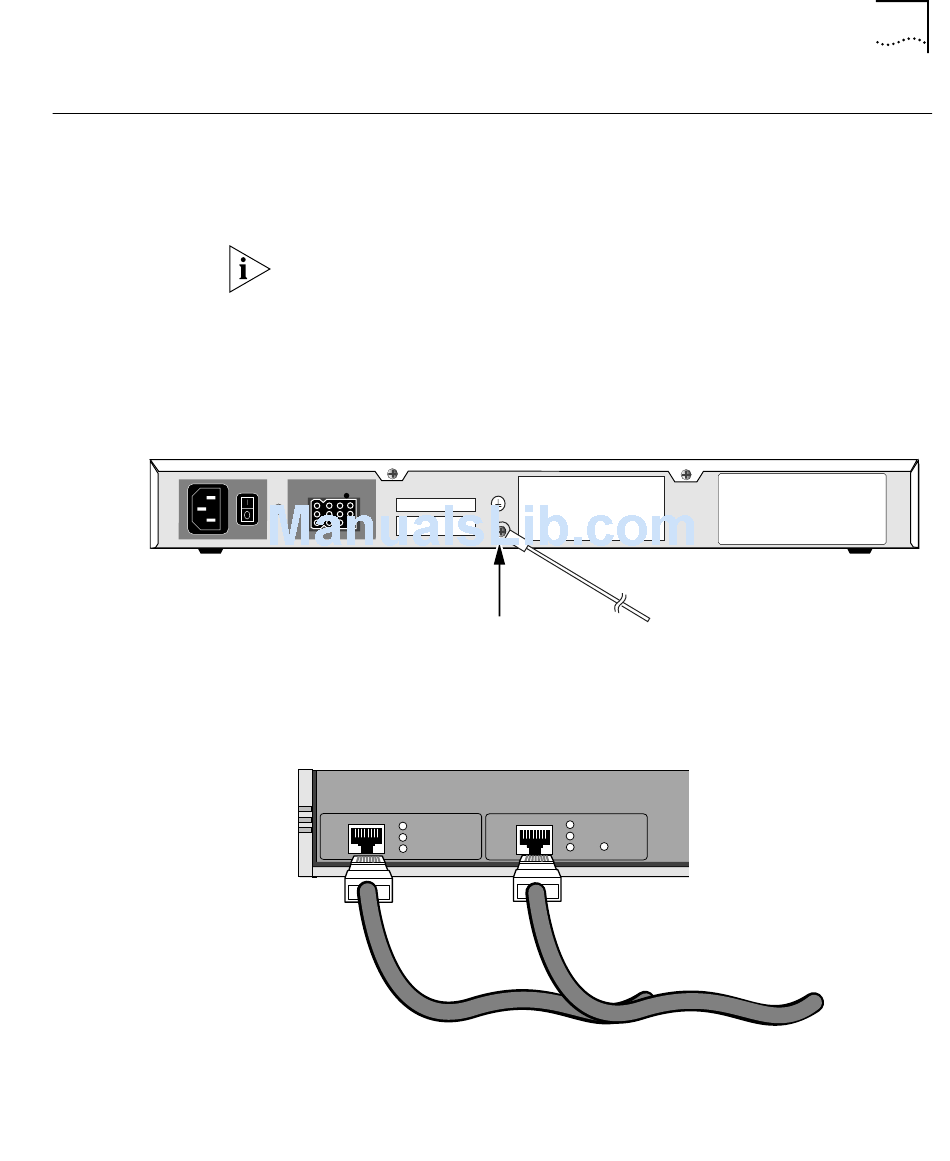

Figure 11 Grounding the PathBuilder S574 ATM Tunnel Switch
Connect earthing conductor
using grounding screw
You can cable one or two Ethernet connectors using either 10BASE-T or
100BASE-TX cabling.
LAN 1
Link
Active
Fault
10BASE-T or 100BASE-TX cables
For more information about Ethernet connectors and cables, see "LAN
Connector and Cables" on page 85.

Cabling the Connectors

To earth ground
LAN 2
Link
Active
100Mb
Fault
29
