LOCATION
Main Menu
Configure VLAN
460T Ch5 - Sec 2-VLANs-Monitoring-Tools.p65
R
5
Using Local Management

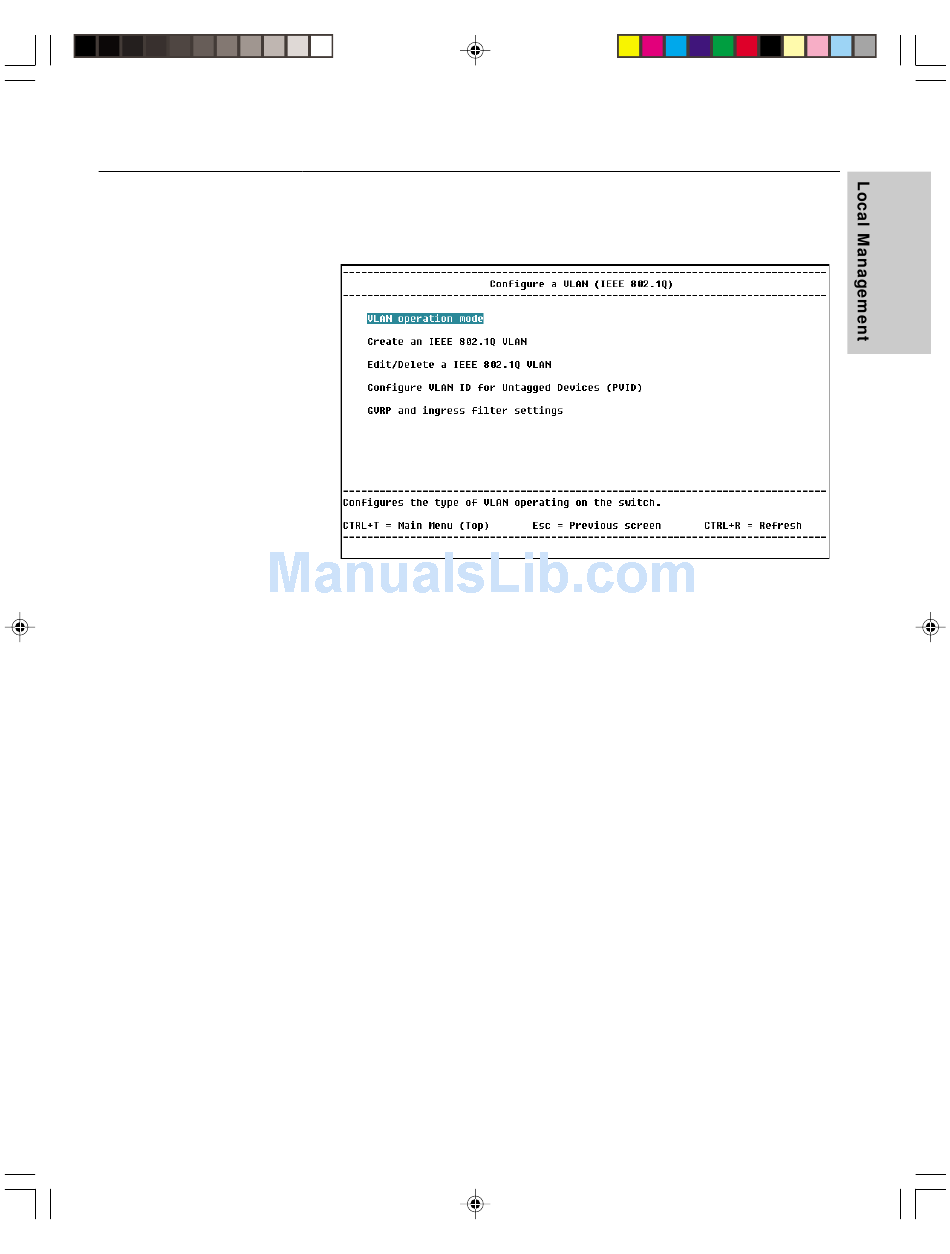

Configure 802.1Q VLANs
Description
VLAN Operation Mode: This option allows you to change the type of
VLAN operating on the switch, or to disable VLANs entirely.
Create an IEEE 802.1Q VLAN: This screen allows you to create a new
802.1Q VLAN and add ports to the VLAN.
Edit/Delete an IEEE 802.1Q VLAN: This screen allows you to change
port membership of an existing VLAN, or you can remove a VLAN from
the switch.
Configure VLAN ID for untagged devices (PVID): This screen lets you
assign a VLAN to incoming packets without a VID.
GVRP and ingress filter settings: This screen lets you set port-level
options for dynamic VLAN creation and packet filtering by VLAN.
93
4/19/00, 1:54 PM
93
