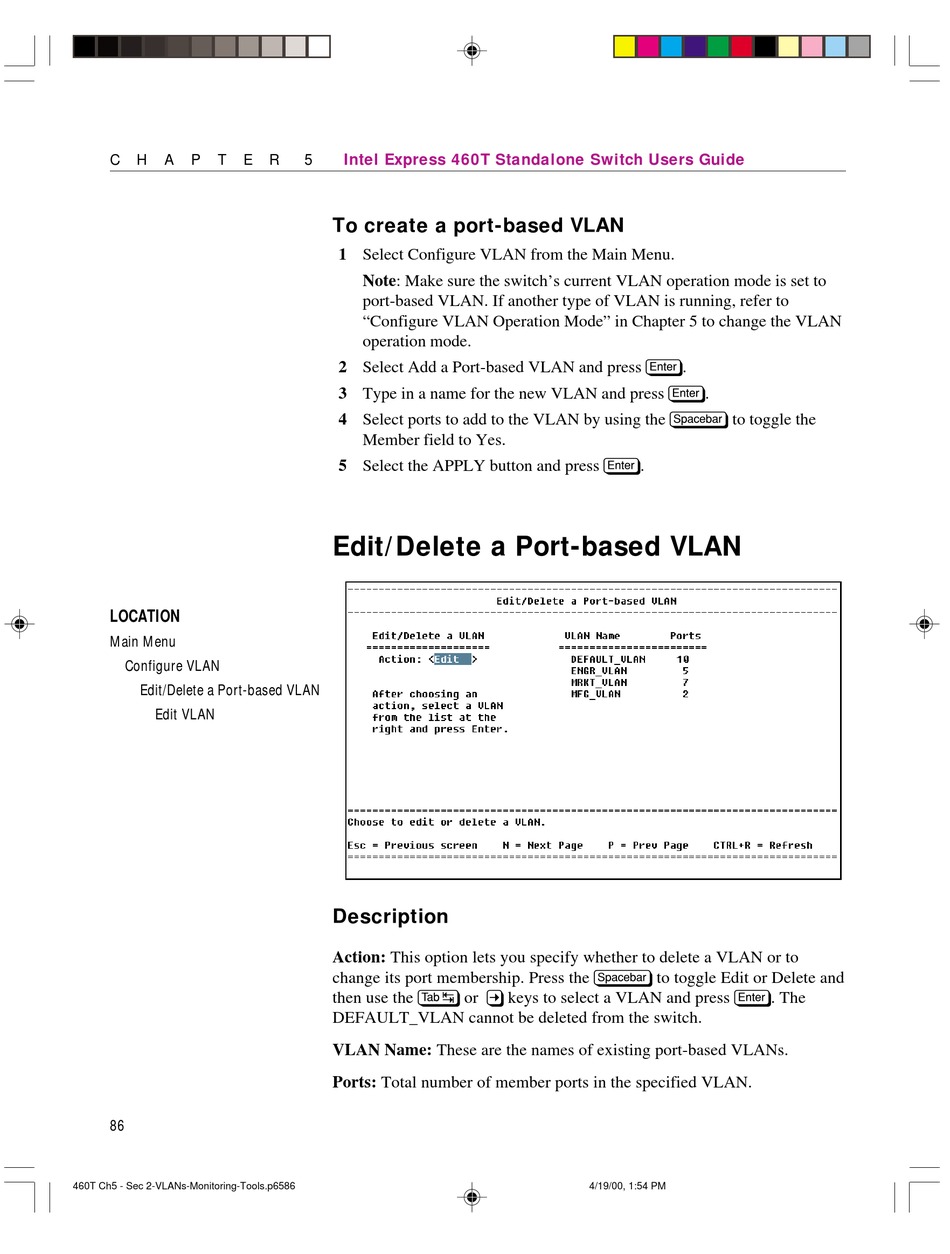

Edit/Delete A Port-Based Vlan - Intel ES460MSX - Ethernet 1000Base SX Switch Module User Manual

C H A P T E
LOCATION
Main Menu
Configure VLAN

Edit/Delete a Port-based VLAN

Edit VLAN
86
460T Ch5 - Sec 2-VLANs-Monitoring-Tools.p65
R 5 Intel Express 460T Standalone Switch Users Guide
To create a port-based VLAN
1 Select Configure VLAN from the Main Menu.
Note: Make sure the switch's current VLAN operation mode is set to
port-based VLAN. If another type of VLAN is running, refer to
"Configure VLAN Operation Mode" in Chapter 5 to change the VLAN
operation mode.
2 Select Add a Port-based VLAN and press e.
3 Type in a name for the new VLAN and press e.
4 Select ports to add to the VLAN by using the z to toggle the
Member field to Yes.
5 Select the APPLY button and press e.
Edit/Delete a Port-based VLAN
Description
Action: This option lets you specify whether to delete a VLAN or to
change its port membership. Press the z to toggle Edit or Delete and
then use the T or S keys to select a VLAN and press e. The
DEFAULT_VLAN cannot be deleted from the switch.
VLAN Name: These are the names of existing port-based VLANs.
Ports: Total number of member ports in the specified VLAN.
