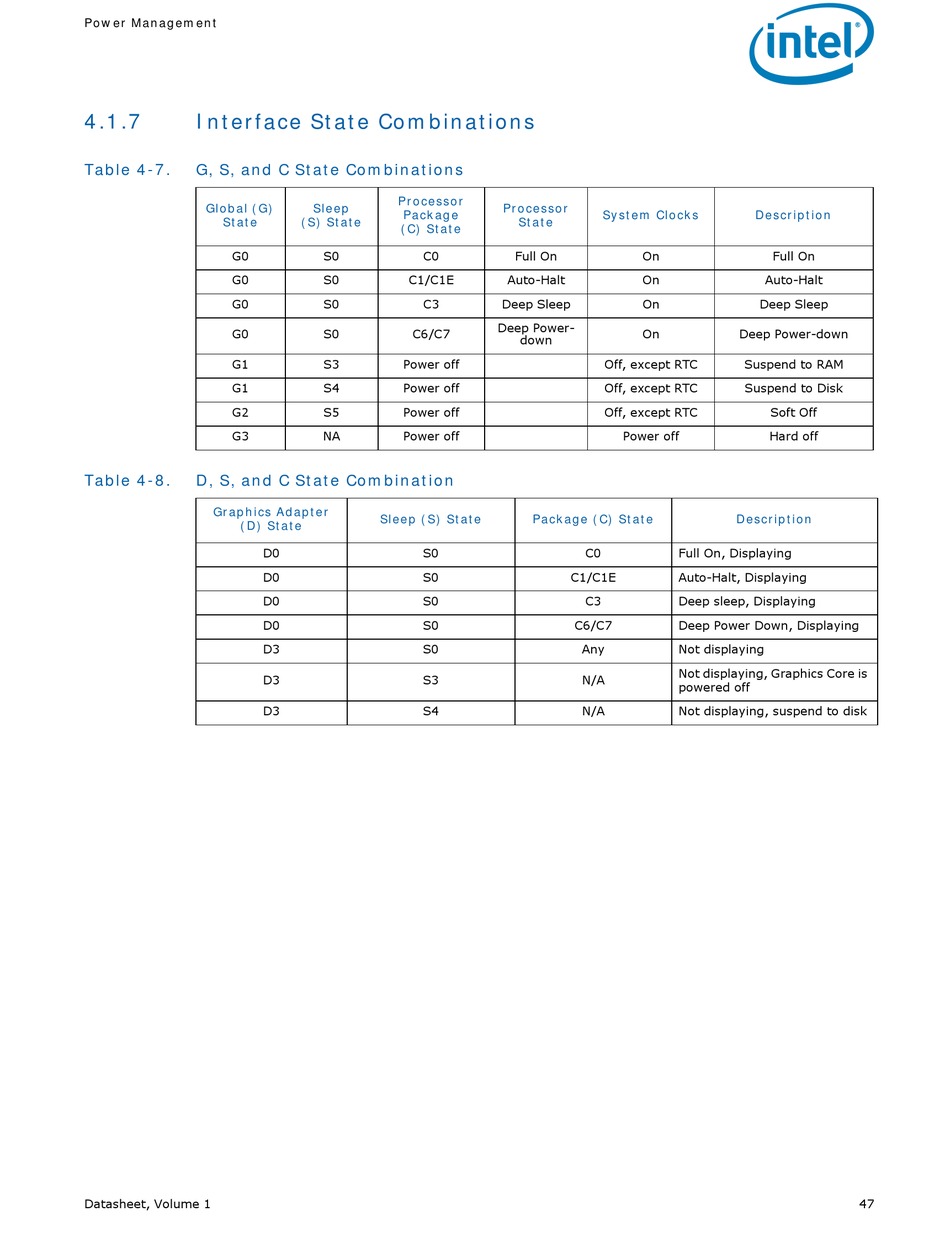

Interface State Combinations; G, S, And C State Combinations; D, S, And C State Combination - Intel 2ND GENERATION CORE PROCESSOR FAMILY MOBILE - DATASHEET VOLUME 1 01-2011 Datasheet

Power Management
4.1.7

Interface State Combinations

Table 4-7.

G, S, and C State Combinations

Global (G)
State
G0
G0
G0
G0
G1
G1
G2
G3
Table 4-8.

D, S, and C State Combination

Graphics Adapter
(D) State
Datasheet, Volume 1
Processor
Sleep
Package
(S) State
(C) State
S0 C0
S0 C1/C1E
S0 C3
S0 C6/C7
S3 Power off
S4 Power off
S5 Power off
NA Power off
Sleep (S) State
D0 S0
D0 S0
D0 S0
D0 S0
D3 S0
D3 S3
D3 S4
Processor
System Clocks
State
Full On On
Auto-Halt On
Deep Sleep On
Deep Power-
On
down
Off, except RTC
Off, except RTC
Off, except RTC
Power off
Package (C) State
C0
C1/C1E
C3
C6/C7
Any
N/A
N/A
Description
Full On
Auto-Halt
Deep Sleep
Deep Power-down
Suspend to RAM
Suspend to Disk
Soft Off
Hard off
Description
Full On, Displaying
Auto-Halt, Displaying
Deep sleep, Displaying
Deep Power Down, Displaying
Not displaying
Not displaying, Graphics Core is
powered off
Not displaying, suspend to disk
47
