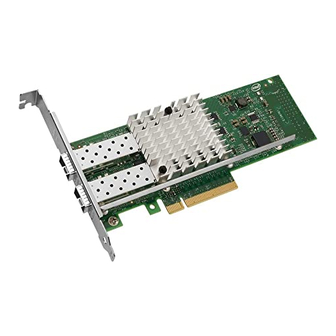

Intel XL710-Q2 User Manual
  1. Manuals
  2. Brands
  3. Intel Manuals
  4. Computer Hardware
  5. XL710-Q2
  6. User manual

Intel XL710-Q2 User Manual

Ethernet adapters and devices. x520 series
Hide thumbs Also See for XL710-Q2:
Table of Contents

Advertisement

Quick Links

See also: User Manual
®
Intel
Ethernet Adapters and Devices
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XL710-Q2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intel XL710-Q2

Summary of Contents for Intel XL710-Q2

  • Page 1 ® Intel Ethernet Adapters and Devices User Guide...

  • Page 2: Installing The Network Adapter

    Gen3 x8 slot. Installing it in a shorter slot, or a Gen2 or Gen1 slot, will limit the throughput of the adapter. Some older Intel(R) Ethernet Adapters do not have full software support for the most recent versions of Microsoft Windows*. Many older Intel Ethernet Adapters have base drivers supplied by Microsoft Windows.

  • Page 3: Hardware Compatibility

    The PRO/1000 MT Quad Port Server adapter requires a 3.3 volt only slot. It cannot be installed in a 5.0 volt or universal slot. The Intel® 10 Gigabit AT Server Adapter will only fit into x8 or larger PCI Express slots. Some systems have physical x8 PCI Express slots that actu- ally support lower speeds.
  • Page 4 Supported Operating Systems for Itanium-based Systems Linux, v2.x kernel and higher, except v2.6 Some older Intel(R) Ethernet Adapters do not have full software support for the most recent versions of Microsoft Windows*. Many older Intel Ethernet Adapters have base drivers supplied by Microsoft Windows.

  • Page 5: Hardware Installation

    Hardware Installation Attaching the Low Profile Bracket (Optional) Some adapter models come with a small bracket in the product package, to be used in a low profile slot. If you need to install the adapter in a low-profile slot, follow these instructions. 1.

  • Page 6: Installing The Adapter

    4. Slide the low profile bracket onto the adapter. 5. Attach the low profile bracket to the adapter using the screws you removed in step 2. 6. Carefully tighten the screws until they are seated. Do not over tighten. You may re-attach the standard sized bracket in the future if necessary. Installing the Adapter Selecting the Correct Slot PCI-Express Adapters...
  • Page 7 NOTE: The Intel® 10 Gigabit AT Server Adapter will only fit into x8 or larger PCI Express slots. Some systems have physical x8 PCI Express slots that actually support lower speeds. Please check your system manual to identify the slot.

  • Page 8: Attaching Cables

    Attaching Cables Intel® Gigabit and 10 Gigabit Network Adapters using copper connections automatically accommodate either MDI or MDI-X connections. The auto-MDI-X feature of Intel Gigabit Network adapters allows you to directly connect two adapters without using a cross-over cable. To ensure compliance with CISPR 24 and the EU's EN55024, Intel® 10 Gigabit Server Adapters and Connections should be used only with CAT 6a shielded cables that are properly terminated according to the recommendations in EN50174-2.
  • Page 9 Insert the twisted pair, RJ45 network cable as shown. Physical cabling characteristics for the Intel® CX4 Dual Port Server Adapter must meet IEEE Std 802.3ak, Clause 54 specifications. The required cable connector is an MDI latch-type receptacle, as defined by IEC 61076-3-113.

  • Page 10: Fiber Optic Cabling

    Fiber Optic Cabling Remove and save the fiber optic connector cover. Insert a fiber optic cable into the ports on the network adapter bracket as shown. Most connectors and ports are keyed for proper orientation. If the cable you are using is not keyed, check to be sure the connector is oriented properly (transmit port connected to receive port on the link partner, and vice versa).
  • Page 11 Single-port fiber adapter with SC connector Connecting Fiber Optic LC Cables Laser type: 850 nanometer wavelength (not visible). SX Cabling: Multi-mode fiber with 50 micron core diameter. Maximum length is 550 meters. Multi-mode fiber with 62.5 micron core diameter. Maximum length is 275 meters Connector type: LC.
  • Page 12 X710 and XL710-Based Adapters NOTES: If your Intel(R) Network Adapter came with Intel SFP+ optics, or is an Intel(R) Ethernet Converged Network Adapter X710 type of adapter, then it only supports Intel optics and/or the direct attach cables listed below.
  • Page 13 XL710) 82599-Based Adapters NOTES: If your 82599-based Intel® Network Adapter came with Intel optics, or is an Intel® Eth- ernet Server Adapter X520-2, then it only supports Intel optics and/or the direct attach cables listed below. 82599-Based adapters support all passive and active limiting direct attach cables that com- ply with SFF-8431 v4.1 and SFF-8472 v10.4 specifications.
  • Page 14 Intel® Network Adapters that support removable optical modules only support their original module type (i.e., the Intel® 10 Gigabit SR Dual Port Express Module only supports SR optical modules). If you plug in a different type of module, the driver will not load.

  • Page 15: Pci Hot Plug Support

    PARTY SPECIFICATIONS AND POTENTIAL COMPATIBILITY, AND ARE NOT RECOMMENDATIONS OR ENDORSEMENT OR SPONSORSHIP OF ANY THIRD PARTY'S PRODUCT BY INTEL. INTEL IS NOT ENDORSING OR PROMOTING PRODUCTS MADE BY ANY THIRD PARTY AND THE THIRD PARTY REFERENCE IS PROVIDED ONLY TO SHARE INFORMATION REGARDING CERTAIN OPTIC MODULES AND CABLES WITH THE ABOVE SPECIFICATIONS.
  • Page 16 PCI Hot Plug Support for Microsoft* Windows* Operating Systems Intel® network adapters are enabled for use in selected servers equipped with PCI Hot Plug support and running Microsoft* Windows* operating systems. For more information on setting up and using PCI Hot Plug support in your server, see your hardware and/or Hot Plug support documentation for details.

  • Page 17: Advanced Features

    Microsoft* Windows* operating systems, and at least 22 bytes larger for all other operating sys- tems. The Intel® PRO/1000 PL Network Connection supports Jumbo Frames in Microsoft* Windows* oper- ating systems only when Intel® PROSet for Windows Device Manager is installed.
  • Page 18 Jumbo Frame size differently. Some devices include the header information in the frame size while others do not. Intel adapters do not include header information in the frame size. When configuring Jumbo Frames on a switch, set the frame size four bytes higher for CRC, plus four bytes if you are using VLANs or QoS packet tagging.

  • Page 19: Supported Adapters

    If a team is bound to a Hyper-V virtual NIC, you cannot change the Primary or Secondary adapter. Intel adapters that do not support Intel PROSet may still be included in a team. However, they are restricted in the same way non-Intel adapters are. See Multi-Vendor Teaming more information.
  • Page 20 Intel ANS teaming and VLANs are not compatible with Microsoft's LBFO teams. Intel® PROSet will block a member of an LBFO team from being added to an Intel ANS team or VLAN. You should not add a port that is already part of an Intel ANS team or VLAN to an LBFO team, as this may cause system instability.
  • Page 21 If an Intel AMT enabled device is part of a team, it must be designated as the primary adapter for the team.

  • Page 22: Failover And Failback

    Preferred Primary/Secondary adapters: You can specify a preferred adapter in Intel PROSet. Under normal conditions, the Primary adapter handles all non-TCP/IP traffic. The Secondary adapter will receive fallback traffic if the primary fails. If the Preferred Primary adapter fails, but is later restored to an active status, control is automatically switched back to the Preferred Primary adapter.
  • Page 23 You cannot use an Intel AMT enabled adapter in a VMLB team. Static Link Aggregation Static Link Aggregation (SLA) is a performance technology developed by Cisco to increase throughput between switches.
  • Page 24 If needed, change your speed or duplex setting before you link the adapter to the switch. Although you can change speed and duplex settings after the team is created, Intel recommends you disconnect the cables until settings are in effect. In some cases, switches or servers might not appropriately recognize modified speed or duplex settings if settings are changed when there is an active link to the network.

  • Page 25: Virtual Lans

    VLANs after the switch has created an active aggregator affects VLAN functionality. Multi-Vendor Teaming MVT allows teaming with a combination of Intel adapters that support Intel PROSet, Intel adapters that do not support Intel PROSet, and non-Intel adapters. This feature is currently available under Windows Server. All adapters that appear in the Intel PROSet teaming wizard can be included in a team.

  • Page 26: Power Management

    Intel® PROSet will block a member of an LBFO team from being added to an Intel ANS VLAN. You should not add a port that is already part of an Intel ANS VLAN to an LBFO team, as this may cause system instability.

  • Page 27: Power Options

    NOTE: If your system has a Manageability Engine, the Link LED may stay lit even if WoL is disabled. Power Options The Intel PROSet Power Management tab includes several settings that control the adapter's power consumption. For example, you can set the adapter to reduce its power consumption if the cable is disconnected.
  • Page 28 Intel® Auto Connect Battery Saver The Intel® Auto Connect Battery Saver (ACBS) feature turns off the adapter when link is down or the network cable is disconnected. After a timeout period, the adapter will power off. When the network cable is reconnected and link is restored, the NIC powers up and functionality is fully restored.

  • Page 29: Quality Of Service

    Advanced tab in Intel® PROSet. For other versions of the Windows operating system, tagging is enabled using the "Priority/VLAN Tagging" setting on the Advanced tab in Intel® PROSet. Once QoS is enabled in Intel PROSet, you can specify levels of priority based on IEEE 802.1p/802.1Q frame tagging.
  • Page 30 (for example, setting LAA on the interface, changing the primary adapter on a team, etc.), will cause the VNIC to lose connectivity. In order to prevent this loss of connectivity, Intel® PROSet will not allow you to change settings that change the MAC address.
  • Page 31 NOTE: Support for the Intel PROSet command line utilities (prosetcl.exe and crashdmp.exe) is being removed. This functionality will be replaced by the Intel Netcmdlets for Microsoft* Windows PowerShell*. Please transition all of your scripts and processes to use the Intel Netcmdlets for Microsoft Windows PowerShell.
  • Page 32 Device Manager property sheet, under Virtualization on the Advanced Tab. Each Intel® Ethernet Adapter has a pool of virtual ports that are split between the various features, such as VMQ Offloading, SR-IOV, Data Center Bridging (DCB), and Fibre Channel over Ethernet (FCoE). Increasing the number of virtual ports used for one feature decreases the number available for other features.

  • Page 33: Intel ® Active Management Technology

    Even when the client computer is powered down or has a non-operational OS, Intel AMT enables you to access and manage the system over the network. You can easily get accurate platform information, and can perform remote updating, diagnostics, debugging, and repair of a system, regardless of the state of the OS and the power state of the system.

  • Page 34: Direct Cache Access (Dca)

    Low Latency Interrupts (LLI) The LLI feature enables the network device to by-pass the configured interrupt moderation scheme based on the type of data being received. It configures which arriving TCP packets trigger an immediate interrupt, enabling the system to handle the packet more quickly. Reduced data latency enables some applications to gain faster access to network data.

  • Page 35: Receive Side Scaling

    LAN RSS applies to a particular TCP connection. Note the following: RSS has no effect if your system has only one processing unit. RSS must be enabled for Intel® I/O Acceleration Technology to function. RSS is not supported on some adapters configured to use Virtual Machine Queues (VMQ). On these adapters VMQ will take precedence over RSS.
  • Page 36 A Platform is known to have two physical sockets, each socket processor providing 8 core CPUs (16 when hyper threading is enabled).  You have also installed a dual port Intel NIC with FCoE enabled. By default 8 FCoE queues will be allocated per NIC port.  Also, by default the first (non-hyper thread) CPU cores of the first processor will be assigned affinity to these queues, resulting in the allocation model pictured below. ...
  • Page 37 Socket Queue to CPU Allocation Using the performance tuning options, you can direct association of the FCoE queues for the second port to a different non-competing set of CPU cores.  The following settings would direct SW to use CPUs on the other processor socket: FCoE NUMA Node Count = 1: ...
  • Page 38 ESB that provides PCI bus and memory connectivity. The second is a more recent architecture in which multiple CPU processors are interconnected via QPI, and each processor itself supports integrated MCH and PCI connectivity directly. There is a perceived advantage in keeping the allocation of port objects, such as queues, as close as possible to the NUMA node or collection of CPUs where it would most likely be accessed. ...

  • Page 39: Thermal Monitoring

    VLANs. Using the Intel SNMP Agent Before you install the Intel SNMP Agent on a computer, you must install SNMP on the computer. See your operating system documentation for more information. To use the Intel SNMP Agent with an SNMP management application, you must first compile the Intel...
  • Page 40 On Intel devices that support IPSec offloading features, you can configure those features through Intel® PROSet. For more information, select Intel PROSet in the Table of Contents (left pane) of this window. NOTE: Large Send Offload (LSO) and IPSec Offload are not compatible. LSO is automatically disabled when IPSec Offload is enabled.

  • Page 41: Before You Begin

    Intel software CD (or respective download package). If you are installing a driver in a computer with existing Intel adapters, be sure to update all the adapters (and additional adapter ports, if applicable) with the same Intel driver and sup- plemental software.

  • Page 42: Installing Intel Proset For Windows Device Manager

    Installing Intel PROSet for Windows Device Manager Intel PROSet for Windows Device Manager is installed from the Product CD with the same process used to install drivers. You can select Intel PROSet for Windows Device Manager and Advanced Network Services from the Install Options dialog.
  • Page 43 5. Click OK. 10 Gigabit Network Device Considerations Intel® 10 Gigabit adapters that support 1 gigabit speed allow you to configure the Speed setting. If this option is not present, your adapter only runs at its native speed. If the adapter cannot establish link with the gigabit link partner using auto-negotiation, set the adapter to 1 Gbps Full duplex.
  • Page 44 You must set this mode manually. Performance Profiles Performance profiles allow you to quickly optimize the performance of your Intel® Ethernet Adapter. Selecting a performance profile will automatically adjust some Advanced Settings to their optimum setting for the selected application.

  • Page 45: Installation Methods

    The IntelNetCmdlets module for Windows PowerShell contains several cmdlets that allow you to configure and manage the Intel® Ethernet Adapters and devices present in your system. For a complete list of these cmdlets and their descriptions, type get-help IntelNetCmdlets at the Windows PowerShell prompt. For detailed usage information for each cmdlet, type get-help <cmdlet_name>...
  • Page 46 Intel PROSet. Installing with DxSetup.exe DxSetup.exe is a setup utility used for installing Intel PROSet. It detects the system language, searches for the appropriate transform file in the same folder, and then launches PROSETDX.msi in the language specific to the operating system.
  • Page 47 NOTE: BD should only be set to 0 if the Base Drivers have already been installed prior to running DxSetup.exe DMIX "0", do not install Intel PROSet. "1", install Intel PROSet (default). The DMIX property requires BD=1. "0", do not install ANS. "1", install ANS (default). The ANS property requires DMIX=1. FCOE "0", do not install Fibre Channel Over Ethernet (FCoE) using DCB (default).
  • Page 48 If you specify a path for the log file, the path must exist. If you do not specify a complete path, the install log will be created in the current directory. You do not need to specify default values. To install the base drivers, Intel PROSet, and ANS, the following examples are equivalent: DxSetup.exe...
  • Page 49 Other information NOTES: If you install drivers on a system based on a server chipset and BIOS that are Intel I/OAT capable, the /s switch (silent install) forces a reboot without the /r switch. If you do not want the system to reboot, use the /nr switch.
  • Page 50 Uninstalling Drivers and Intel PROSet Intel recommends you use Add/Remove Programs to uninstall Intel PROSet and the base drivers. If your operating system does not have a GUI installed, you can use DxSetup.exe to uninstall the base drivers and Intel PROSet.
  • Page 51 The Restore operation requires the same OS as when the configuration was Saved. Intel® PROSet for Windows* Device Manager must be installed for the SaveRestore.ps1 script to run. For systems running a 64-bit OS, be sure to run the 64-bit version of Windows PowerShell, not the 32-bit (x86) version, when running the SaveRestore.ps1 script.
  • Page 52 1. Open a Windows PowerShell Prompt. 2. Navigate to the directory where SaveRestore.ps1 is located (generally c:\Program Files\Intel\DMIX). 3. Type the following: SaveRestore.ps1 –Action Save –ConfigPath e:\settings.txt Restore Example To restore the adapter settings from a file on removable media, do the following: 1.
  • Page 53 WBEM). WMI is a data-independent pipeline between the data consumer and the data provider that makes no assumptions about the format of the data. A guide is available on this distribution, which contains detailed information on the Intel Network Adapters WMI Provider, also referred to as Network Configuration Services (NCS2) WMI Providers. This guide is located in \APPS\WMI\DOCS.

  • Page 54: Installation

    The Intel Network Adapters WMI Provider supports all Intel PRO/100, Gigabit, and 10GbE network adapters. Installation The Intel Network Adapters WMI Provider are installed as part of Intel® PROSet for Windows Device Manager software installation. See the Installing Intel PROSet for Windows Device Manager section for more information on how to install Intel PROSet for Windows Device Manager.
  • Page 55 Intel Network Drivers for DOS The NDIS2 (DOS) driver is provided solely for the purpose of loading other operating systems -- for example, during RIS or unattended installations. It is not intended as a high-performance driver. You can find adapter drivers, PROTOCOL.INI files, and NET.CFG files in the PRO100\DOS or PRO1000\DOS directory on the Product CD or download folder.
  • Page 56 DRIVERNAME This is the only parameter required for all configurations. This parameter is essentially an "instance ID". Each instance of the driver must create a unique instance name, both to satisfy DOS driver requirements, and to make it possible to find the parameters for the instance in the PROTOCOL.INI file. When the driver initializes, it tries to find previously loaded instances of itself.
  • Page 57 Syntax: SLOT = [0x0..0x1FFF] SLOT = [0..8191] Examples: SLOT = 0x1C SLOT = 28 Default: The driver will Auto-Configure if possible. Normal Beha- The driver uses the value of the parameter to decide which adapter to control. vior: Possible Errors: If only one adapter is installed, and the value does not correctly indicate the adapter slot: A message indicates that the value does not match the actual configuration...
  • Page 58 Syntax: ADVERTISE = [ 1 | 2 | 4 | 8 | 0x20 | 0x2F]: 0x01 = 10 Half, 0x02 = 10 Full, 0x04 = 100 Half, 0x08 = 100 Full, 0x20 = 1000 Full, 0x2F = all rates Example: ADVERTISE = 1 Default: 0x2F (all rates are supported) Normal Beha-...
  • Page 59 Syntax: UseLastSlot = [ 0 | any other value ] Example: USELASTSLOT = 1 Default: Normal Behavior: 0 = Disabled, any other value = Enabled Possible Errors: None TXLOOPCOUNT This parameter controls the number of times the transmit routine loops while waiting for a free transmit buffer. This parameter can affect Transmit performance.

  • Page 60: Troubleshooting

    Insert the adapter in another slot. Check for conflicting or incompatible hardware devices and settings. Replace the adapter. Check the Intel support website for possible documented issues. Select your adapter from the adapter family list. Check the Frequently Asked questions section.
  • Page 61 The device does not connect at the expec- When Gigabit Master/Slave mode is forced to "master" ted speed. mode on both the Intel adapter and its link partner, the link speed obtained by the Intel adapter may be lower than expected.

  • Page 62: Multiple Adapters

    Server Adapter is on (red) Contact customer support for further instructions. Multiple Adapters When configuring a multi-adapter environment, you must upgrade all Intel adapters in the computer to the latest software. If the computer has trouble detecting all adapters, consider the following: If you enable Wake on LAN* (WoL) on more than two adapters, the Wake on LAN feature may over- draw your system’s auxiliary power supply, resulting in the inability to boot the system and other unpre-...
  • Page 63 Adapters with Intel Boot Agent enabled will require a portion of the limited start up memory for each adapter enabled. Disable the service on adapters that do not need to boot Pre-Boot Execution Envir- onment (PXE). PCI / PCI-X / PCI Express Configuration If the adapter is not recognized by your OS or if it does not work you may need to change some BIOS settings.
  • Page 64 If you are upgrading a Microsoft Windows operating system and you ® tems, Intel PROSet is no have Intel PROSet software installed, it will be deleted in the process. longer available You will need to reinstall Intel PROSet. Terminal Server support When using Terminal Server, make sure only one session of Intel PROSet is open at any one time.
  • Page 65 DOS Troubleshooting Make sure you’re using the correct and most recent drivers for this adapter. If you’re replacing an existing adapter, make sure the LINK statement in your NET.CFG is correct for the new adapter. Verify that the frame type in your NET.CFG file matches your network. Test the adapter by running the DIAGS.EXE diagnostics program.

  • Page 66: Indicator Lights

    Indicator Lights The Intel Server and Desktop network adapters feature indicator lights on the adapter backplate that serve to indicate activity and the status of the adapter board. The following tables define the meaning for the possible states of the indicator lights for each adapter board.
  • Page 67 Single Port QSFP+ Adapters The Intel® Ethernet Converged Network Adapter XL710-Q1 has the following indicator lights: Label Indication Meaning Green Linked at 40Gb Yellow Linked at 1/10Gb  ACT/LNK Blinking On/OFF Actively transmitting or receiving data No link. The Intel® Ethernet Converged Network Adapter X520-Q1 has the following indicator lights:...
  • Page 68 Yellow Linked at 1Gb Blinking On/OFF Actively transmitting or receiving data No link. The Intel® 10 Gigabit AF DA Dual Port Server Adapter and Intel® Ethernet Server Adapter X520 series of adapters have the following indicator lights: Label Indication Meaning Not linked to the LAN.
  • Page 69 Quad Port SFP/SFP+ Adapters The Intel® Ethernet Converged Network Adapter X710-4 has the following indicator lights: Label Indication Meaning Green Linked at 10Gb Yellow Linked at 1Gb Blinking On/OFF Actively transmitting or receiving data No link. The Intel® Ethernet Converged Network Adapter X520-4 has the following indicator lights:...
  • Page 70 Linked to the LAN. No link.  Activity Blinking On/Off Actively transmitting or receiving data. The Intel® 10 Gigabit CX4 Dual Port Server Adapter has the following indicator lights: Label Indication Meaning The adapter is connected to a valid link partner.
  • Page 71 Identity. Use the "Identify Adapter" button in Intel Orange PROSet to control blinking. See Intel PROSet Help flashing for more information. The Intel® PRO/1000 MT and GT Dual Port Server Adapters have the following indicator lights for each port: Label Indication Meaning Green on The port is connected to a valid link partner.
  • Page 72 The adapter is not sending or receiving network data.  100 Operating at 100 Mbps. Operating at 10 Mbps. The Intel® PRO/100 S Dual Port Server adapter (with 64 bit PCI Connector) has the following indicator lights: Label Indication Meaning  ACT/LNK...
  • Page 73 Yellow Linked at 1Gb No link. Activity Blinking On/Off Actively transmitting or receiving data. The Intel® 10 Gigabit AT Server Adapter has the following indicator lights: Label Indication Meaning Green on The adapter is connected to a valid link partner.
  • Page 74 The Intel® PRO/1000 PT Server Adapter has the following indicator lights: Label Indication Meaning Green on The adapter is connected to a valid link partner. Green  ACT/LNK Data activity flashing No link. 10 Mbps Green 100 Mbps 10=OFF Orange 1000 Mbps...
  • Page 75 The Intel® Gigabit CT2, Gigabit CT, PRO/1000 T, and PRO/1000 MT Desktop Adapters have the fol- lowing indicator lights: Label Indication Meaning Green on The adapter is connected to a valid link partner. Green Data activity flashing  ACT/LNK No link.
  • Page 76 10 Mbps 10/100/1000 Green 100 Mbps Yellow 1000 Mbps The Intel® PRO/100+, PRO/100 M, PRO/100 S , and PRO/100 VE and VM Desktop adapters and Net- work Connections have the following indicator lights: Label Indication Meaning  ACT/LNK The adapter and switch are receiving power;...
  • Page 77 Identity. Use the "Identify Adapter" button in Intel® Orange PROSet to control blinking. See Intel PROSet Help flashing for more information. The Intel® PRO/1000 MT, GT and PT Quad Port Server Adapters have the following indicator lights for each port: Label Indication Meaning Green on The port is connected to a valid link partner.
  • Page 78  ACT/LNK Blinking PROSet to control blinking. See Intel PROSet Help for more information. No link. The Intel® PRO/1000 MF, PF, and Gigabit EF Dual Port Server Adapters have the following indicator lights for each port: Label Indication Meaning The adapter is connected to a valid link partner.
  • Page 79 Single Port Fiber Adapters The Intel® 10 Gigabit XF SR and LR Server Adapters has the following indicator lights: Label Indication Meaning The adapter is connected to a valid link partner. Adapter is actively passing traffic. Identity. Use the "Identify Adapter" button in Intel  ACT/LNK...
  • Page 80 The Intel® PRO/1000 XF Server Adapter has the following indicator lights: Label Indication Meaning The adapter is connected to a valid link partner. No link. Data is being transmitted or received. No data activity. Identity. Use the "Identify Adapter" button in Intel Flashing PROSet to control blinking.
  • Page 81 Quad Port Fiber Adapters The Intel® Ethernet Server Adapter I340-F4 has the following indicator lights: Label Indication Meaning The adapter is connected to a valid link part- Green on ner.  GRN=1G Green flash- Data activity No link.
  • Page 82 The Intel® PRO/1000 PF Quad Port Server Adapter has the following indicator lights: Label Indication Meaning Green on The adapter is connected to a valid link partner.  ACT/LNK Green flashing Data activity No link.

  • Page 83: Regulatory Compliance Statements

    Intel® Ethernet SFP+ LR Optics RMN FTLX1471 Intel® Ethernet Converged Network Adapter X520-4 Intel® Ethernet Converged Network Adapter X520-Q1 Intel® 10 Gigabit AF DA Dual Port Server Adapter Intel® 10 Gigabit CX4 Dual Port Server Adapter Intel® 10 Gigabit XF SR Dual Port Server Adapter Intel®...

  • Page 84: Safety Compliance

    Intel® PRO/1000 PT Dual Port Server Adapter Intel® PRO/1000 GT Quad Port Server Adapter Intel® PRO/1000 PT Quad Port Server Adapter Intel® PRO/1000 PT Quad Port LP Server Adapter Intel® PRO/1000 GT Desktop Adapter Intel® PRO/1000 PT Desktop Adapter Intel® PRO/1000 MF Server Adapter Intel®...

  • Page 85: Regulatory Compliance Markings

    EN55022: 2010 – Radiated & Conducted Emissions (European Union) EN55024: 2010 +A1:2001+A2:2003 – Immunity (European Union) EMC Directive 2004/108/EC VCCI (Class A)– Radiated & Conducted Emissions (Japan) CNS13438 – Radiated & Conducted Emissions (Taiwan) AS/NZS CISPR 22 – Radiated & Conducted Emissions (Australia/New Zealand) NRRA No.

  • Page 86: Vcci Class A Statement

    CAUTION: If the device is changed or modified without permission from Intel, the user may void his or her authority to operate the equipment.

  • Page 87: Fcc Class B User Information

    Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. CAUTION: If the device is changed or modified without permission from Intel, the user may void his or her authority to operate the equipment.
  • Page 88 VCCI Class B Statement (Japan) KCC Notice Class B (Republic of Korea Only)

  • Page 89: Manufacturer Declaration

    EU WEEE Logo Manufacturer Declaration European Community Manufacturer Declaration Intel Corporation declares that the equipment described in this document is in conformance with the requirements of the European Council Directive listed below: Low Voltage Directive 2006/95/EC EMC Directive2004/108/EC RoHS Directive 2011/65/EU...
  • Page 90 WARNING: In a domestic environment, Class A products may cause radio interference, in which case the user may be required to take adequate measures. Responsible Party Intel Corporation, Mailstop JF3-446 5200 N.E. Elam Young Parkway Hillsboro, OR 97124-6497 Phone 1-800-628-8686...

  • Page 91: End-Of-Life / Product Recycling

    China RoHS Declaration Class 1 Laser Products Server adapters listed above may contain laser devices for communication use. These devices are compliant with the requirements for Class 1 Laser Products and are safe in the intended use. In normal operation the output of these laser devices does not exceed the exposure limit of the eye and cannot cause harm.

  • Page 92: Legal Disclaimers

    Software, including but not limited to use with non-Intel component products, is not licensed hereunder. 2. Subject to all of the terms and conditions of this Agreement, Intel Corporation ("Intel") grants to you a non-exclusive, non-assignable, copyright license to use the Software.
  • Page 93 Software, including but not limited to use with non-Intel component products, is not licensed hereunder. 2. Subject to all of the terms and conditions of this Agreement, Intel Corporation ("Intel") grants to you a non-exclusive, non-assignable, copyright license to use the Software.
  • Page 94 Intel. If such a defect is found, return the media to Intel for replacement or alternate delivery of the Software as Intel may select.

  • Page 95: Limited Lifetime Hardware Warranty

    Limited Lifetime Hardware Warranty Intel warrants to the original owner that the adapter product delivered in this package will be free from defects in material and workmanship. This warranty does not cover the adapter product if it is damaged in the process...

  • Page 96: Returning A Defective Product

    Intel wants you to be completely satisfied with the Intel adapter product that you have purchased. Any time within ninety (90) days of purchase, you may return your Intel adapter to the original place of purchase for a full refund of the purchase price from your dealer. Resellers and distributors, respectively, accepting returns and refunding money back to their customers may return Intel adapters to their original place of purchase.

  • Page 97: Customer Support

    Licensee or Sublicensees, and such use is entirely at the user's risk. Licensee agrees to defend, indemnify, and hold Intel harmless from and against any and all claims arising out of use of the adapter product in such applications by Licensee or Sublicensees.
