Diskette Drive Connector - NEC POWERMATE PRO150 Manual

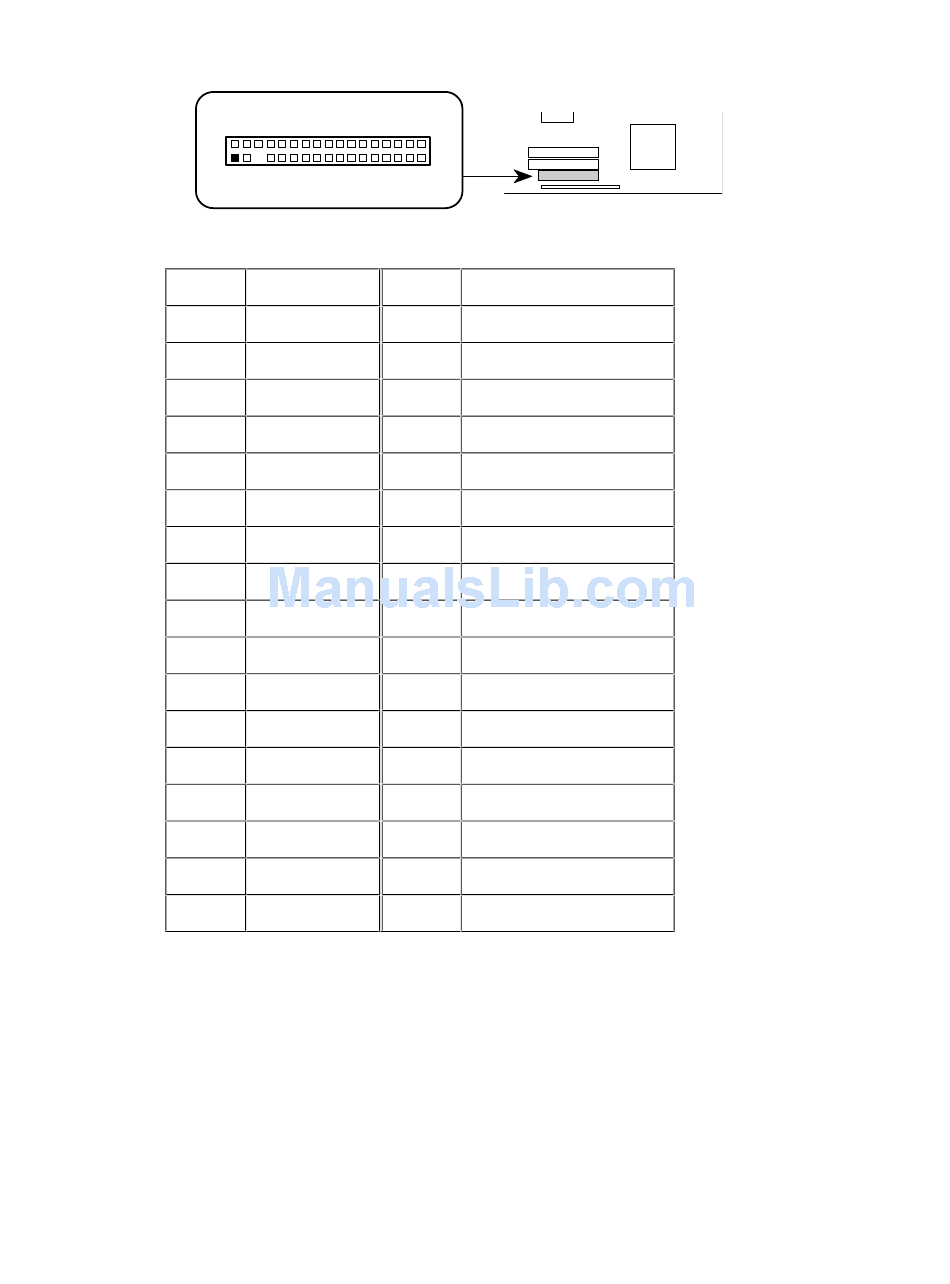

Diskette Drive Connector

2
1 5
Pin Signal Name
1 Ground
3 Ground
5 Key
7 Ground
9 Ground
11 Ground
13 Ground
15 Ground
17 MSEN1
19 Ground
21 Ground
23 Ground
25 Ground
27 MSEN0
29 Ground
31 Ground
33 Ground
PowerMate Pro150 System
34
33
Pin Signal Name
2 DENSEL
4 Reserved
6 FDEDIN
8 Index#
10 Motor Enable A#
12 Drive Select B#
14 Drive Select A#
16 Motor Enable B#
18 DIR#
20 STEP#
22 Write Data#
24 Write Gate#
26 Track 00#
28 Write Protect#
30 Read Data#
32 Side 1 Select#
34 Diskette Change#
OM04086
7-9
