Board Connectors

This section provides the pinouts for the system board connectors.
Chapter 5 shows the location of the connectors (Figure 5-1).

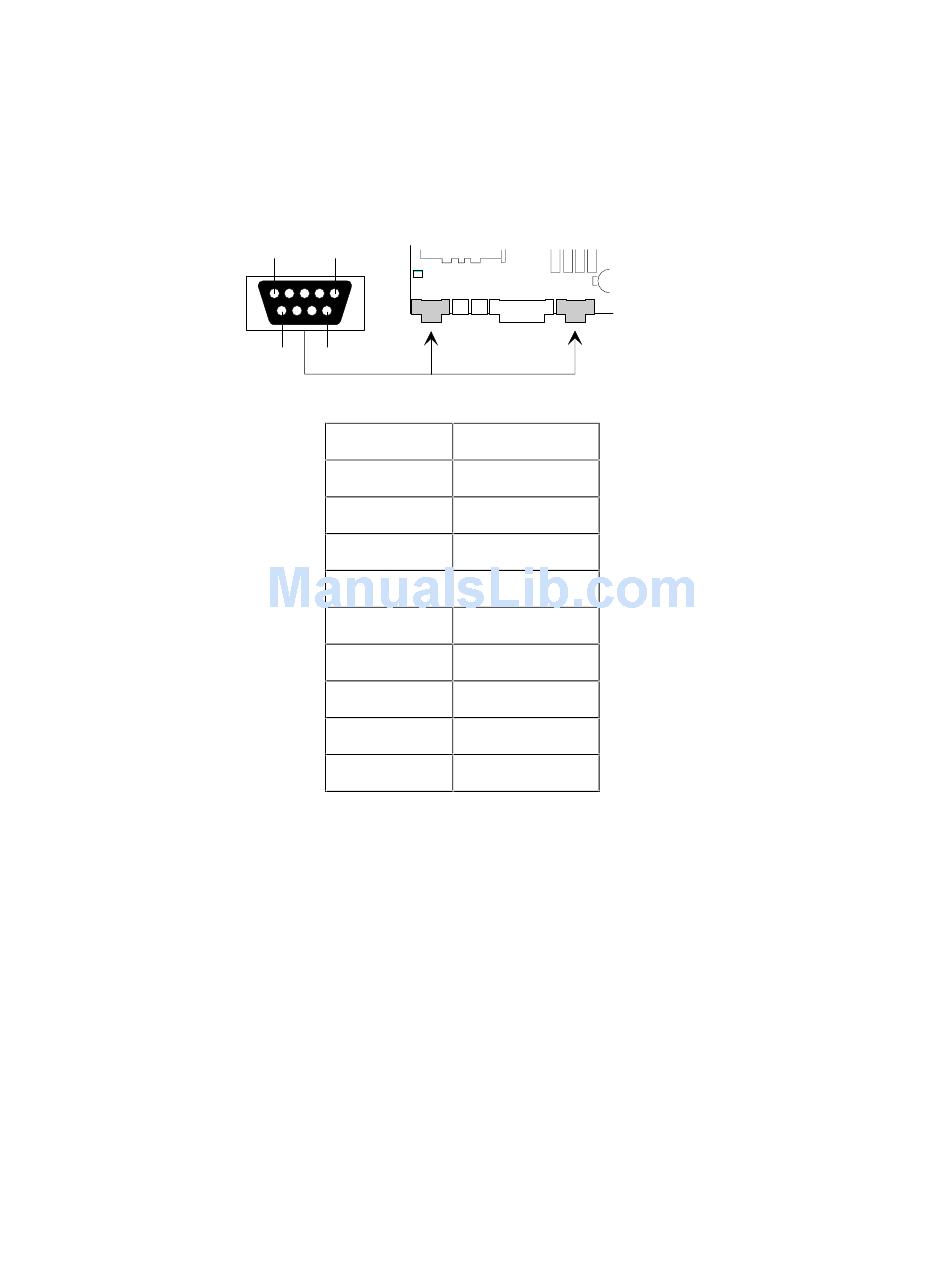

Serial Port Connectors

1
6
PowerMate Pro150 System
5
Serial Port 1
9
Pin Signal Name
1 DCD
2 Serial In#
3 Serial Out#
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
Serial Port 2
OM04083
7-3
