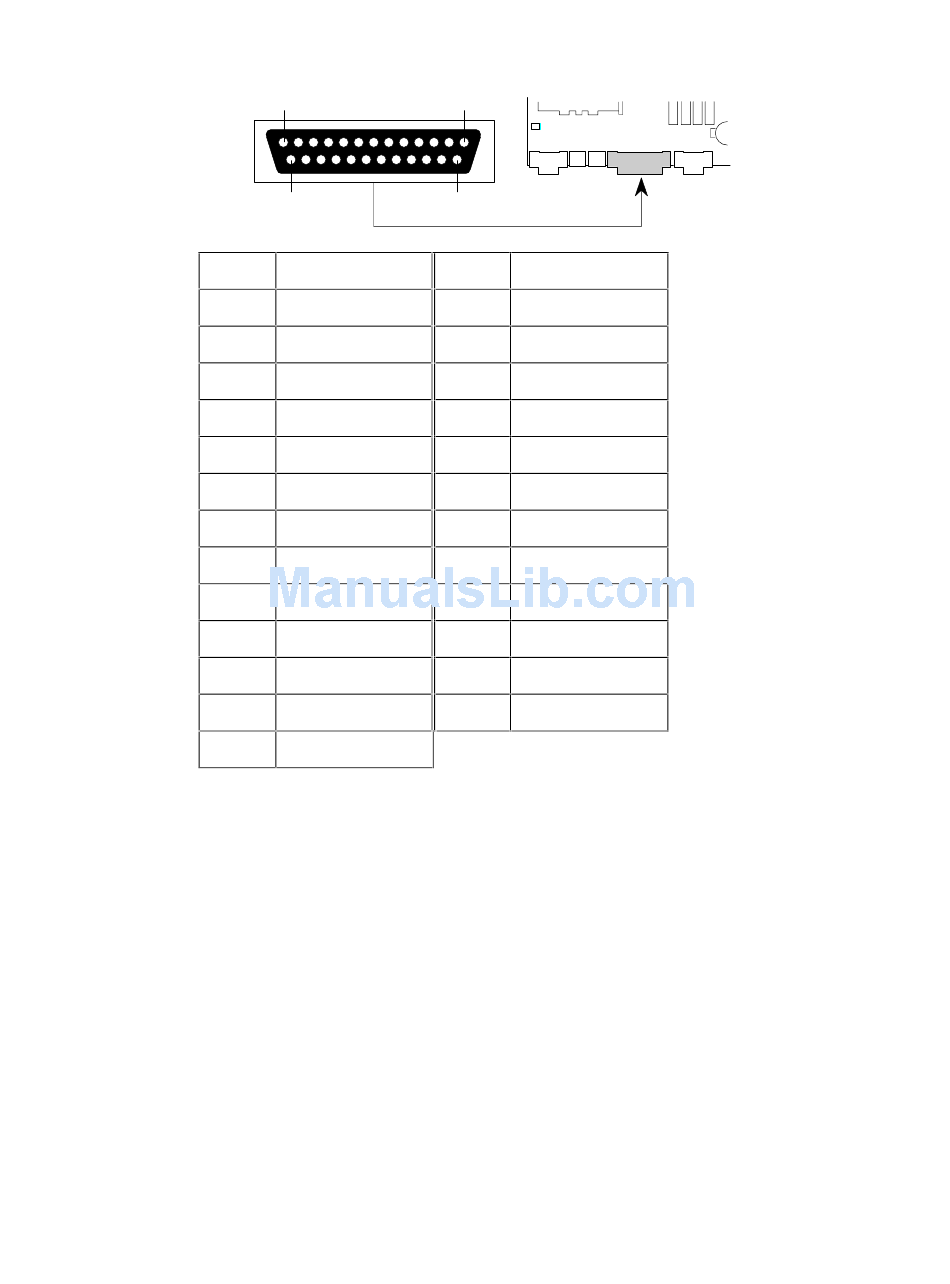

Parallel Port Connector
1
14
Pin
Signal Name
1
Strobe#
2
Data Bit 0
3
Data Bit 1
4
Data Bit 2
5
Data Bit 3
6
Data Bit 4
7
Data Bit 5
8
Data Bit 6
9
Data Bit 7
10
ACK#
11
Busy
12
Error
13
Select
7-4
13
25
Pin
Signal Name
14
Auto Feed#
15
Fault#
16
INIT#
17
SLCT IN#
18
Ground
19
Ground
20
Ground
21
Ground
22
Ground
23
Ground
24
Ground
25
Ground
OM04084
Technical Reference
