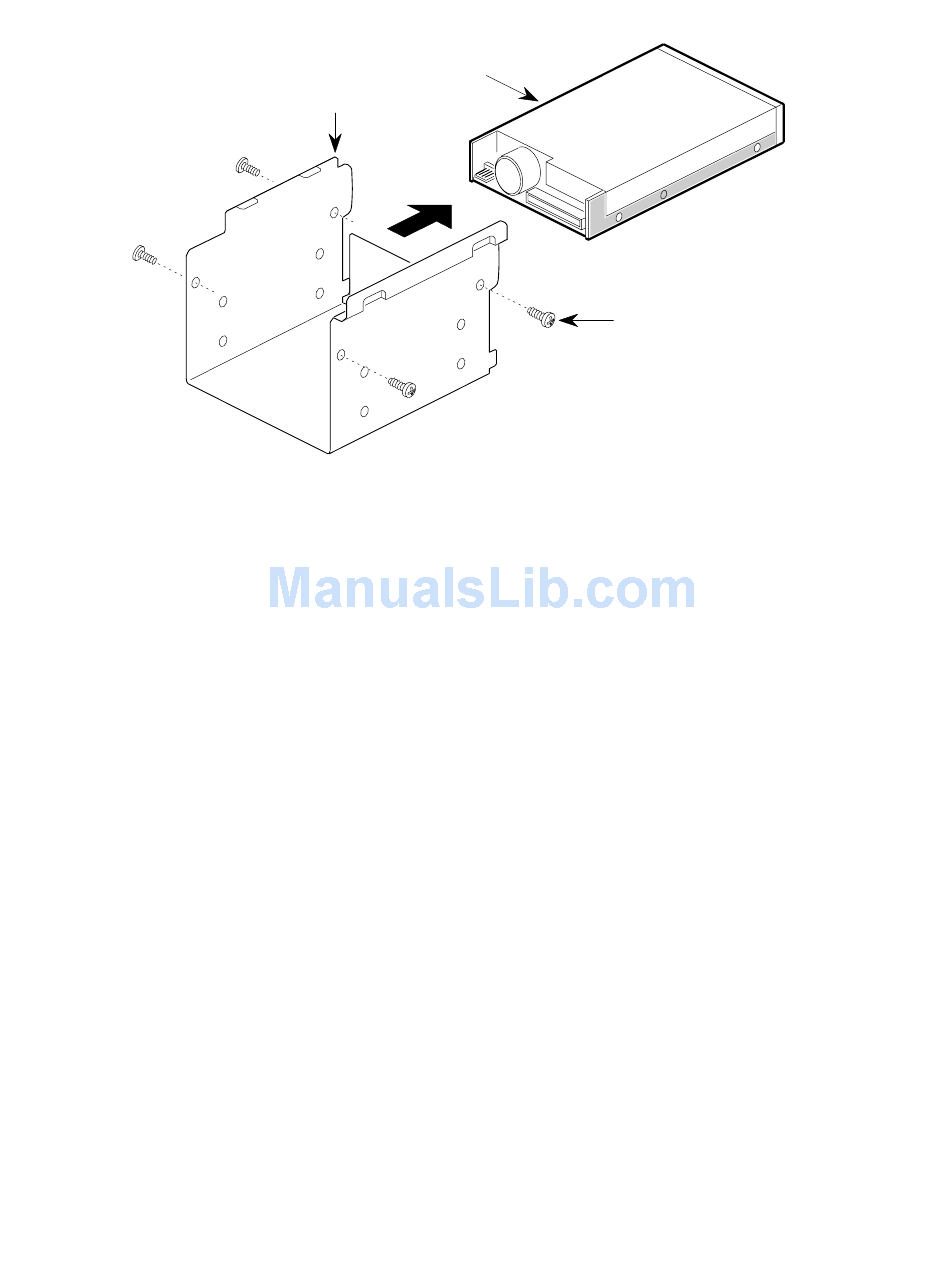

Figure 4-9. Removing the 3.5-inch Diskette Drive

Installing a 3.5-inch Diskette Drive

1. Observe the precautions in "Before You Begin."
2. Remove the 3.5-inch drive bay.
3. Remove the floppy disk drive from its protective wrapper and place it
on an antistatic surface.
4. Set any drive jumpers or switches according to the manufacturer's
instructions.
5. Slide the floppy drive into the floppy drive carrier. Line the holes on
the carrier up with the screw holes on the drive.
6. Insert and tighten four screws of the appropriate type and length (not
supplied).
7. Install the 3.5-inch drive bay.
8. Attach the power cable and the data cable to the drive.
PowerMate Pro150 System
C
A
B
OM04081
4-17
