Installing an Optional Speaker

1. Observe the precautions in "Before You Begin."
2. Remove the card guide module.
3. Insert the speaker in the location shown (Figure 4-17).
4. Install the card guide module.
5. Remove the on-board speaker jumper on the system board. See
Chapter 7 for the location of the speaker connector.
6. Attach the speaker wires to the speaker connector on the system board.
4-28
A

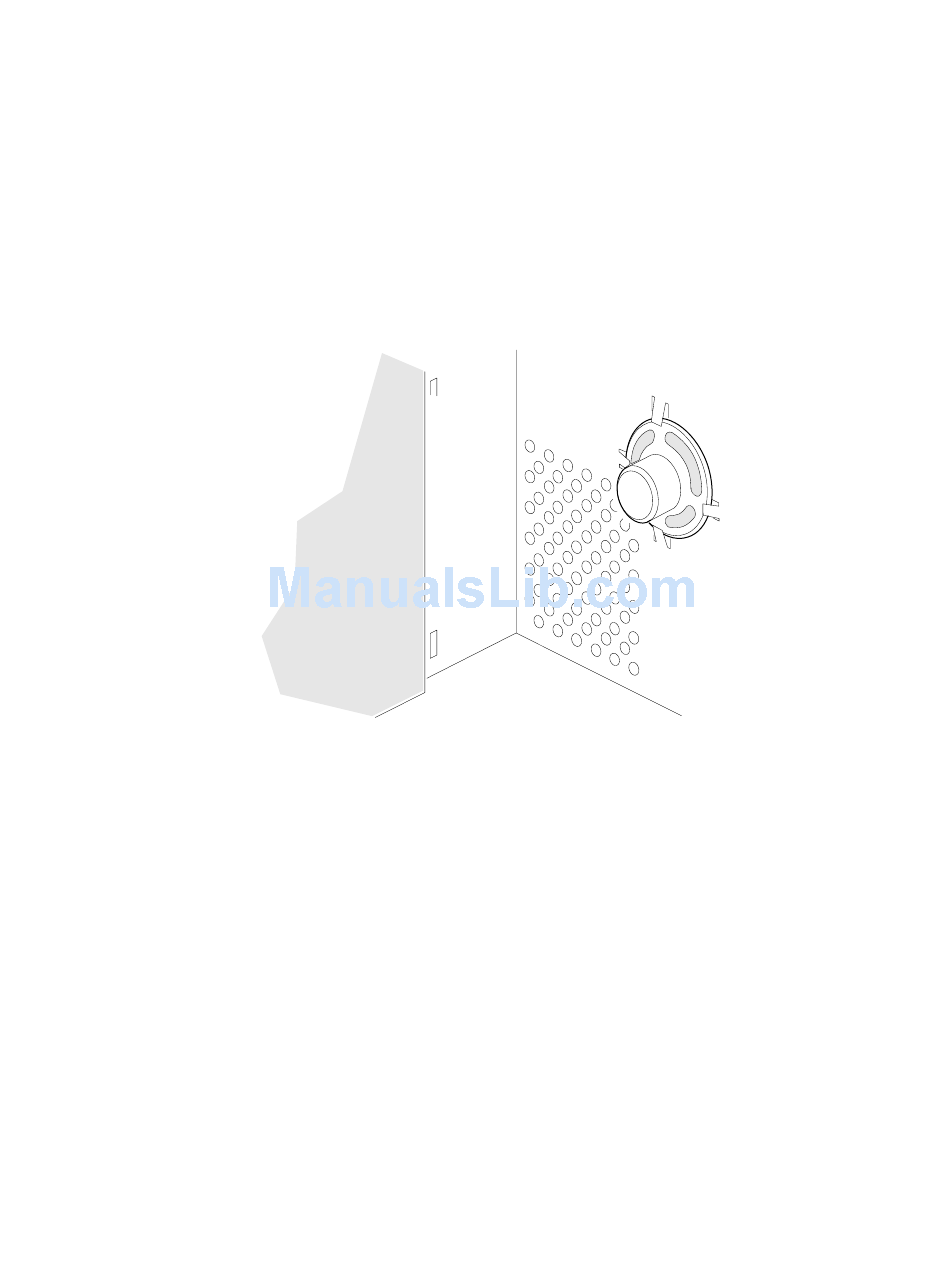

Figure 4-17. Installing the Speaker
OM04333
Taking Your System Apart
