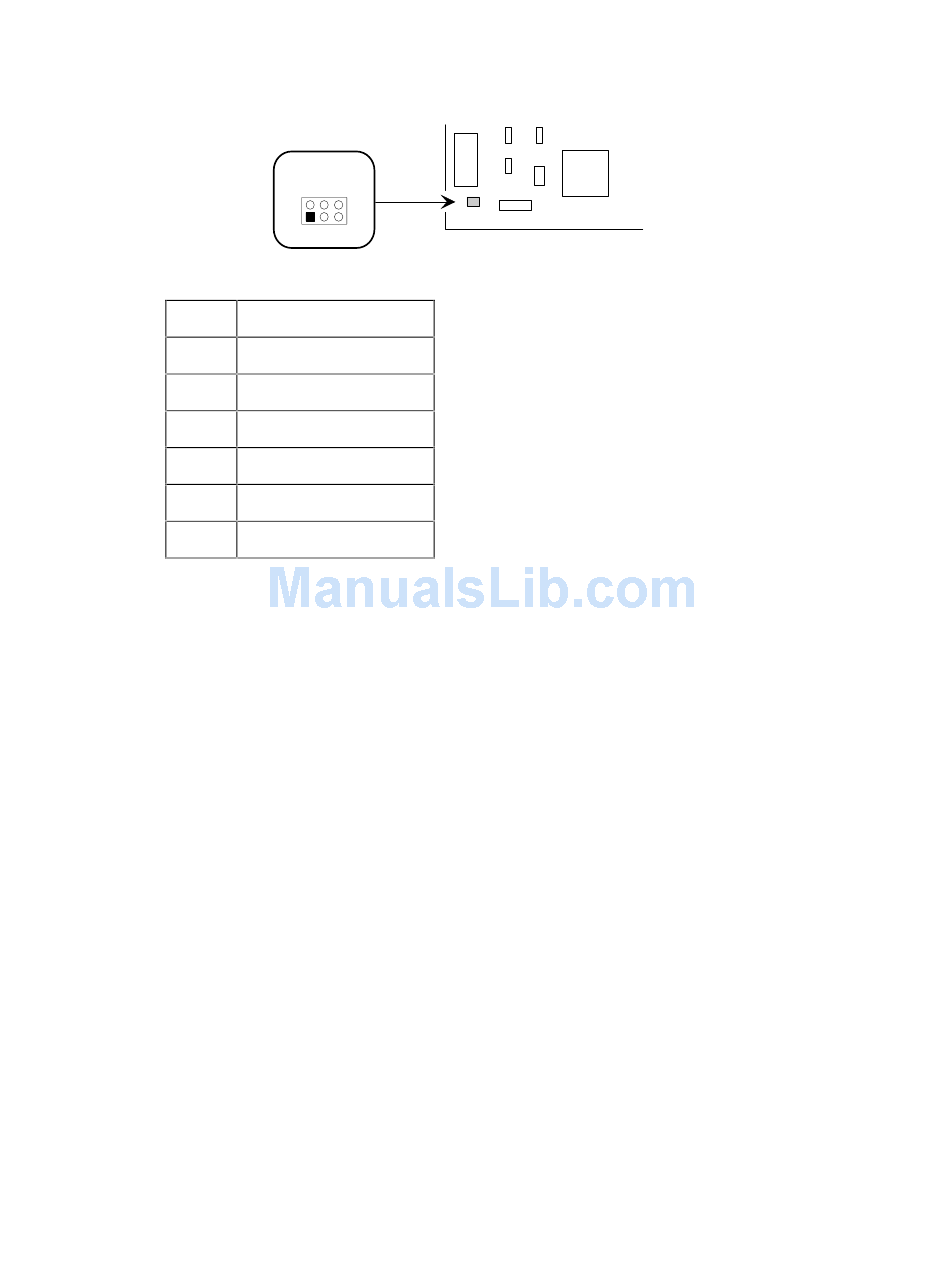

Card Slot Fan Connector

Connector on the end of the wires attached to the system board.
Pin
Signal Name
1
Ground
2
Fast fan (+12 V)
3
Ground
4
Ground
5
Slow fan (<12 V)
6
Ground
PowerMate Pro150 System
J 2 0
4
6
1
3
OM04098
7-7
