Removing Breakout Slot Covers
1. Observe the precautions in "Before You Begin."
!
CAUTION
Be careful to not damage components on the system board
or add-in boards when doing this procedure. You may
need to remove add-in boards that are next to the slot cover
you want to remove.
2. Insert a #2 bit Phillips screwdriver into the top of the slot cover. Move
the screwdriver and slot cover toward the inside of the chassis until the
slot cover breaks away from the chassis (Figure 4-5). Lift the slot cover
up and out.

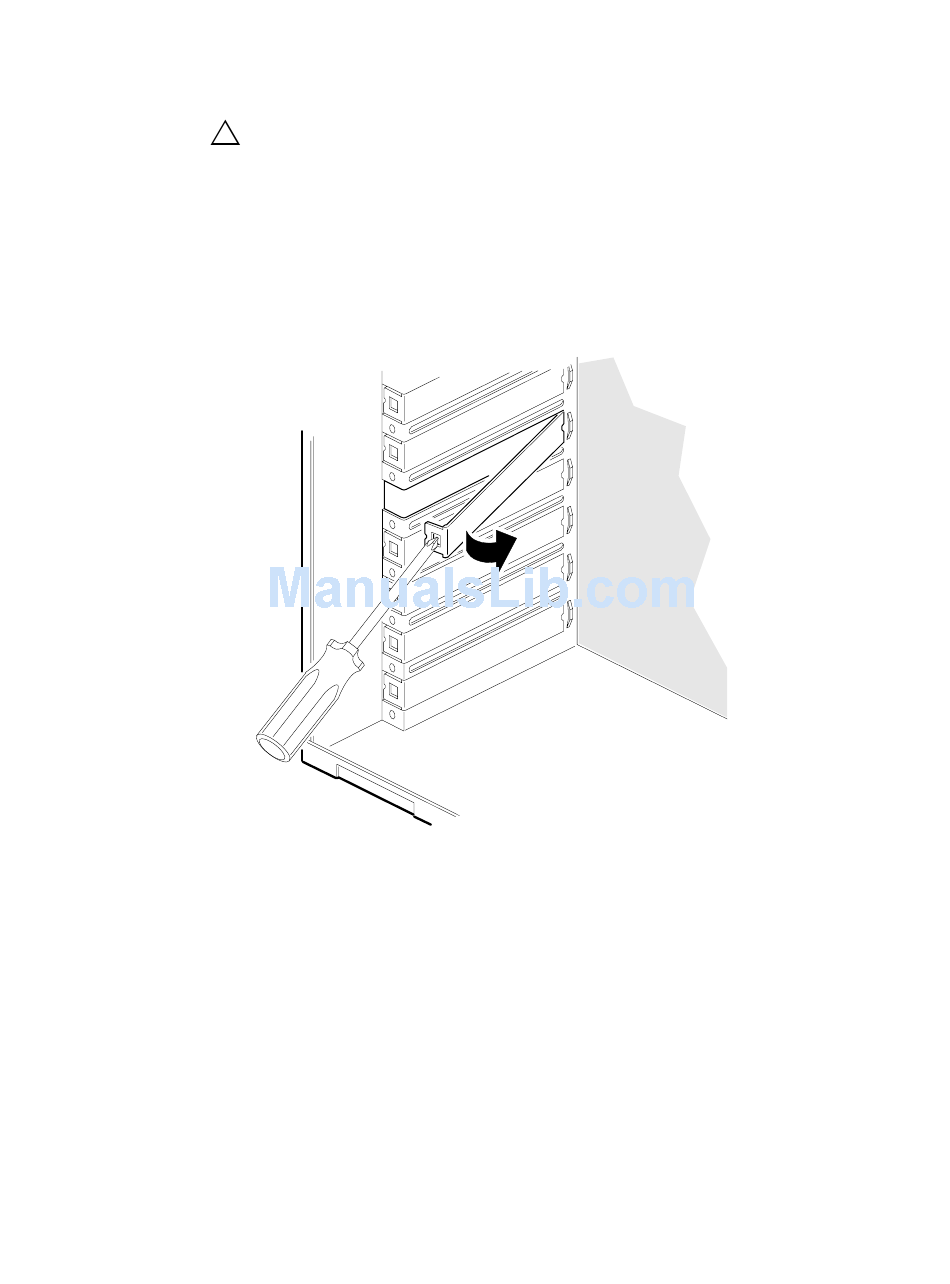

Figure 4-5. Removing a Breakout Expansion Slot Cover
4-10
O M 04 335
Taking Your System Apart
