Installing A 5.25-Inch Device - NEC POWERMATE PRO150 Manual

9. Push the drive into the bay until the slide rails lock in place.
10. Connect power and data cables to the device.

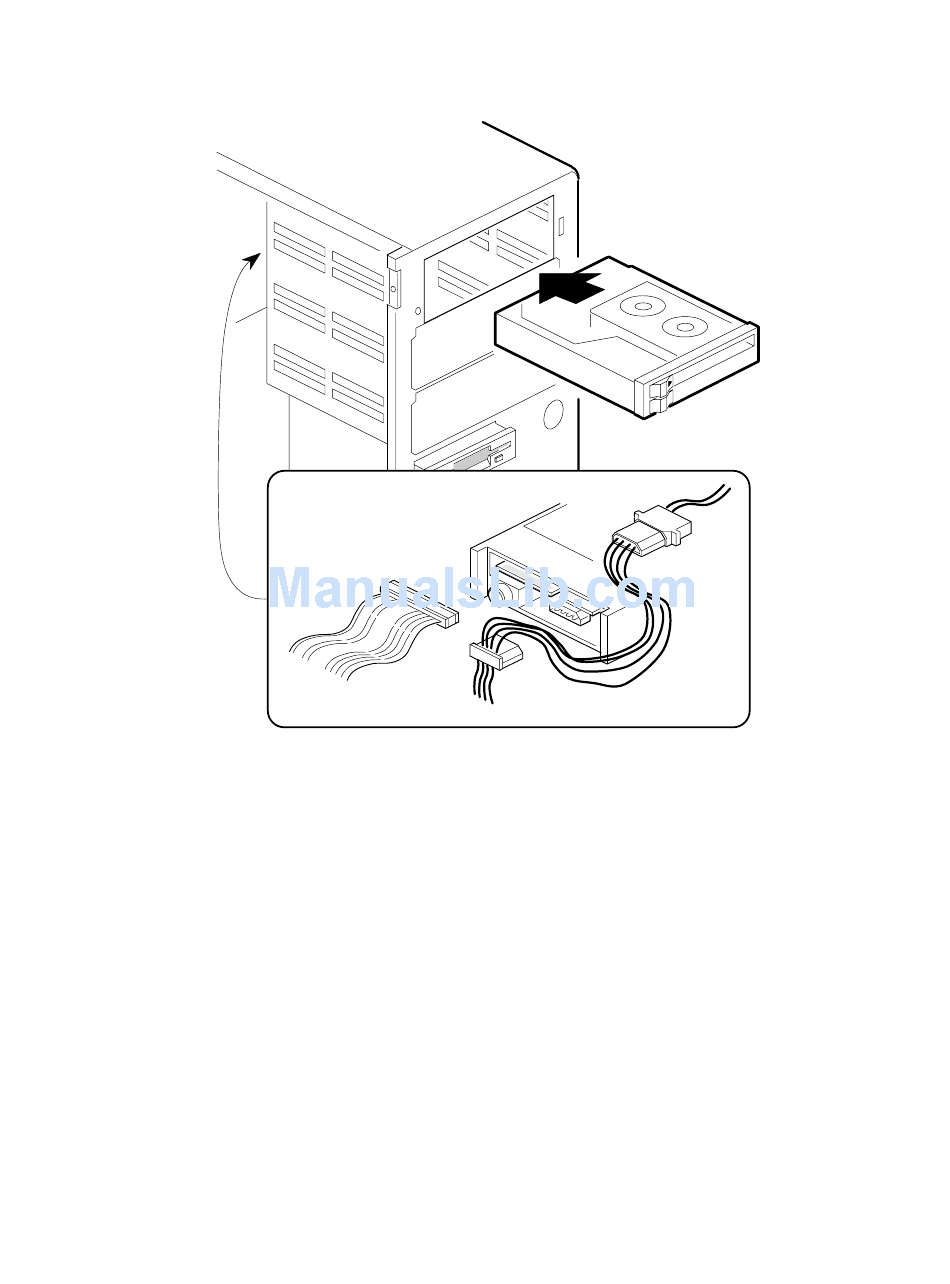

Figure 4-13. Installing a 5.25-inch Device
11. Replace the bezel.
12. If you are installing a new or different type of drive, instead of replacing
a drive already configured in the system, run Setup to specify the drive
type. However, you do not have to run Setup if you install an IDE
drive. The system automatically configures the IDE drive when you
boot the system.
4-22
OM04080
Taking Your System Apart
