Table 5-1 Terminal software setting value (continued)
Setting item
STOP bit
Flow control
Delay
2.
Confirm that the system management terminal is connected to the serial port
of the chassis.
5.2 Turning On the Input Power and
Starting the XSCF
This section describes the procedures for connecting the power cords to outlets,
turning on the input power, and starting the XSCF.
1.
Set the mode switch on the operation panel to the Service position.
The Service position is indicated by a wrench icon. The Locked position is
indicated by a lock icon.

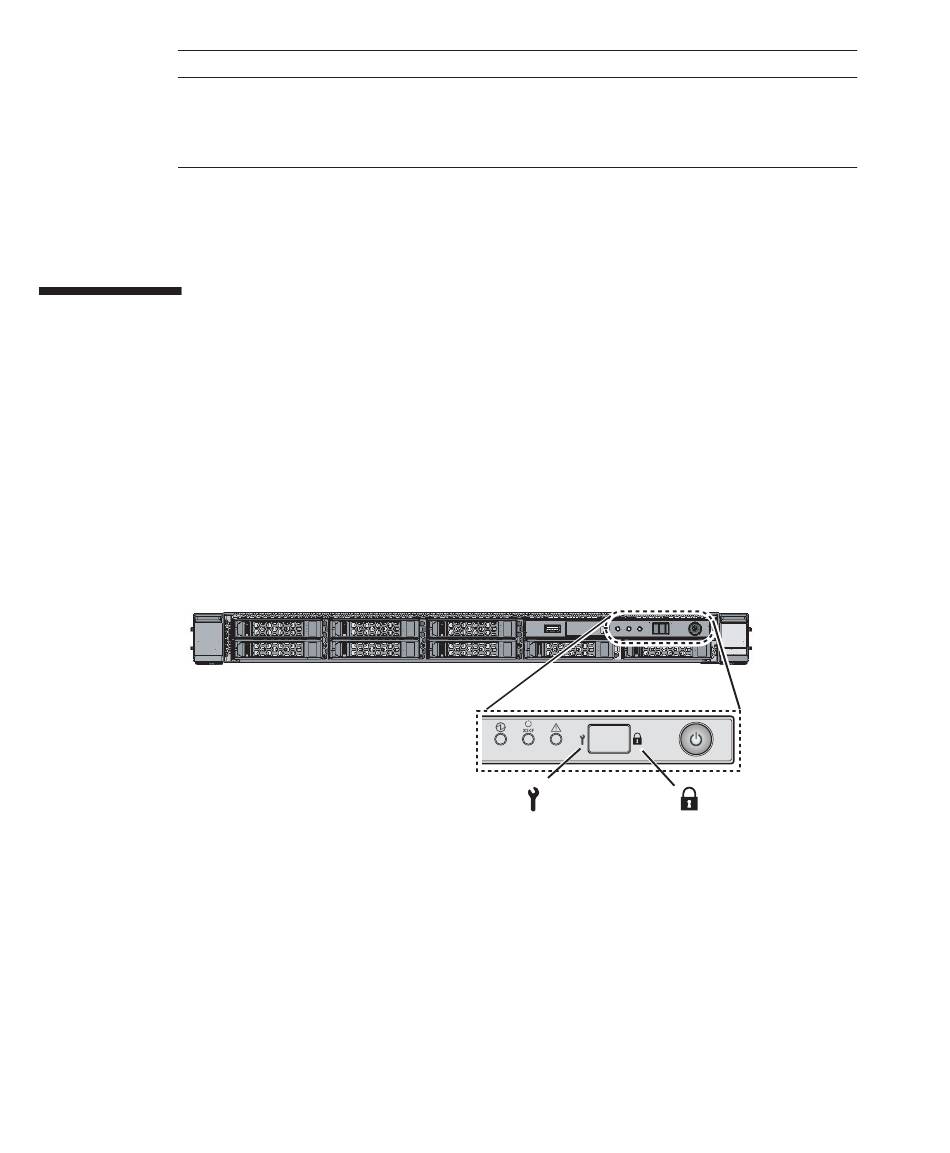

Figure 5-1 Mode switch on the operation panel of the SPARC M10-1
2.
Confirm that the power cord connector is connected, all the way straight in, to
a power supply unit of the chassis.
For details, see
3.
Connect the power cord plug to an outlet.
If the outlet has a circuit breaker, turn on the circuit breaker switch.
4.
Check the XSCF unit LEDs.
a. The CHECK LED of the XSCF unit goes on for an instant immediately after
b. The READY LED of the XSCF unit flashes during XSCF initialization and
Fujitsu M10-1/SPARC M10-1 Installation Guide ･ March 2019
80
"4.1 Connecting Cables to the SPARC
the input power is turned on.
stays on after the initialization completes.
Value
1 bit
None
Other than 0
Service
Locked
M10-1."
