Fujitsu ORACLE M10-1 Installation Manual page 62

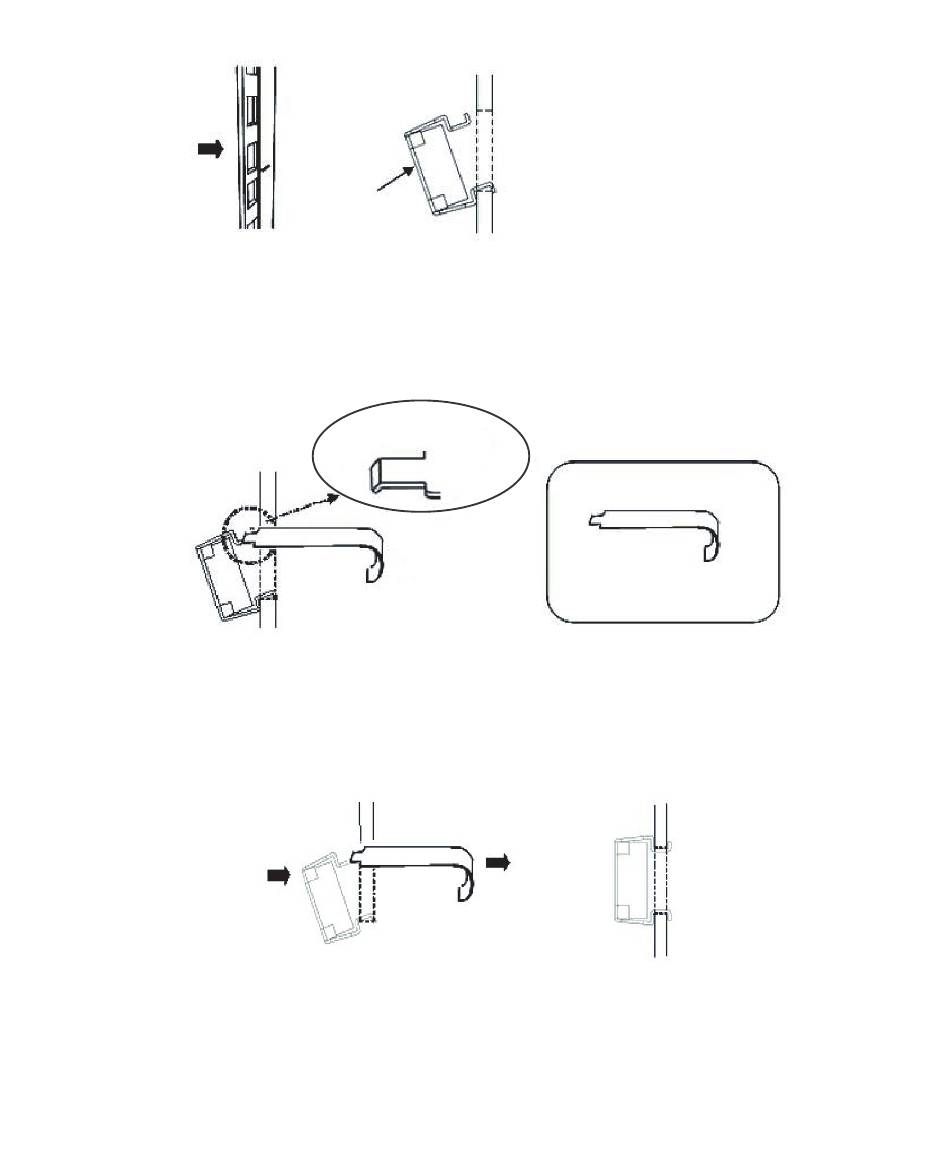

Figure 3-15 Orientation of the hooks of a cage nut
b. Insert the hook at the tip of the supplied cage nut attachment tool through a
Figure 3-16 Using the cage nut attachment tool
c. Pull the tool forward to attach the cage nut.
Figure 3-17 Attaching a cage nut
A
For supporting columns with M6 screw holes
■
For the Type-1 rail
Remove the pins at the front and rear of the rail.
Fujitsu M10-1/SPARC M10-1 Installation Guide ･ March 2019
52
Cage nut
cage nut attachment hole from the front, and engage it with the hook at the
other end of the cage nut.
Direction of
tool hook tip
Push in direction A while simultaneously pulling in direction B as shown in
Figure 3-17.
Cage nut attachment tool
B
Completed view
