Table 3-4 Dimensions between the front and rear columns and scale positions
Dimension between front and rear columns (mm)
740
730
720
710
700
690
680
670
660
650
Note - If you have difficulty laying a thick cable into the cable support, move forward the
fixing location of the cable support to make the work easier.
c. Close the rear door of the rack, and confirm that the cable support does not

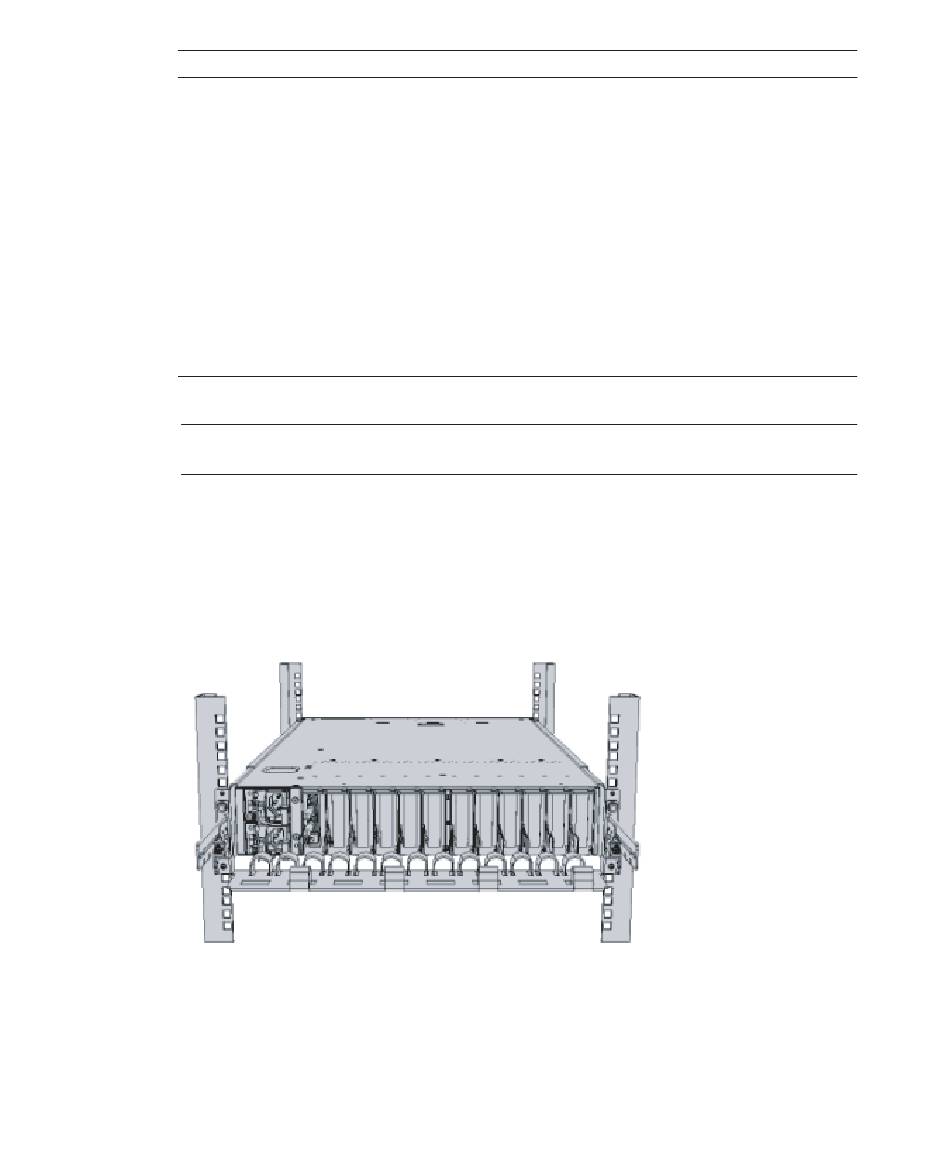

Figure 3-39 Completed cable support attachment
Fujitsu M10-1/SPARC M10-1 Installation Guide ･ March 2019
68
interfere. If the cable support interferes with the rear door, remove the cable
support. Even if you remove the cable support, leave the rails secured with
the two M6 screws to the rack.
Scale position
1st
2nd
3rd
4th
5th
6th
7th
8th
9th
10th
