b. Slide in the cable support all the way, and tighten the four screws (C in
Figure
3-37).

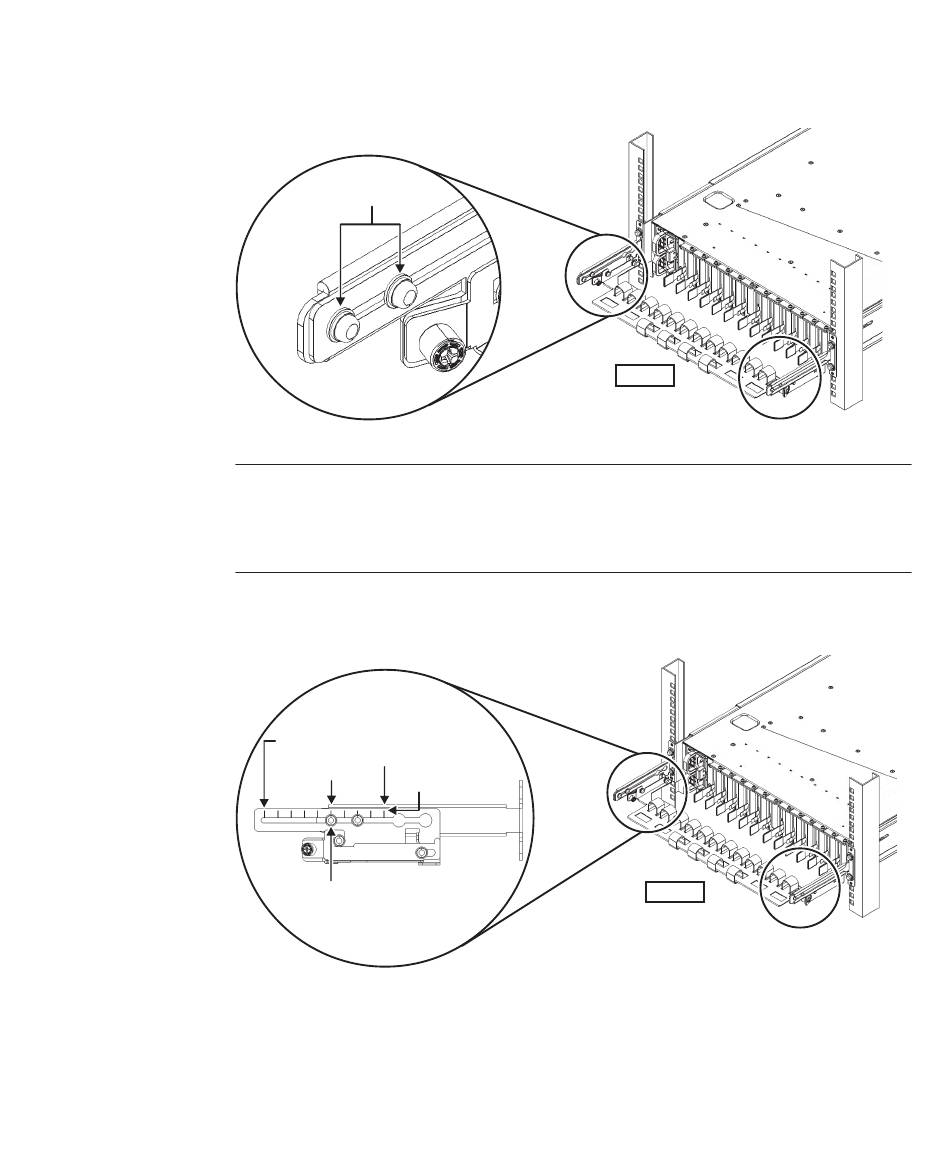

Figure 3-37 Attaching the cable support (2)
C
REAR
Note - If the dimension between the front and rear columns of the rack is less than 740 mm,
secure the cable support without sliding it in all the way. The fixing location varies
depending on the dimension between the front and rear columns of the rack. Based on
Figure
3-38, align the scale marks (E in
Figure
3-38) (spacing: 10 mm) on the cable support
with the screws (F in
Figure
3-38) of the fixing brackets to secure the cable support.
Figure 3-38 Attaching the cable support (3)
Scale position 1st
Scale position 10th
Scale
position 6th
E
REAR
F
Chapter 3 Installing the System
67
