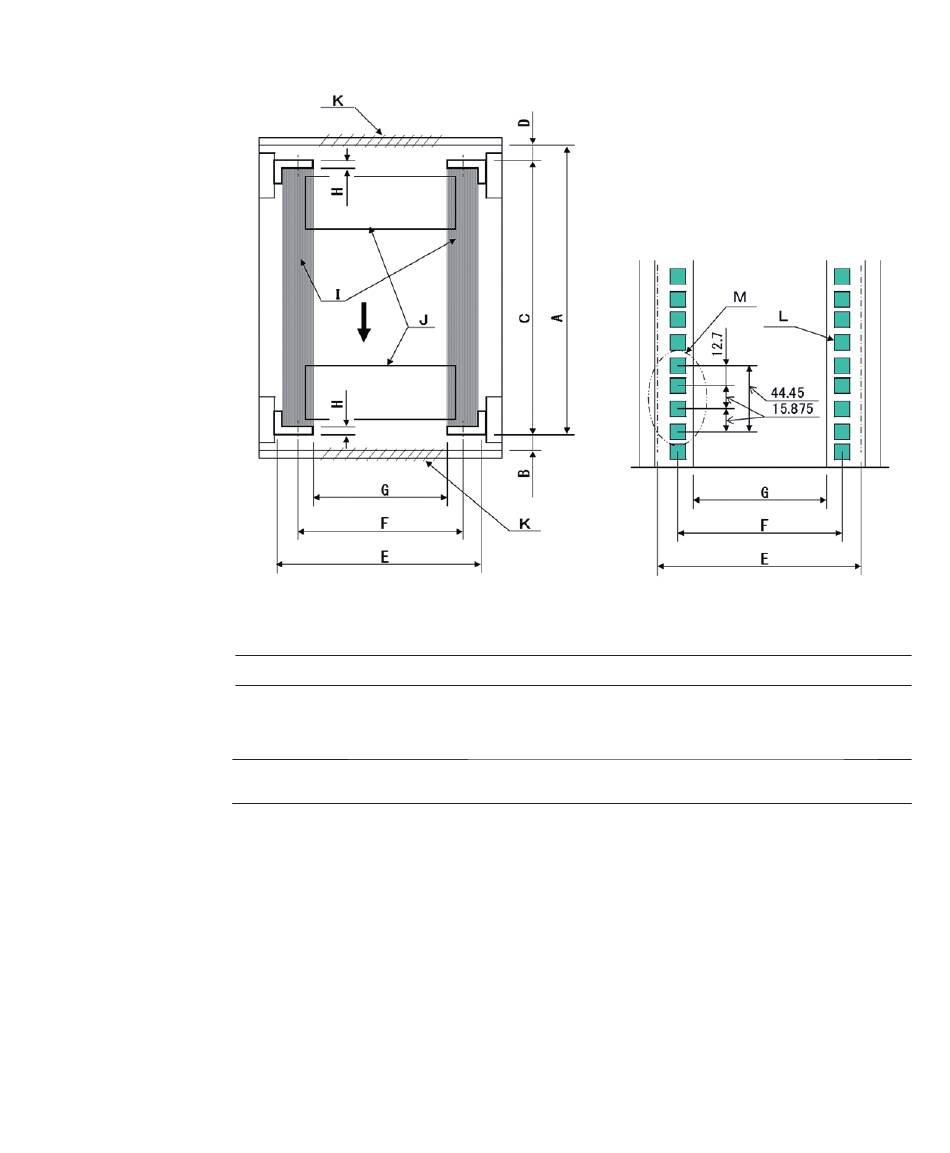

Figure 2-2 Dimensional drawings for third-party rack checks
FRONT
Rack horizontal diagram
(horizontal cross section)
Note - The dimensions shown in the conditions do not include any protrusions.
Table 2-3 Third-party rack checklist
Description
Rack type/Compliance
standards
Dimension between rear door
(inside) and front column
Dimension between front door
(inside) and front column
Dimension between front and
rear columns
Dimension between rear door
(inside) and rear column
Condition
Equipment rack/EIA standard-compliant
SPARC M10-1: At least 917 mm (36.1 in.)
PCI-BOX: At least 848 mm (33.4 in.)
SPARC M10-1: At least 40 mm (1.5 in.)
PCI-BOX: At least 24 mm (0.9 in.)
Within adjustment range of rack mount kit
Adjustment range of the mount kit for each server
SPARC M10-1: 612 mm (24.1 in.) to 925 mm (36.4
in.)
PCI-BOX: 630 mm (24.8 in.) to 840 mm (33.1 in.)
SPARC M10-1: No conditions
PCI-BOX: At least 158 mm (6.2 in.)
Chapter 2 Planning and Preparing for System Installation
Rack column hole diagram
Letter in
figure
--
A
B
C
D
15
