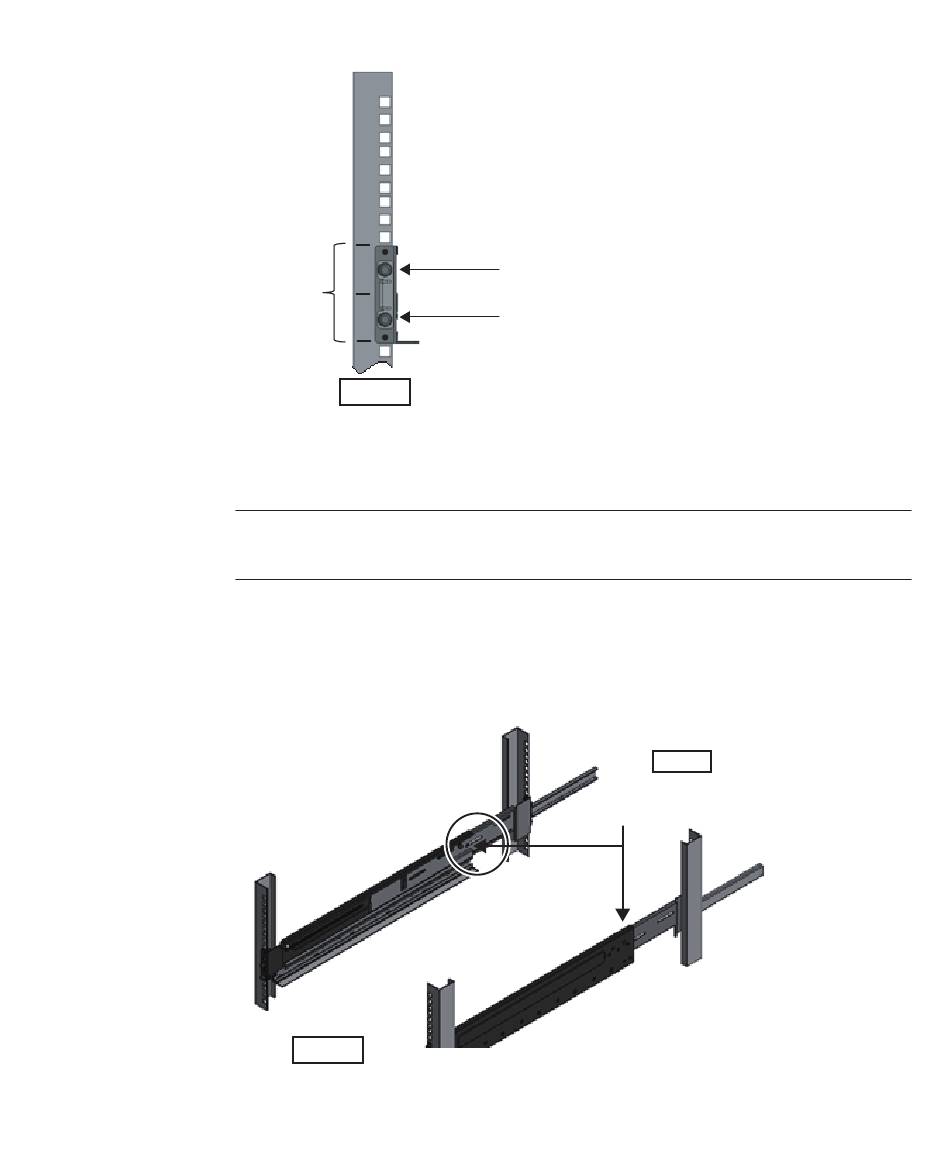

Figure 3-30     Securing the cable support fixing brackets and the rails
Mounting
area (2U)
REAR
d. After attaching the cable support fixing brackets, confirm that the rack door
can close.
Note - If the door cannot close because the cable support fixing bracket or the cable support
protrudes from the rear of the rack, do not attach the cable support bracket. However, secure
the rail to the rack with two M6 screws.
7.
Secure the rail sides by using the screws (M5) removed in step 4 (A in
3-31).
Figure 3-31     Securing the sides of rails with screws
FRONT
8.
Mount the PCI expansion unit in the rack.
2U center
1U center
REAR
A (M5 screws)
Chapter 3 Installing the System
Figure
61
