5.
Attach the inner rail removed in step 3 to the side of the chassis.
The left and right inner rails are the same.
a. Align the insertion holes of the inner rail with the pins on the side of the
chassis.
b. Press and slide the inner rail toward the rear of the chassis.
c. The latch clicks when the inner rail is secured to the chassis.
d. Confirm that the attached inner rail is firmly locked and does not come loose
by shaking it gently.
e. Attach the inner rail on the other side in the same manner.

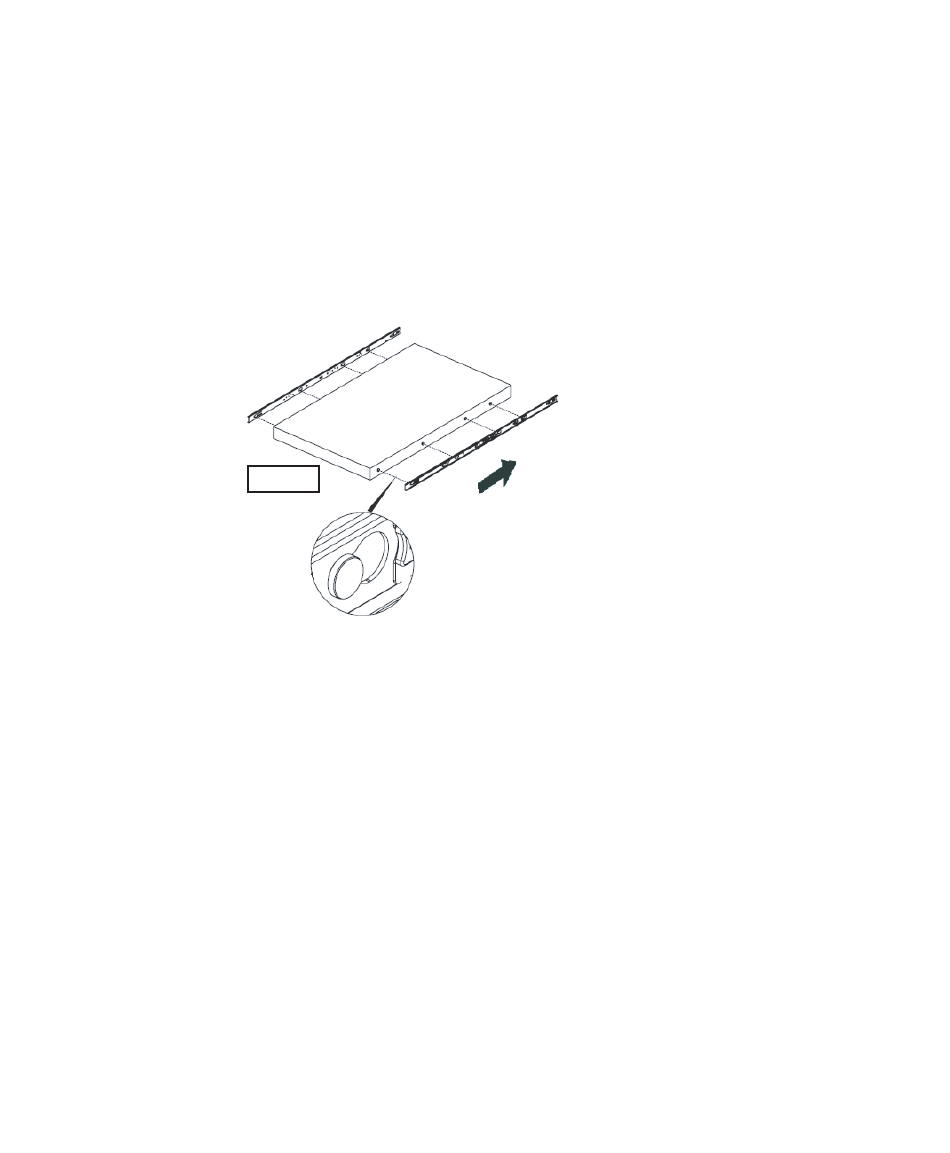

Figure 3-5 Attaching the inner rail
FRONT
6.
Mount the chassis in the rack.
a. Align the edge of the inner rail attached to the chassis with the edge of the
middle rail on the rack (A in
b. While you insert the chassis, the rail will click when locked. Move the green
lock lever (B in
insert the chassis into the rack.
Fold out the green levers on the side edges of the front of the chassis, and
push in the chassis farther, all the way. Then, release the levers to lock the
chassis.
c. Confirm that the chassis is secured to the rack by gently shaking the chassis.
Figure 3-6), and insert the chassis.
Figure 3-6) on the inner rail forward to release the lock, and
