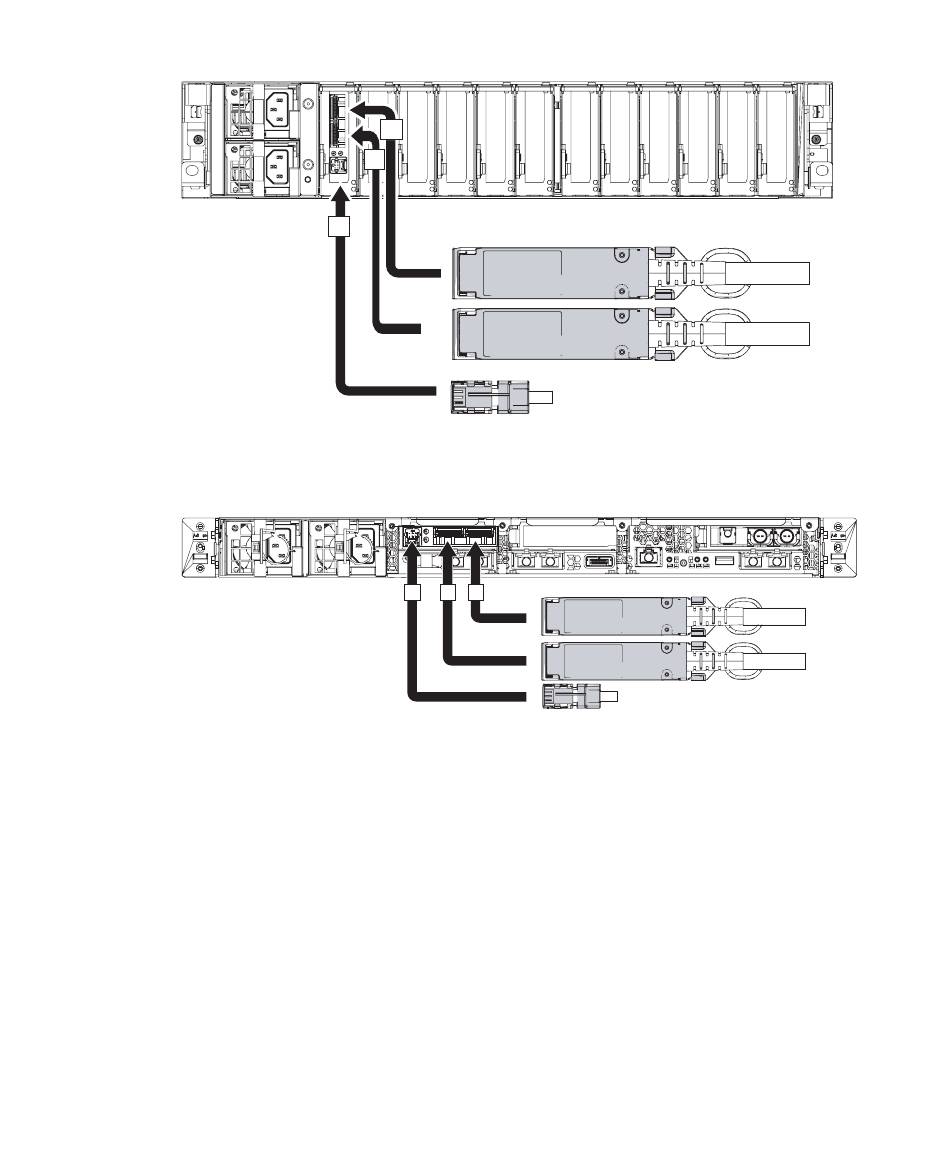

Figure 4-7 Connecting the link cables and management cable (PCI expansion unit
Figure 4-8 Connecting the link cables and management cable (SPARC M10-1
3.
If a PCIe card is mounted, connect a LAN cable and I/O cable to the respective
ports on the PCIe card.
4.
Secure the cables to the cable support.
While leaving extra length, secure the cables connected to the PCIe card to the
cable support.
5.
Attach a core to each supplied power cord, and connect the cord to a power
supply unit.
a. Insert the power cord so that it fits into the groove of the core. Pinch the core
Fujitsu M10-1/SPARC M10-1 Installation Guide ･ March 2019
76
side)
C
B
A
side)
A
closed until its latch is secured.
Attach the core at a location 90 mm (3.5 in) from the end of the power cord
connector. (See Figure 4-9.)
B C
