B01MGAINB,*,-3
B01MGAINB,*,>12
B01MGAINB,*,?

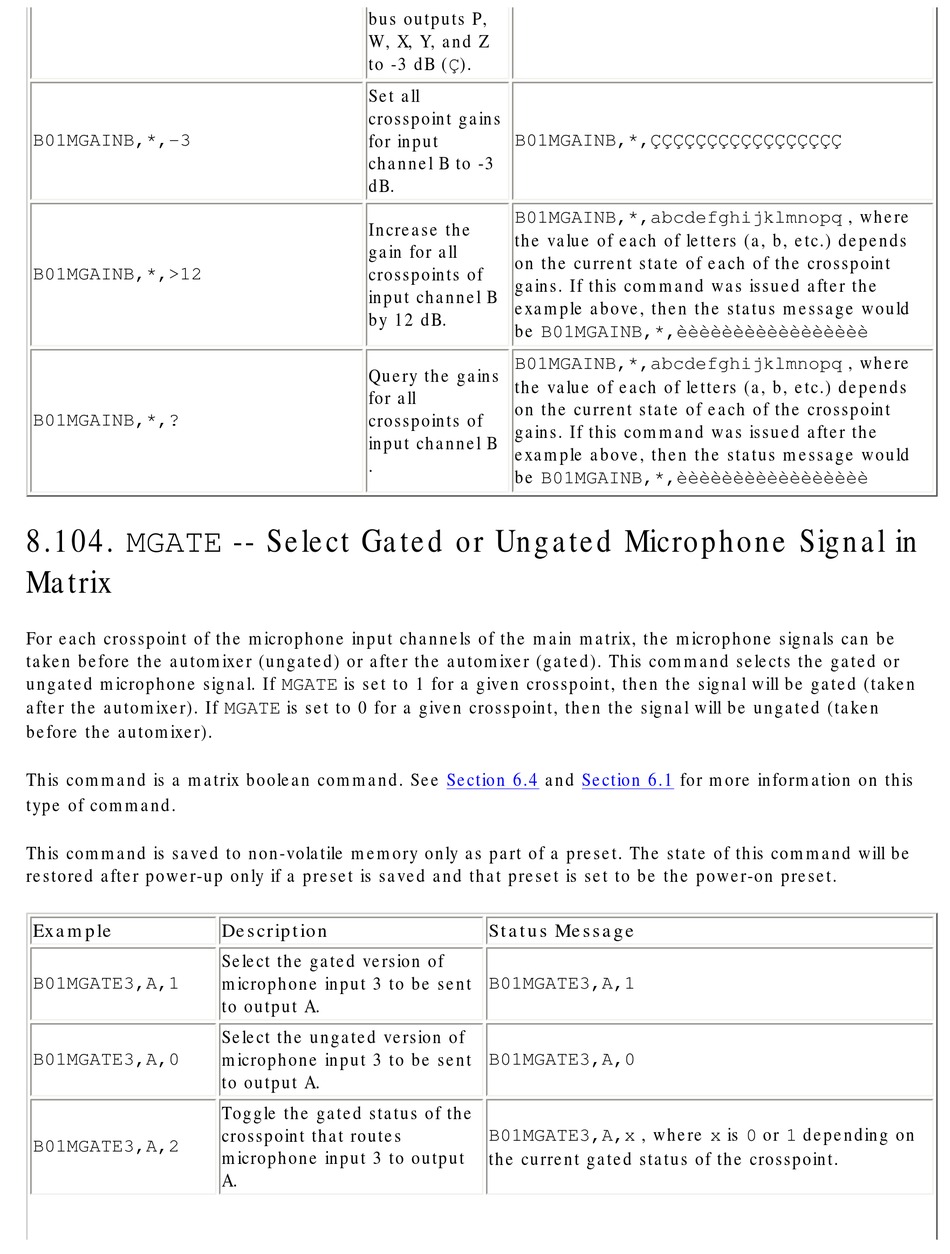

8.104. MGATE -- Select Gated or Ungated Microphone Signal in
Matrix
For each crosspoint of the microphone input channels of the main matrix, the microphone signals can be
taken before the automixer (ungated) or after the automixer (gated). This command selects the gated or
ungated microphone signal. If MGATE is set to 1 for a given crosspoint, then the signal will be gated (taken
after the automixer). If MGATE is set to 0 for a given crosspoint, then the signal will be ungated (taken
before the automixer).
This command is a matrix boolean command. See
type of command.
This command is saved to non-volatile memory only as part of a preset. The state of this command will be
restored after power-up only if a preset is saved and that preset is set to be the power-on preset.
Example
B01MGATE3,A,1
B01MGATE3,A,0
B01MGATE3,A,2
bus outputs P,
W, X, Y, and Z
to -3 dB (Ç).
Set all
crosspoint gains
for input
channel B to -3
dB.
Increase the
gain for all
crosspoints of
input channel B
by 12 dB.
Query the gains
for all
crosspoints of
input channel B
.
Description
Select the gated version of
microphone input 3 to be sent
to output A.
Select the ungated version of
microphone input 3 to be sent
to output A.
Toggle the gated status of the
crosspoint that routes
microphone input 3 to output
A.
B01MGAINB,*,ÇÇÇÇÇÇÇÇÇÇÇÇÇÇÇÇÇ
B01MGAINB,*,abcdefghijklmnopq , where
the value of each of letters (a, b, etc.) depends
on the current state of each of the crosspoint
gains. If this command was issued after the
example above, then the status message would
be B01MGAINB,*,èèèèèèèèèèèèèèèèè
B01MGAINB,*,abcdefghijklmnopq , where
the value of each of letters (a, b, etc.) depends
on the current state of each of the crosspoint
gains. If this command was issued after the
example above, then the status message would
be B01MGAINB,*,èèèèèèèèèèèèèèèèè
Section 6.4 and Section 6.1
Status Message
B01MGATE3,A,1
B01MGATE3,A,0
B01MGATE3,A,x , where x is 0 or 1 depending on
the current gated status of the crosspoint.
for more information on this
