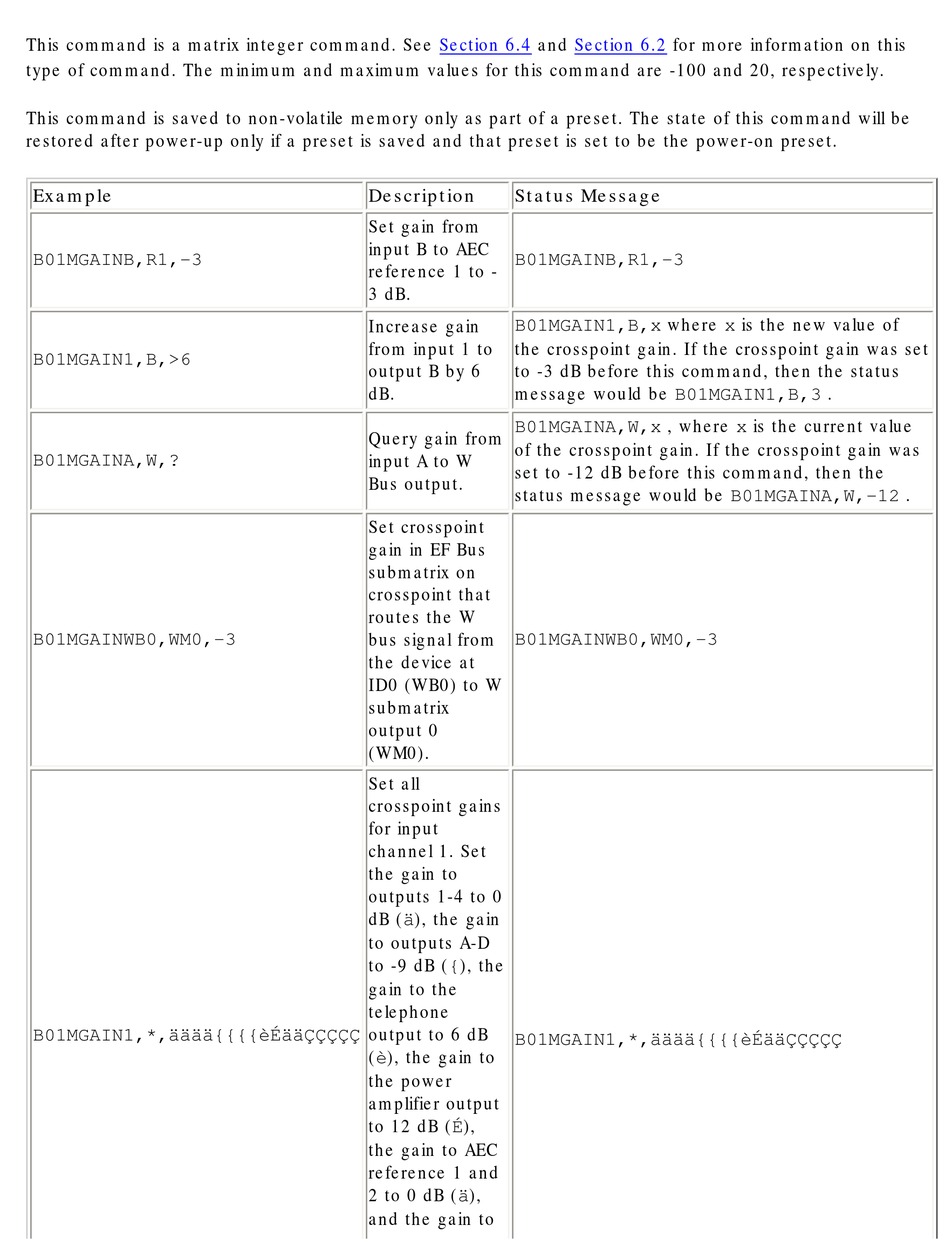

Polycom Vortex EF2241 Programming Manual page 85

This command is a matrix integer command. See
type of command. The minimum and maximum values for this command are -100 and 20, respectively.
This command is saved to non-volatile memory only as part of a preset. The state of this command will be
restored after power-up only if a preset is saved and that preset is set to be the power-on preset.
Example
B01MGAINB,R1,-3
B01MGAIN1,B,>6
B01MGAINA,W,?
B01MGAINWB0,WM0,-3
B01MGAIN1,*,ääää{{{{èÉääÇÇÇÇÇ
Section 6.4 and
Description Status Message
Set gain from
input B to AEC
B01MGAINB,R1,-3
reference 1 to -
3 dB.
B01MGAIN1,B,x where x is the new value of
Increase gain
from input 1 to the crosspoint gain. If the crosspoint gain was set
output B by 6 to -3 dB before this command, then the status
dB. message would be B01MGAIN1,B,3 .
B01MGAINA,W,x , where x is the current value
Query gain from
of the crosspoint gain. If the crosspoint gain was
input A to W
set to -12 dB before this command, then the
Bus output.
status message would be B01MGAINA,W,-12 .
Set crosspoint
gain in EF Bus
submatrix on
crosspoint that
routes the W
bus signal from
B01MGAINWB0,WM0,-3
the device at
ID0 (WB0) to W
submatrix
output 0
(WM0).
Set all
crosspoint gains
for input
channel 1. Set
the gain to
outputs 1-4 to 0
dB (ä), the gain
to outputs A-D
to -9 dB ({), the
gain to the
telephone
output to 6 dB
B01MGAIN1,*,ääää{{{{èÉääÇÇÇÇÇ
(è), the gain to
the power
amplifier output
to 12 dB (É),
the gain to AEC
reference 1 and
2 to 0 dB (ä),
and the gain to
Section 6.2 for more information on this
