9.3 Waymeter Configuration (for Waybox Pro)

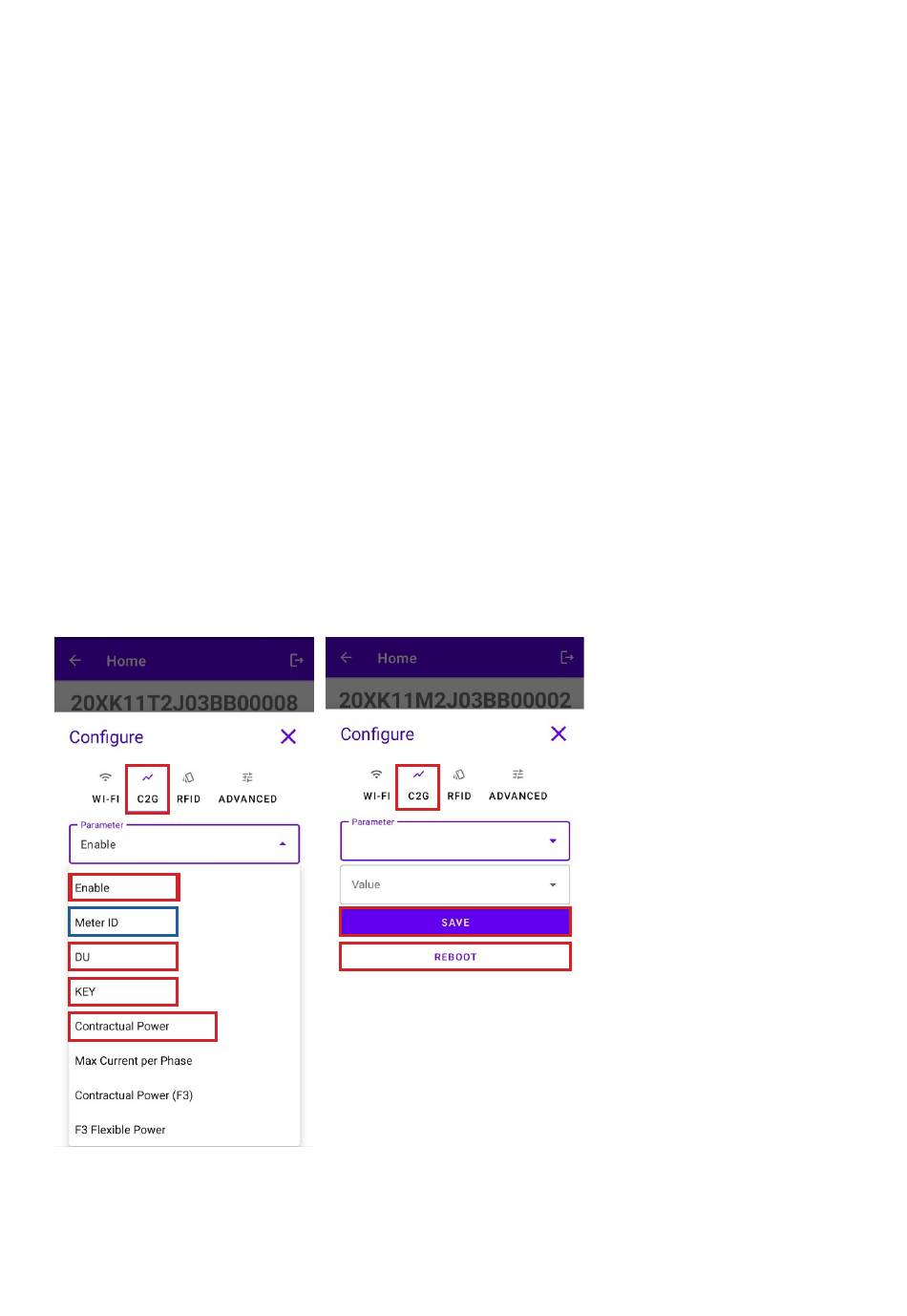

To configure a Waymeter select the C2G tab and fill in the required sections (Enable, DU,
KEY, CONTRACTUAL POWER):
1. Select the C2G tab.
2. Select the Enable tab and then set the value to True.
3. Insert the Waymeter's DU and KEY parameters that are printed in the label inside the
Waymeter's packaging.
NOTE:
As an alternative to the DU and KEY parameters, it is possible to enter only the Meter ID
parameter directly on the Waymeter.
4. Insert the CONTRACTUAL POWER value expressed in W (Watt) (e.g. to configure a
3.3kW Contractual Power the value to be inserted is 3300).
5. After performing the configuration click the SAVE button.
6. Click the REBOOT button.
