Enel X Waybox Pro Installer Manual page 22

REV.2 - 03/2023

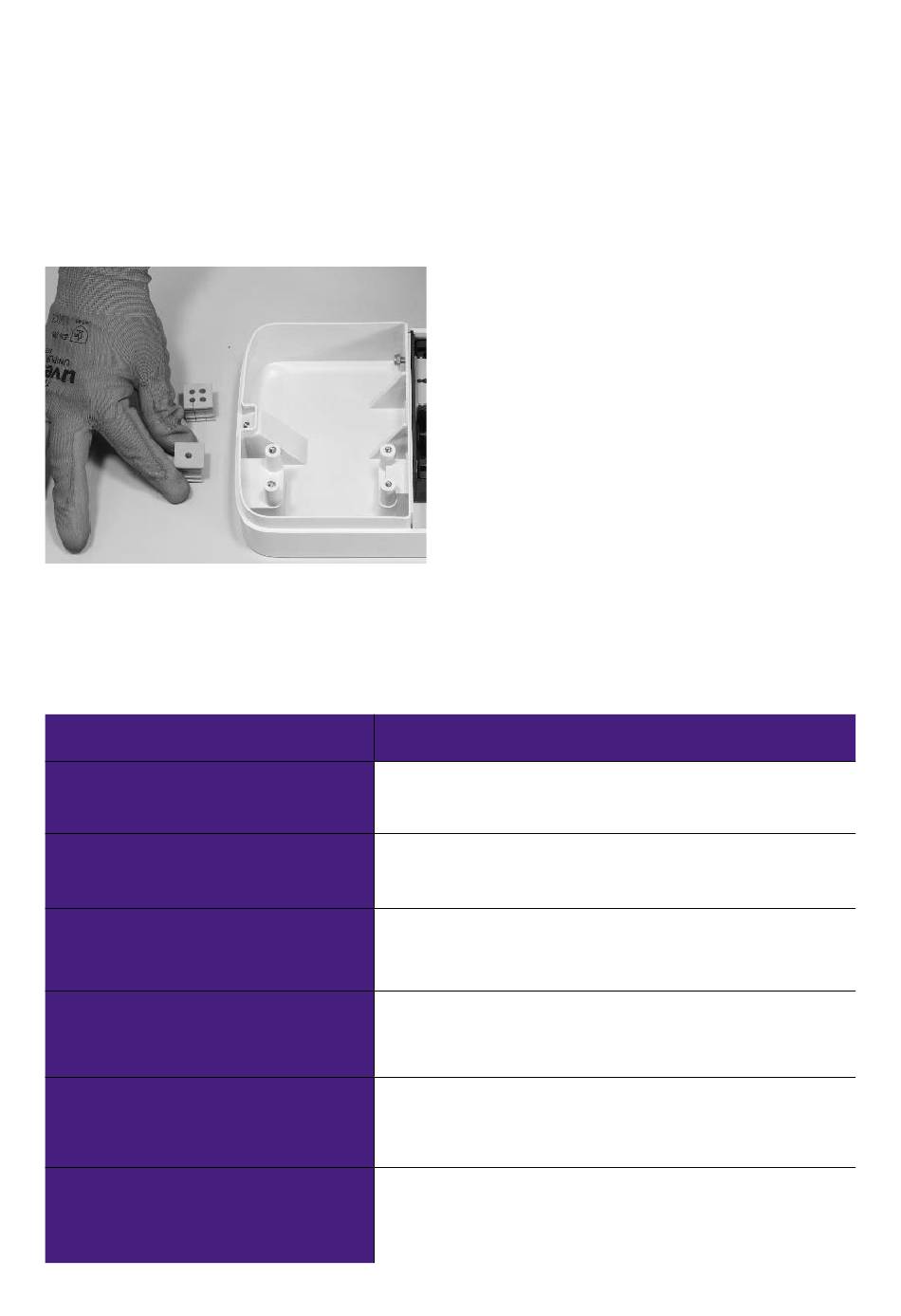

5. Remove the 2 perforated gaskets from the block.
NOTE:
These gaskets have a printed code to identify the hole diameter. Gaskets with a single hole
have a single digit that identifies the hole diameter in mm. Multi-hole gaskets have 2 digits:
the first digit identifies the number of holes, the second digit identifies the hole diameter
(e.g. 2/6, gasket with 2 holes 6 mm in diameter).
NOTE:
These gaskets must be replaced according to the type of installation as shown in the table
below:
TYPE OF INSTALLATION
Single-phase Waybox installation
with cables up to 6 mm
Three-phase Waybox installation
with cables up to 6 mm
Single-phase Waybox installation
with 10 mm cables
2
Three-phase Waybox installation
with 10 mm cables
2
Three-phase Waybox installation
in single-phase mode with cables
up to 6 mm
2
Three-phase Waybox installation
in single-phase mode with 10
mm cables
2
22
GASKET REQUIREMENTS
Do not replace gaskets
2
Do not replace gaskets
2
Replace gasket 5 with gasket 6
>
Replace gasket 2/4 with gasket 2/6
>
Replace gasket 5 with gasket 6
>
Replace gasket 4/4 with gasket 4/6
>
Replace gasket 4/4 with gasket 2/4
>
Replace gasket 5 with gasket 6
>
Replace gasket 4/4 with gasket 2/6
>
