WAYBOX WITH CONTROL BOARD
Waybox with control board are equipped with a clean contact on the board itself that
changes its status from NO (normally open) to closed in case of a fault on the internal
contactor of the Waybox. In this case, the control board is used to command the
opening of a protection (differential or magnetothermal) to cut off the power supply
circuit.

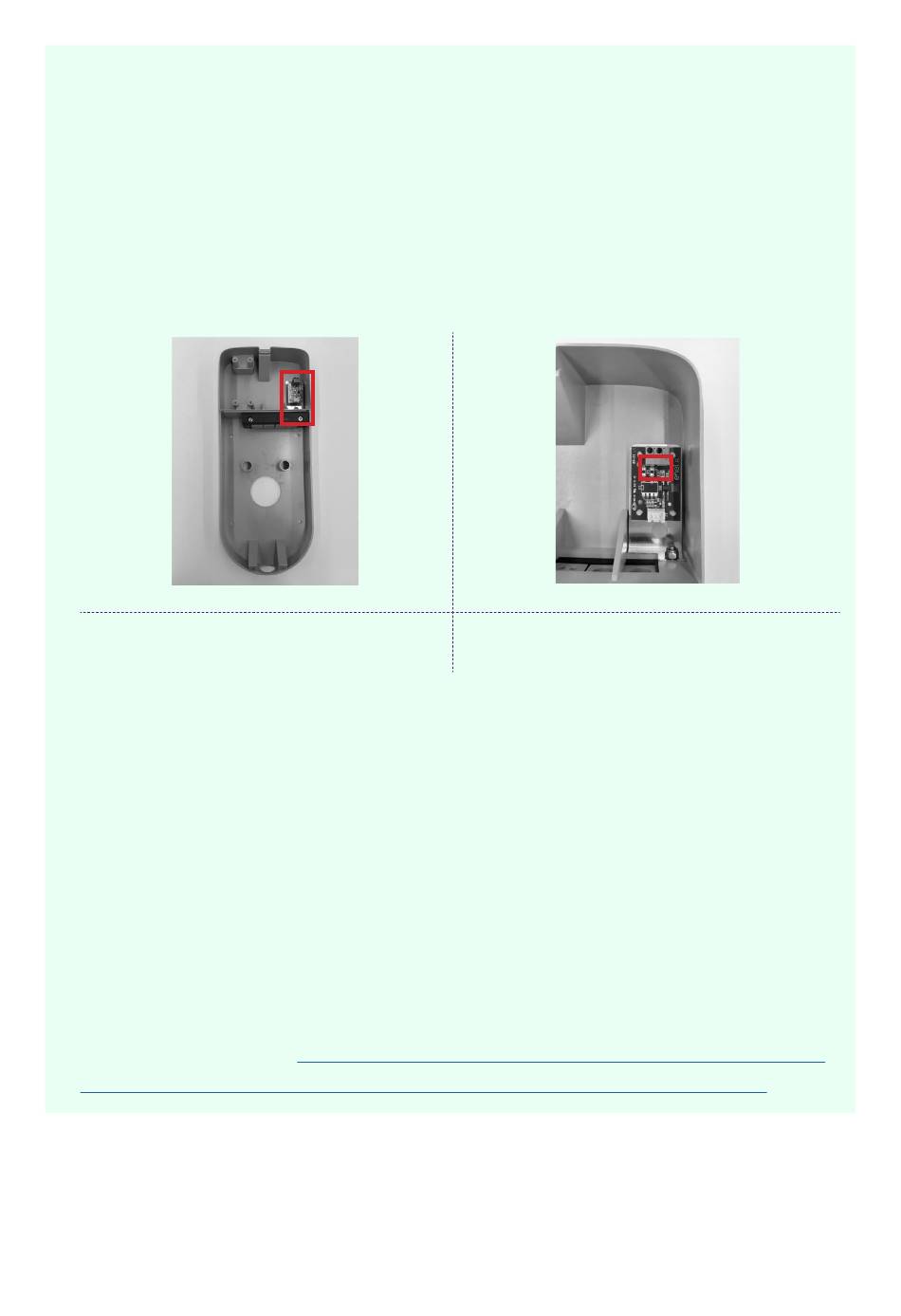

Control board location
The characteristics of the clean contact of the control board are as follows:
>
The contact is NO (normally open).
>
The maximum voltage the contact can withstand is 60V.
>
The maximum sustained current in continuous mode is 100 mA.
>
The cross-section of the connecting cables to the contact is between 1 mm
and 1,5 mm .
2
>
The diameter of the connecting cables is between 3 mm and 3.5 mm.
The change in status of this contact is used to control an external release solution
(motor with MCB adapter). For more information on the installation of the release
device, please refer to
protections for Waybox cable version and socket version with control board".
"Procedure for installing the release solution for external
Clean contact on control board
