REV.2 - 03/2023
In case of external antenna installation, it is not necessary to include the antenna
cable inside the ferrite.

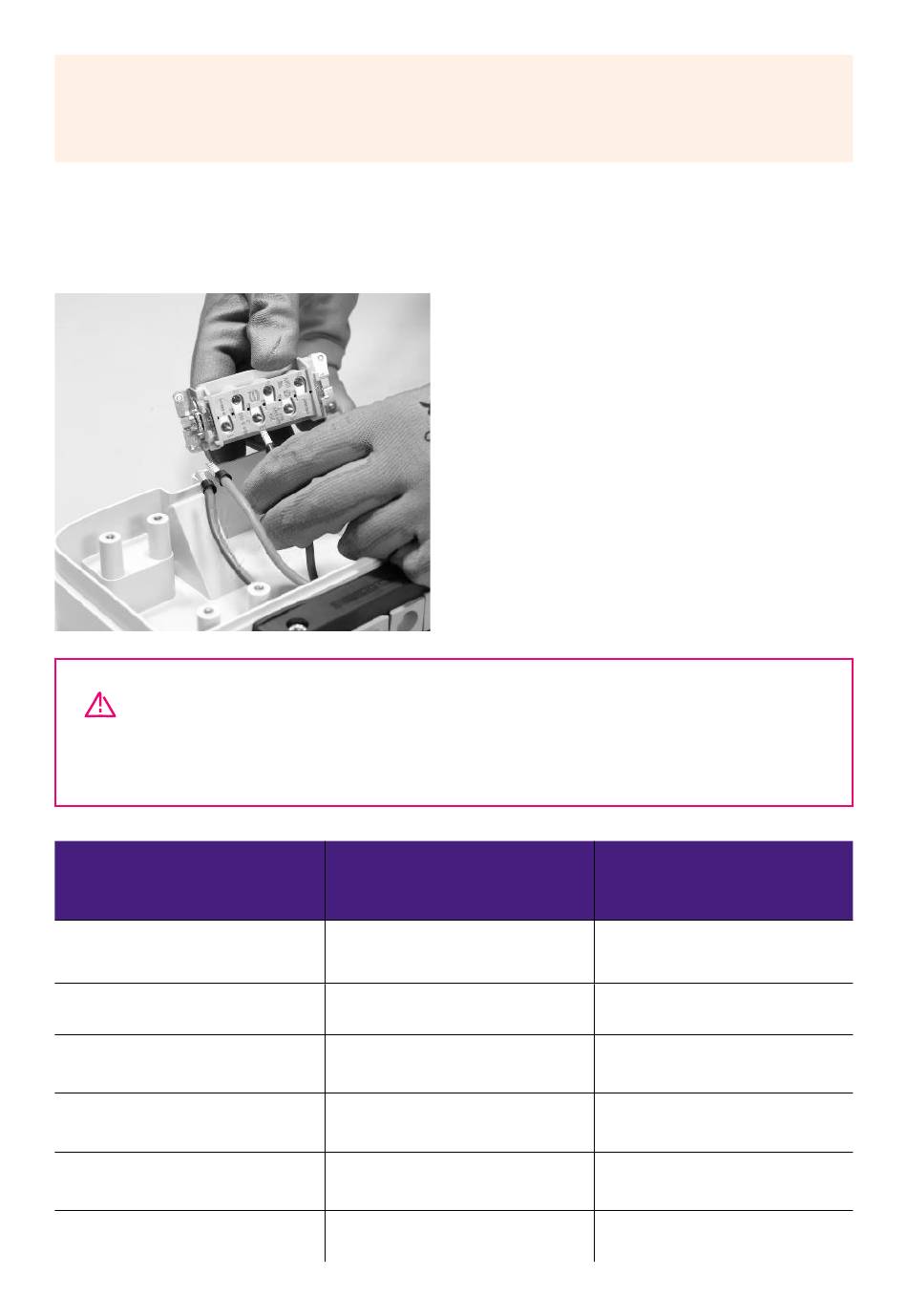

13. Loosen the terminal screws on the sides of the terminal block (x6). Install the wires into
the terminal block. Make sure each wire snaps into place, then tighten the corresponding
screw.
WARNING
In case of single-phase installation the voltage between L1 and L2/N must be max
230 V.
POSITION IN THE
TERMINAL BLOCK
1
2
3
4
5
6
30
SINGLE-PHASE
INSTALLATION
Neutral/L2
Ground
L1
Not used
Not used
Not used
THREE-PHASE
INSTALLATION
Neutral
Ground
L1
L2
L3
Not used
