1 Introduction

This procedure must be followed only in case a Waybox cable version installed in Italy or in
Holland or a Waybox installed according to "EV ready" technical requirements.
2 Procedure for installing the external
protection release solution

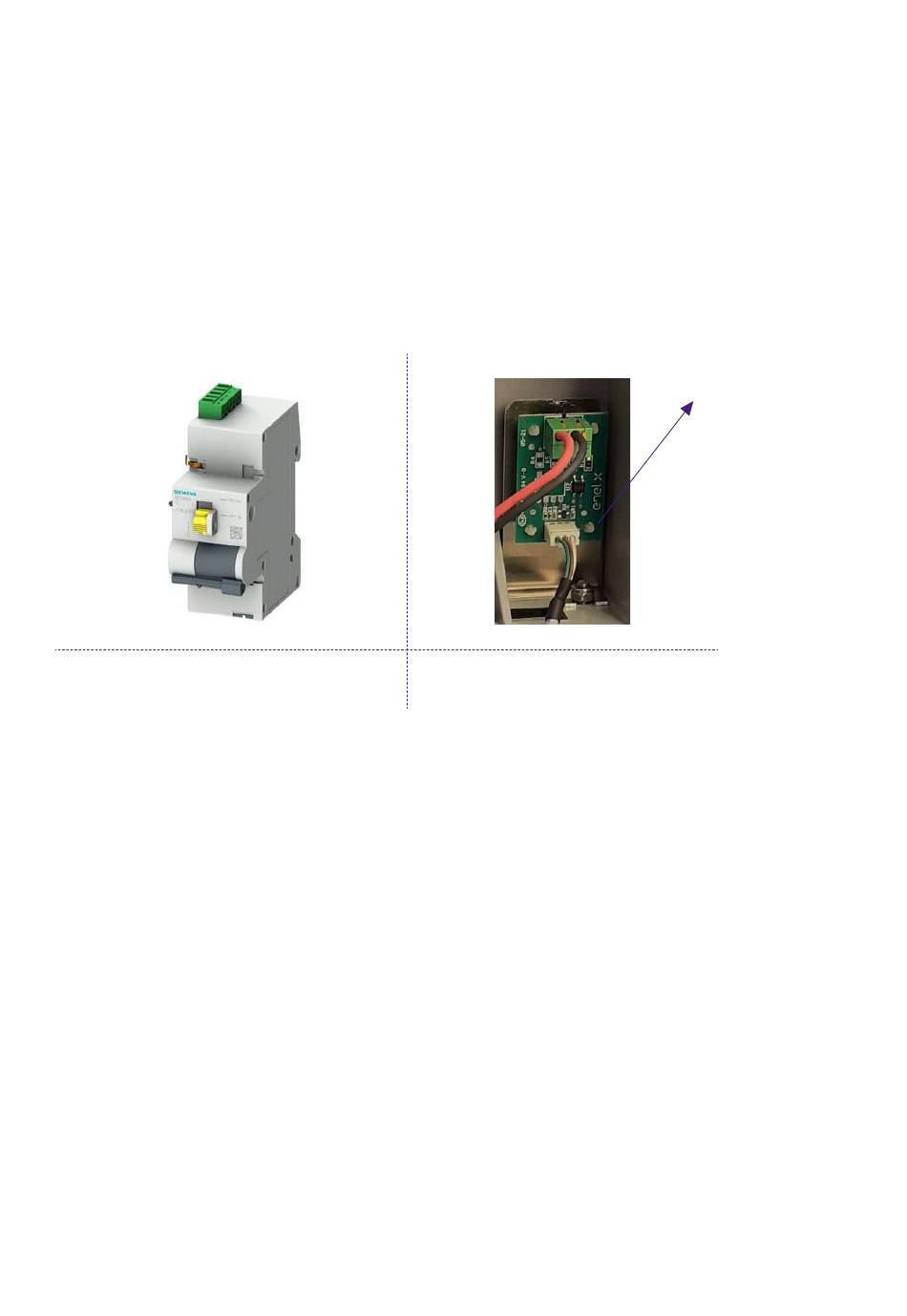

Remote control BASIC AC 230V
1. Pay particular attention to the safety instructions and warnings in the 5ST3054 "Basic
AC 230V Remote Control" product manual..
2. Proceed with the assembly of component 5ST3054 "Basic AC 230V Remote Control" as
indicated in the installation manual of the component by coupling it with the magnetothermic
switch:
a. through adapter 5ST38202 in case of 4P switch.
b. through adapter 5ST38206 in case of 2P switch.
3. Proceed with product wiring by connecting the 230 VAC single-phase power supply to the
"L" and "N" terminals and the 1-1.5mm
to the "OFF" and "COM" terminals of the terminal block of the 5ST3054 component. The
maximum length of the connecting cables between the control board and the component's
terminal block is 1500 m.
Control board
connection cables coming out of the control board
2
REV.2 - 03/2023
Connection cables
for motor control
