Enel X Waybox Pro Installer Manual

Hide thumbs Also See for Waybox Pro:
Table of Contents

Advertisement

Quick Links

Download this manual

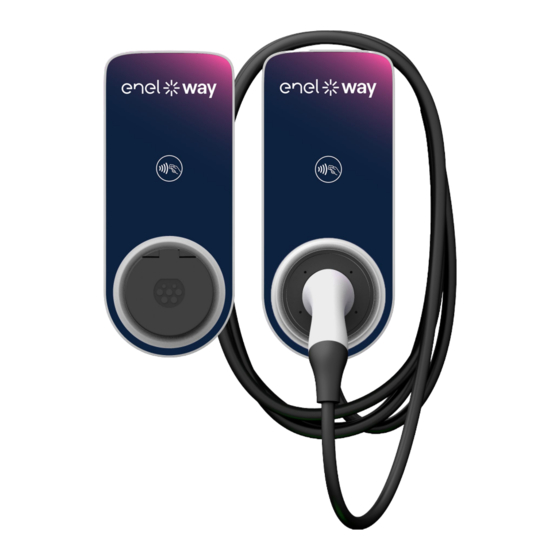

Waybox Pro
Waybox Plus
Waybox Pro MID
Waybox Plus MID
Installer Manual
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Waybox Pro and is the answer not in the manual?

Questions and answers

Related Manuals for Enel X Waybox Pro

Summary of Contents for Enel X Waybox Pro

  • Page 1 Waybox Pro Waybox Plus Waybox Pro MID Waybox Plus MID Installer Manual ENGLISH...

  • Page 2: Table Of Contents

    7.1 Three phase Waybox installed on a Single-phase or Bi-phase supply system 7.2 Other special cases 8 Firmware Update 9 Load Optimization Pro 10 Waybox Commissioning through the Enel X Way App 11 Charging Test 11.1 Charging in Unlock to Charge mode 11.2 Charging in Connect&Charge Mode 11.3 Recording the Charging Session in the Charging history...
  • Page 3 9 Waybox Configuration 9.1 Configuration of the “Supply System” Parameter 9.2 Wi-Fi Configuration 9.3 Waymeter Configuration (for Waybox Pro) 9.4 Configuration of the Waybox in Standalone Mode 9. 5 Configuration of the Waybox in Absence of Cellular Connectivity 9.6 Configuration of the Waybox in case of installation on the IT network or in absence of neutral 9.7 GPD disabling procedure...
  • Page 4 10 Viewing Waybox Diagnostics D: Web Manager manual 1 Procedure for accessing the Web Manager tool 2 Procedure for setting the Waybox in “standalone” mode in case of lack of connectivity and for commissioning 3 Setting the Waybox access mode, power, and Supply System 4 Association of the Waybox with Waymeter 5 Wi-Fi E: Procedure for installing the external protection release solution for...

  • Page 5: Purpose Of This Document

    1. Please read this Installer Manual. 2. Carry out a feasibility inspection at the installation site by filling out a checklist provided for this purpose by Enel X Way. This checklist allows you to find out whether you can proceed with standard installation (see...
  • Page 6 Waybox4Installer App to carry out the Waybox manual Manual configuration activities (if not carried out with the Enel X Way app) and Waymeter Guide for the use of the "Web Manager" web app, which can be D: Web Manager used by all users to carry out the...

  • Page 7: A: Hardware Installation Manual

    REV.2 - 03/2023 A: Hardware installation manual...

  • Page 8: Waybox

    LED indicator Socket The Waybox Pro differs from the Waybox Plus by the possibility to enable the Load Optimization Pro feature, which allows the Customer to always charge at the maximum available power without triggering the meter. The activation of this function requires the installation of an additional device, the Waymeter.

  • Page 9: Features

    REV.2 - 03/2023 Waybox with control board: The cable version Waybox to be installed in Italy and Holland has the control board. Waybox to be installed according to EV ready requirements also are equipped with the control board. 1.1 Features Up to 3.7 kW, 16 A Single-phase Up to 7.4 kW, 32 A...

  • Page 10: Dimensions

    REV.2 - 03/2023 1.2 Dimensions NOTE: All dimensions are in mm. Base (mounting holes circled in red) > Waybox cable version > Waybox socket version and Waybox socket version with control board >...

  • Page 11: Important Safety Information

    REV.2 - 03/2023 2 Important safety information Read all safety information before installing the product. WARNING: Do not leave this unit unattended if children are nearby. > WARNING: Do not put your fingers into the electric vehicle connector. > WARNING: Do not use this product if the flexible power cord is frayed, has damaged >...

  • Page 12: Package Contents

    REV.2 - 03/2023 3 Package Contents Enel X Way Waybox™ charging station with M3-0.5 x 12 mm screws (x3) and washers (x3) Base with M5 x 50 mm screws (x4) and washers (x4) Terminal block Dowels M8 x 40 mm (x4)

  • Page 13: Tools Needed

    REV.2 - 03/2023 Gasket kit for single-phase Enel X Way Waybox™ installation with 10 mm cross section cables Gasket 6 for PE > Gasket 2/6 for L1 and N/L2 > Gasket kit for three-phase Waybox installation with 10 mm cross section...

  • Page 14: Installation Prerequisites

    2.4 GHz). > For units equipped with a cellular data connection (Waybox Pro Cellular and Waybox Plus Cellular): in an area with good mobile data network coverage. If the reception is not sufficient, an external antenna will also need to be installed and connected to the Waybox.
  • Page 15 REV.2 - 03/2023 LB Class 4 33dBm (2W) LB Class E2: 27dBm (0.5W) @ EDGE HB Class 1: 30dBm (1W) HB Class E2: 26dBm (0.4W) @ EDGE 3G (WCDMA) Class 3: 24dBm (0.25W) Cellular 4G (FDD & TDD) Class 3: 23dBm (0.2W) @ 1RB B28A: 703 –...

  • Page 16: Protections

    REV.2 - 03/2023 WARNING Some electric vehicles require the Neutral (N) on the charging station to have direct contact with the Ground. This has an impact on charging in case of IT networks. In this case, a transformer must be installed upstream of the RCD and MCB and the Waybox to have a local TN system.
  • Page 17 REV.2 - 03/2023 WAYBOX WITH CONTROL BOARD Waybox with control board are equipped with a clean contact on the board itself that changes its status from NO (normally open) to closed in case of a fault on the internal contactor of the Waybox. In this case, the control board is used to command the opening of a protection (differential or magnetothermal) to cut off the power supply circuit.

  • Page 18: Power And Signal Cables

    5.4 Enel X Way App Enel X Way partners will need to install the Enel X Way app on their smartphone to perform Waybox configuration tasks. Enel X Way app is available on the iOS App Store Google Play.

  • Page 19: Standard Installation

    REV.2 - 03/2023 6 Standard Installation The following is the standard installation procedure, valid for all versions of Waybox in this manual. The procedure also includes optional steps, which must be carried out only in the following cases: > Installation of a Waybox with control board. >...
  • Page 20 REV.2 - 03/2023 3. Remove the gasket block cover using a 4mm hex wrench. 4. Identify the nut screws that secure the gasket block. Hold the nut in place with a size 8 wrench, then loosen the screw with a size 4 hex wrench.
  • Page 21 REV.2 - 03/2023 For the screw on the left, the nut is located behind the base: NOTE: It is not necessary to remove the fastener altogether, as it will be retightened later.
  • Page 22 REV.2 - 03/2023 5. Remove the 2 perforated gaskets from the block. NOTE: These gaskets have a printed code to identify the hole diameter. Gaskets with a single hole have a single digit that identifies the hole diameter in mm. Multi-hole gaskets have 2 digits: the first digit identifies the number of holes, the second digit identifies the hole diameter (e.g.
  • Page 23 REV.2 - 03/2023 ONLY IN CASE OF EXTERNAL ANTENNA INSTALLATION: Remove also the third gasket (without holes) from the block. A single hole gasket, contained in the package, will be installed in place of this one. 6. Place power cables and other signal cables (external antenna cable or signal cables in case you are installing a cable version and socket version with control board Waybox), if any, in the appropriate holes.
  • Page 24 REV.2 - 03/2023 7. Arrange the input wires through the gaskets: 1-hole gasket: grounding wire. > > 2- or 4-hole gasket: conductors (phase and neutral) The position of the individual conductors in the gasket is not relevant. In the case of single-phase installation on 4-hole gaskets, an appropriate closing plug must be inserted into the empty gaskets.
  • Page 25 REV.2 - 03/2023 Power line Terminal MCB RCD block Control Release board device Control board connection cables Electrical panel Waybox FOR OUTDOOR ANTENNA INSTALLATION ONLY: Route the cable through the included grommet. 8. Route the power cords through the partition in the upper section of the housing, as shown.
  • Page 26 REV.2 - 03/2023 FOR INSTALLATION OF A WAYBOX WITH CONTROL BOARD ONLY: Run the two clean contact connection cables through the partition in the upper section of the housing, as shown. FOR EXTERNAL ANTENNA INSTALLATION ONLY: Also route the antenna cable through the partition in the top section of the housing, as shown.
  • Page 27 REV.2 - 03/2023 Pull the wires as far as possible into the top section of the housing, then install the gaskets into the block. ONLY FOR THE INSTALLATION OF A WAYBOX WITH CONTROL BOARD: Install also the gasket that houses the two connection cables to the dry contact. Also install the two connection cables (red and black) to the clean contact as shown in the figure.
  • Page 28 REV.2 - 03/2023 FOR OUTDOOR ANTENNA INSTALLATION ONLY: Also install the gasket that houses the coaxial cable extension. 10. Attach the gasket block to the base, using an 8mm wrench to hold the nut in place while tightening the screw with a 4mm hex wrench (see step 5).
  • Page 29 REV.2 - 03/2023 11. Install the gasket block cover (x2) with the size 4 hex key (see step 4). 12. Install the ferrite around the power cables at the base of the gasket block.
  • Page 30 REV.2 - 03/2023 In case of external antenna installation, it is not necessary to include the antenna cable inside the ferrite. 13. Loosen the terminal screws on the sides of the terminal block (x6). Install the wires into the terminal block. Make sure each wire snaps into place, then tighten the corresponding screw.
  • Page 31 REV.2 - 03/2023 Single-phase installation Three-phase installation NOTE: In case of installation of cables with section 10 mm , the installer must insert the conductors with due accuracy, verifying that they are properly arranged and inserted, i.e. that the copper of the cable enters completely into the terminal, that the insulating sheath enters the "drop"...
  • Page 32 REV.2 - 03/2023 16. Place the base in the desired position at a height of at least 90 cm between the floor and the bottom edge of the base. While holding the base steady, use the 4 mounting holes as a guide to mark the points to be drilled in the wall. 17.
  • Page 33 REV.2 - 03/2023 ONLY WHEN INSTALLING AN EXTERNAL ANTENNA: Also disconnect the internal antenna from the connector on the back of the Waybox allowing the cable to hang freely. Connect the external antenna cable to the connector on the back of the Waybox. Connecting internal antenna Disconnecting internal antenna Connecting external antenna...
  • Page 34 REV.2 - 03/2023 Only for the installation of a Waybox with control board, before securing the Waybox on the base, connect the connection cable coming out of the Waybox case to the header of the board with clean contact as shown in the picture. 19.
  • Page 35 REV.2 - 03/2023 20. Apply voltage to the power cord. Check that the LED indicator of the Waybox turns solid purple within two minutes.

  • Page 36: Special Installation Cases

    "Biphase" in case of installation on a bi-phase supply system (Vph1=127 V, Vph2=127V) through one of the following methods: > Configuration of the “Supply System” parameter through the "JB4Installers" smartphone app (reserved for Enel X Way partners). To proceed with the configuration please refer to JB4Installer App Manual. >...

  • Page 37: Load Optimization Pro

    The information in this paragraph, and the instructions in the linked manuals, should only be considered if the Load Optimization Pro feature is scheduled to be activated for the Customer. Only Waybox Pro and Waybox Pro Cellular allow Load Optimization Pro to be activated.

  • Page 38: Waybox Commissioning Through The Enel X Way App

    10 Waybox Commissioning through the Enel X Way App 1. Enel X Way partner can install the app of Enel X Way on his/her device by scanning QR code below. 2. Once the Enel X Way Waybox™ has been installed, the Enel X Way partner must associate it with his/her Enel X Way app account in the Waybox section of the main page of the app and following the instructions on the screen.

  • Page 39: Charging Test

    RFID card (if RFID card available) Charging in Connect&Charge mode Verify that the charging session is correctly recorded in the Enel X Way app charging history Checking Charging Power Check correct operation in case of...

  • Page 40: Charging In Unlock To Charge Mode

    You can also stop charging sessions from the vehicle. CHARGING USING AN RFID CARD (IF AVAILABLE) The Enel X Way app card only allows you to start the Waybox charging session if: the Waybox has been paired with the Enel X Way app account >...

  • Page 41: Charging In Connect&Charge Mode

    NOTE: You can also stop charging by sending a stop command (from the Enel X Way app or vehicle). 11.2 Charging in Connect&Charge Mode This section describes how to charge a vehicle using the Waybox in Connect&Charge mode.

  • Page 42: Recording The Charging Session In The Charging History

    11.3 Recording the Charging Session in the Charging history To view the log of charging sessions performed in the Enel X Way app, select the History section from the Enel X Way app menu. The list of all charging sessions performed will appear, from which you can verify the correctness of charging data.

  • Page 43: Led Indicator

    REV.2 - 03/2023 12 LED indicator COLOR MEANING Fixed: Online > White Flashing (lasts 90 seconds): Online, waiting for cable to be > inserted Fixed: Offline > Purple Flashing (lasts 90 seconds): Offline, waiting for cable to be > inserted Fixed (duration three seconds): Start/stop command received >...

  • Page 44: B: Waymeter Installation Manual

    REV.2 - 03/2023 B: Waymeter installation manual...

  • Page 45: Waymeter

    REV.2 - 03/2023 1 Waymeter Waymeter is an energy meter that communicates with Waybox to enable the Load Optimization Pro feature. After pairing the two devices, Waymeter allows Waybox to adapt its power level based on the consumption of other devices connected to the same power line. In this way, it is possible to charge at the maximum available power while avoiding the risk of triggering the meter.

  • Page 46: Single-Phase Waymeter

    Relative humidity: 5% ÷ 95% not condensed > Altitude: <= 4000 m > Overvoltage class: II > Pollution degree: 2 > Insulation class: II > DIRECTIVE RED 2014/53/UE CE Marking Product distributed by Enel X Way, Via Ostiense 131L, 00154, Rome, Italy...
  • Page 47 REV.2 - 03/2023 POWER SUPPLY: Connection: > Standard version: The device is powered between terminals "Lin" and "N", which > are also used for voltage measurement. IT Grid version: The device is powered between terminals "L1in" and "L2/N", which > are also used for voltage measurement.

  • Page 48: Installation

    REV.2 - 03/2023 USER INTERFACE: > Service LED: service indicator (red) > Button: for initial configuration and reactivation of the device REFERENCE REGULATIONS: Art. 3.1a Safety: EN 61010-1:2010/A1: 2010, EN 61010-2-30:2010 > Art. 3.1b EMC: EN 55032:2015/A11:2010, EN 55035:2017/A11:2010, EN 61000-3-2:2019, >...
  • Page 49 REV.2 - 03/2023 1. Read the Safety Warnings manual inside the packaging. 2. Install the product in an electrical cabinet that is accessible only to qualified personnel. 3. DIN rail mounting. > The product must be installed in a vertical position on a 35mm DIN rail, with the screw terminal facing downwards.
  • Page 50 REV.2 - 03/2023 WARNING Ensure that the terminals are tight to ensure good contact. The required tightening torque is 1.8Nm. Use a 1.2x6.5 slotted or PZ2 Phillips screwdriver. 5. Connections: STANDARD VERSION SINGLE-PHASE measurement method: with integrated shunt between terminals "Lin"...
  • Page 51 REV.2 - 03/2023 WARNING Check that there is an MCB switch in the main switchboard that is suitable for the protection/disconnection of the Waymeter (In max 40 A). If this is not the case, it must be replaced. The MCB must be marked as Waymeter disconnecting device. IT GRID VERSION SINGLE-PHASE measurement method: with integrated shunt between terminals "L1in"...

  • Page 52: Waybox Connection Diagrams

    REV.2 - 03/2023 POWER-UP AND COMMISSIONING PLUG&PLAY PRODUCT Power-up the product. > FIXED RED SERVICE LED: powered and operational - Active communication and data transmission to Waybox. > Flashing RED SERVICE LED (Fast blink): Modem Power Line fault. > BLINKING RED SERVICE LED (Slow blink): Measurement Unit fault. >...
  • Page 53 REV.2 - 03/2023 IT GRID COMPATIBILE VERSION...

  • Page 54: Three-Phase Waymeter

    Relative humidity: 5% ÷ 95% not condensed > Altitude: <= 4000 m > Overvoltage class: II > Pollution degree: 2 > Insulation class: II > RED 2014/53/UE Directive CE Mark Product distributed by Enel X Way, Via Ostiense 131L, 00154, Rome, Italy...
  • Page 55 REV.2 - 03/2023 POWER > Connection: > Standard Version: Feed the product with terminals “T” and “N”, the same that are used for the voltage measurement. > IT GRID Version: Feed the product with terminals “T” and “R”, the same that are used for the voltage measurement.

  • Page 56: Installation

    REV.2 - 03/2023 USER INTERFACE: > LED Service: Power on Service LED (red) > Button: For initial configuration and Reset. STANDARDS Art. 3.1a Safety: EN 61010-1:2010/A1: 2010, EN EN 61010-2-30:2010 > Art. 3.1b EMC: EN 55032:2015/A11:2010, EN 55035:2017/A11:2010, EN 61000-3-2:2019, >...
  • Page 57 REV.2 - 03/2023 1. Please, read the safety warnings provided with the Waymeter before performing any operation on the product. Safety warnings is included in the package. 2. Install the product in an electrical panel accessible only by qualified personnel 3.
  • Page 58 REV.2 - 03/2023 5. Connections. STANDARD VERSION It is recommended to install one circuit breaker 3P+N with a fuse (max 6A) for each phase, The "split core" for protection of the transformer has a electrical circuit. window opening of The Circuit Breaker must 10mm/0.39”...
  • Page 59 REV.2 - 03/2023 other types of products is not permitted. Any replacements or repairs must be done by the manufacturer. Rating for Each Phase: Minimum Current: 100 mA. > > Reference current: 5 A. > Max Current: 60 A. > Max Power: 13.8 kW.
  • Page 60 REV.2 - 03/2023 IT GRID VERSION Three-phase IT system without Neutral, with phase-to-phase voltage 230V. It is recommended to install one circuit breaker 3P with a fuse (max 6A) for each phase, The "split core" for protection of the transformer has a electrical circuit.
  • Page 61 REV.2 - 03/2023 T" and "R” are also used for the single-phase power supply of the device Amperometric transformers: To be applied on the cables of the 3 phases, as per the wiring diagram beside. Pay attention to the “K → L” marking on the transformers themselves. Pay attention to the terminals for connecting the current transformers which refer to the primary circuit.
  • Page 62 REV.2 - 03/2023 COMMISSIONING PLUG&PLAY Feed the product LED SERVICE STEADY RED: Powered and operative – Active communication and data > transmission to Waybox LED SERVICE FAST BLINK RED: Fault on Power Line Modem. > LED SERVICE SLOW BLINK RED: Fault on Measure Unit. >...

  • Page 63: Waybox Connection Diagrams

    REV.2 - 03/2023 3.3 Waybox connection diagrams STANDARD VERSION NOTE: the communication PLC – CHAIN2 (*) is on connections T- L1 and N. Way METER THREE PHASES + Waybox 1P (Three phases System) Way METER THREE PHASES + Waybox 3P (Three phases System)
  • Page 64 REV.2 - 03/2023 Way METER THREE PHASES + Waybox 1P (One phase System) (*)the chain2 protocol is customized with more data about measures than the standard one.
  • Page 65 REV.2 - 03/2023 IT GRID VERSION NOTE: PLC – CHAIN2 communication (*) takes place on connections T- L1 and R. Way METER THREE PHASES IT GRID + Waybox 1P (Three phases System) Way METER THREE PHASES IT GRID + Waybox 1P (One Phase System) (*) the chain2 protocol is customized with more data about measures than the standard one...

  • Page 66: C: Jb4Installer App Manual

    REV.2 - 03/2023 C: JB4Installer app manual...

  • Page 67: Purpose Of The Manual

    A smartphone with Android OS. > Enel Authorization - Contact your Enel X Way contact person to request authorization to use the app. A link will be sent to the email address provided to activate the account. After registration, another email will be sent to activate the account and to download and install the JB4Installers APP.
  • Page 68 REV.2 - 03/2023 Insert the credentials (registration username or email, and password) to access the profile and press Login.

  • Page 69: New Firmware Download

    REV.2 - 03/2023 4 New firmware download NOTE: To download new available firmware on the app, it’s necessary to have internet connection on your smartphone. After logging in, a pop-up will appear if a new firmware version is available. Press DOWNLOAD! and wait for the pop-up to confirm the completion of the download, then press CLOSE.

  • Page 70: Loading The Waybox Serial On The App

    REV.2 - 03/2023 5 Loading the Waybox serial on the app NOTE: The following steps require that you have an active Internet connection on your smartphone. Select the + ADD SERIAL button, enter the serial number or scan the QR code by pressing SCAN and use the camera to scan the Waybox QR code.
  • Page 71 REV.2 - 03/2023 20PK10T2J04BB00012...

  • Page 72: Connecting The Waybox To The App

    REV.2 - 03/2023 6 Connecting the Waybox to the App NOTE: The following steps do not require an active Internet connection on your smartphone. 1. If Wi-Fi is turned on on your smartphone, turn it off 2. Click on the item with the S/N of the Waybox. 3.
  • Page 73 REV.2 - 03/2023 5. Enable the Wi-Fi and connect to the Waybox Wi-Fi (the name of the Wi-Fi is Waybox- XXX, whereas XXX are the last three digits from the Serial Number).
  • Page 74 REV.2 - 03/2023 6. Wait for the Waybox Wi-Fi connection to be established. The process will be completed after all the symbols appear.

  • Page 75: Firmware Update

    REV.2 - 03/2023 7 Firmware Update NOTE: The following steps do not require an active Internet connection on your smartphone. To update the Waybox firmware: 1. Click the FIRMWARE UPDATE button;...
  • Page 76 REV.2 - 03/2023 2. If a new firmware version is available, update the firmware by clicking on the UPDATE button; NOTE: if the firmware is already updated it is possible to Force Update clicking on the relevant button shown in the above picture. 3.
  • Page 77 REV.2 - 03/2023 4. Press CLOSE to exit from the firmware update stage.

  • Page 78: Waybox Connectivity Check For Cellular Versions

    REV.2 - 03/2023 8 Waybox Connectivity Check for Cellular Versions 1. Click the DIAGNOSTICS button; 2. Select the MODEM button; 3. Click on the START MONITORING button; 4. Click OK;...
  • Page 79 REV.2 - 03/2023 NOTE: The signal measured in dBm can be displayed in the Signal Strength field. The minimum signal for which the Waybox has sufficient connection to connect online is -85 dBm (an example with poor connectivity is shown in the figure (indeed, -109 < -85). 5.

  • Page 80: Waybox Configuration

    REV.2 - 03/2023 9 Waybox Configuration NOTE: The following steps do not require an active Internet connection on your smartphone. 1. Select CONFIGURATION to enter in the Way Box Configuration Menu; 9.1 Configuration of the “Supply System” Parameter This configuration must be made in case of the installation of a three-phase Waybox on a single-phase or bi-phase supply system.

  • Page 81: Wi-Fi Configuration

    REV.2 - 03/2023 9.2 Wi-Fi Configuration To configure a Waymeter select the Wi-Fi tab and fill in the required sections. 1. Select the Wi-Fi tab. 2. Select the Wi-Fi Scan button. 3. Select the WI-FI network. 4. Enter the password. 5.

  • Page 82: Waymeter Configuration (For Waybox Pro)

    REV.2 - 03/2023 9.3 Waymeter Configuration (for Waybox Pro) To configure a Waymeter select the C2G tab and fill in the required sections (Enable, DU, KEY, CONTRACTUAL POWER): 1. Select the C2G tab. 2. Select the Enable tab and then set the value to True.

  • Page 83: Configuration Of The Waybox In Standalone Mode

    REV.2 - 03/2023 7. Check in the diagnostics section that the communication between the Waybox and the Waymeter is working properly (C2Engine and C2G Powerline should be green with the word OK). 9.4 Configuration of the Waybox in Standalone Mode NOTE: Follow this...

  • Page 84: Configuration Of The Waybox In Absence Of Cellular Connectivity

    REV.2 - 03/2023 9. 5 Configuration of the Waybox in Absence of Cellular Connectivity NOTE: The following steps do not require an active Internet connection on your smartphone. NOTE: You can configure the following parameters only if the station has not been commissioned yet.
  • Page 85 REV.2 - 03/2023 9. 5.2 MAXIMUM CURRENT CONFIGURATION To configure the maximum current value: 1. Select the ADVANCED tab. 2. Select the Max Current tab. 3. Set the value according to the table below. NOTE: The maximum current selected, expressed in Amps, determines the maximum charging power that can be delivered by the Waybox.
  • Page 86 REV.2 - 03/2023 4. Click SAVE. 5. Click the REBOOT button. 9.5.3 ADDING THE RFID CARD TO WHITELIST 1. Click on CONFIGURATION button;...
  • Page 87 REV.2 - 03/2023 2. Select the RFID button. 3. Click the ADD A RFID CARD button. 4. Place the RFID card on the back of your phone at the NFC reader on your smartphone.

  • Page 88: Configuration Of The Waybox In Case Of Installation On The It Network Or In Absence Of Neutral

    REV.2 - 03/2023 9.6 Configuration of the Waybox in case of installation on the IT network or in absence of neutral It will be necessary to disable GPD by following the procedure in the next paragraph, if the Waybox is installed in one of the following scenarios: Single-phase Waybox installed on the IT network.

  • Page 89: Viewing Waybox Diagnostics

    REV.2 - 03/2023 10 Viewing Waybox Diagnostics In the DIAGNOSTICS section it’s possible to view meter data such as current or power during the charging session. In the diagnostic section it’s possible to view the alarms of the Waybox.

  • Page 90: D: Web Manager Manual

    REV.2 - 03/2023 D: Web Manager manual...

  • Page 91: Procedure For Accessing The Web Manager Tool

    REV.2 - 03/2023 1 Procedure for accessing the Web Manager tool Provide power to the Waybox to turn it on and wait approx. 30 seconds for its WiFi hotspot to activate (the hotspot will activate after a beep sound from the Waybox). The hotspot remains active for 1 minute after powering on.

  • Page 92: Procedure For Setting The Waybox In "Standalone" Mode In Case Of Lack Of Connectivity And For Commissioning

    1. Power the station in a place with cellular connectivity. 2. Contact your Enel X Way local support: specifying to set the station identified with its “standalone” serial number and requesting to make all the SW updates available.

  • Page 93: Setting The Waybox Access Mode, Power, And Supply System

    REV.2 - 03/2023 3 Setting the Waybox access mode, power, and Supply System NOTE: The features described in this paragraph are only available for connected Waybox from firmware version JB3VUEV01a. To view the firmware version, you must connect to the WebManager and view the version that appears below the login fields.
  • Page 94 REV.2 - 03/2023 Access the System window (top left) to configure the Waybox access mode (plgch), maximum charging current (imax) and the Supply System. > Waybox access mode (Connect and Charge or Plug and Charge field): Connect and Charge (or Plug and Charge) On: to start a charge simply connect >...
  • Page 95 Waybox be set to standalone mode. The standalone mode does not allow use of the Enel X Way app and therefore it is not possible to monitor consumption. The Waybox works correctly even if it is in connected mode but not commissioned.

  • Page 96: Association Of The Waybox With Waymeter

    REV.2 - 03/2023 4 Association of the Waybox with Waymeter The association with a Waymeter allows the Waybox to adapt its power level based on the consumption of other devices connected to the same power line. In this way, it is possible to charge with the maximum available power while avoiding the risk of tripping the meter.
  • Page 97 REV.2 - 03/2023 3. In the fields indicated below, enter the related parameters: Model: select Waymeter from the drop-down menu. > Contractual Power: available contractual power of the meter to which the Waybox is > connected. MetID: Enter the serial ID on the meter label. >...
  • Page 98 REV.2 - 03/2023 4. When you have finished the changes, press the Save button above the settings configured in the previous point. 5. Make sure the Enable field is set to ON. 6. To verify the correctness of the configuration, make sure that the indicators C2G Engine and PWL turn green.

  • Page 99: Wi-Fi

    REV.2 - 03/2023 5 Wi-Fi NOTE: A WiFi section appears in the Web Manager tool next to the System tab. This section cannot be used at the moment.

  • Page 100: E: Procedure For Installing The External Protection Release Solution For Waybox With Control Board

    REV.2 - 03/2023 E: Procedure for installing the external protection release solution for Waybox with control board...

  • Page 101: Introduction

    REV.2 - 03/2023 1 Introduction This procedure must be followed only in case a Waybox cable version installed in Italy or in Holland or a Waybox installed according to “EV ready” technical requirements. 2 Procedure for installing the external protection release solution Connection cables for motor control Remote control BASIC AC 230V...
  • Page 102 REV.2 - 03/2023 Lmax < 1500 Control board Waybox NOTE: The power supply of the motor must be taken downstream of the protections dedicated to the Waybox. 4. Set the switch on component 5ST3054 "Basic AC 230V Remote Control" to the "RC ON"...

  • Page 103: Composition Of Siemens Protection Kits

    REV.2 - 03/2023 3 Composition of Siemens Protection Kits 1. Waybox socket version 3.7 kW CODE COMPONENT 5SL42207 Magnetothermic switch 10 kA, 2-pole, C-curve, 20A 5SM23236 Pure Residual Current Device Id=0.03 A, 2-pole, type A, 40 A 2. Waybox cable version and Waybox socket version with control board 3.7 kW CODE COMPONENT 5SL42207...
  • Page 104 REV.2 - 03/2023 5ST3054 Modular motor control BASIC version for 5SY, 5SL 5ST38206 Motor control adapter for 5SL 2P 5. Waybox socket version 22 kW CODE COMPONENT 5SL44407 Magnetothermic switch 10 kA, 4-pole, C-curve, 40A 5SM23436 Pure Residual Current Device Id=0.03 A, 4-pole, type A, 40 A 6.

  • Page 105: F: What-If Manual - Special Installation Cases

    REV.2 - 03/2023 F: What-if Manual - Special installation cases...

  • Page 106: Purpose Of The Manual And Method

    The installation manual, the installer checklist, the Web Manager procedure, the Enel X Way app user procedure, the JB4installers app, the GPD deactivation procedure, the training sessions, the video tutorials and any other official document provided by Enel X Way remain the main and indispensable source of information even for standard cases.

  • Page 107: List Of Special Installation Cases

    REV.2 - 03/2023 2 List of Special Installation Cases The following are the contextual conditions that determine a special installation case. 1. Data network with SIM is insufficient (valid for Waybox Plus Cellular and Waybox Pro Cellular). 2. Single-phase IT power grid.

  • Page 108: Data Network Signal With Sim Is Insufficient

    Is it possible to use an external antenna with a cable length < 10 m and is the signal sufficient at the point chosen for the installation? If you are authorized to use the Refer to the Waybox Pro & JB4Installers app, you must proceed Plus installation procedure with the FW update and configure and check again if the signal is your Waybox offline.

  • Page 109: Single-Phase It Power Grid

    REV.2 - 03/2023 2.2 Single-phase IT power grid Installation on IT network Are you authorized to use the JB4installers app? Follow the HW GPD Deactivation Please refer to the relevant Procedure procedure in the JB4Installers app manual Don't forget: 1. JB4Installers App 2.

  • Page 110: Customer Smartphone Connectivity Not Adequate

    The Customer, with the Commission the Waybox using its serial support of the installer, will number and Enel X Way app in an area be able to proceed with the away from the Waybox where there is commissioning of the Waybox connectivity.

  • Page 111: Lockable Garage With Shutter (Or Other Type) That Weakens Signal

    REV.2 - 03/2023 2.4 Lockable garage with shutter (or other type) that weakens signal The installation takes place in a lockable garage with shutter Is the connection with the shutter closed sufficient after installation? STOP Install the antenna as described in the Waybox installation procedure...

  • Page 112: Single-Phase Tt/Tn Power Grid

    REV.2 - 03/2023 2.5 Single-phase TT/TN power grid The installation is on TT/TN single-phase grid with 230 VAC voltage. Power up to 3.7 kW, 16A? Power up to 7.4 kW, 32 A Magnetothermic switch: Curve Magnetothermic switch: Curve C; C; ICC=10kA; In=20A; 2-pole ICC=10kA;...

  • Page 113: Three-Phase Tt/Tn Power Grid

    REV.2 - 03/2023 2.6 Three-phase TT/TN power grid The installation is on TT/TN three-phase grid with 400 VAC voltage. Power upt to 22kW, 32A Not applicable Magnetothermic switch: Curve C; ICC=10kA; In=40A; 4-pole Residual Current Device: Type A; Id=30mA; In=40 A; Poles:4 Don't forget: installation prerequisites in the...

  • Page 114: Single-Phase Tt Electrical Grid Without Neutral

    REV.2 - 03/2023 2.7 Single-phase TT electrical grid without neutral The installation takes place on a single-phase TT grid without neutral (Waybox installed between 2 phases with 220/230 V linked voltage) Are you authorized to use the JB4installers app? Please refer to the relevant Follow the HW GPD Deactivation...

  • Page 115: Ev Ready Installation

    External Protections 2. Siemens motor for MCB control 2.10 Waybox with Load Optimization Pro (without photovoltaics) Waybox Pro (thus compatible with Waymeter) Is the user system (distribution and power) compatible with the Waymeter technical specifications? Refer to the Load Optimization...

  • Page 116: Waybox With Load Optimization Pro (With Photovoltaics)

    REV.2 - 03/2023 2.11 Waybox with Load Optimization Pro (with photovoltaics) You want to take advantage of the Load Optimization Pro feature and you have a photovoltaic system installed Is it possible to leave the photovoltaic system upstream of the main switch and Waymeter? special case No.9 Load Optimization Pro feature not...

  • Page 117: Renault Zoe, Smart 22 Kw, Twingo Electric

    REV.2 - 03/2023 2.13 Renault Zoe, Smart 22 kW, Twingo Electric Does the Customer own a Renault Zoe, Smart 22 kW or Renault Twingo Electric? The resistance of the earthing system is < 100 Ohm and the voltage between live and neutral is less than 10 V RMS and The distribution system is not IT Is it necessary to install a transformer Follow the...

This manual is also suitable for:

Waybox plusWaybox pro midWaybox plus mid

Table of Contents
