1. Read the Safety Warnings manual inside the packaging.
2. Install the product in an electrical cabinet that is accessible only to qualified personnel.

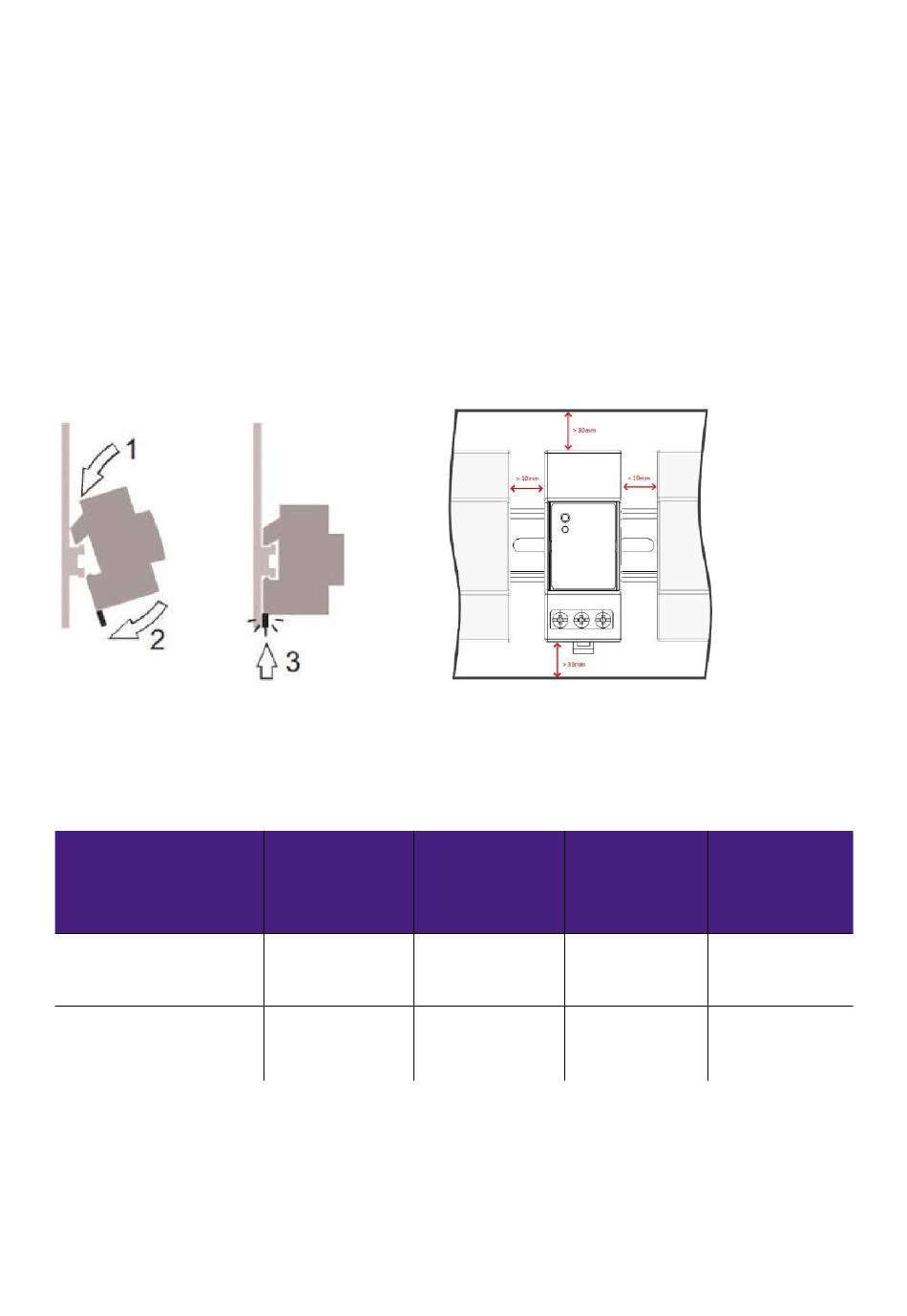

3. DIN rail mounting.
>
The product must be installed in a vertical position on a 35mm DIN rail, with the screw
terminal facing downwards.
>
Leave at least 30mm of space above and below the Waymeter, and at least 10mm of
space to the right and left of the product in relation to adjacent DIN modules, to ensure
proper heat dissipation.
>
It is not recommended to install the product close to heat sources. If necessary, maintain
adequate distance between the Waymeter and such heat sources.
4. Wiring:
>
Use only flexible copper wires with the following cross sections for wiring the Waymeter
MAXIMUM PEAK
CURRENT (A)
Minimum wire
cross-section (mm
Minimum wire
cross-section (AWG)
>
Use PVC-insulated wires able to withstand temperatures of at least 80 °C. Such as
H05V2-K, AWM Style 1007, or equivalent.
>
Ensure that all stranded wires are inserted into the screw terminal to ensure good
contact.
UP TO 16 A
2.5
)
2
12
FROM 16 A
FROM 25 A
TO 25 A
TO 32 A
4
6
10
8
REV.2 - 03/2023
FROM 32 A
TO 46 A
10
6
49
