  • Page 1 Waybox Pro Waybox Plus User Manual ENGLISH...

  • Page 2: Table Of Contents

    In this document 1. Notes 2. Getting to know your Waybox 3. Waybox Modes 3.1 Connect & Charge Mode 3.2 Unlock To Charge Mode 4. Getting Online 4.1 Getting Waybox online using cellular connectivity 4.2 Association with a second account using Cellular connectivity 4.3 Getting Waybox online using Wi-Fi connectivity 4.4 Add a Waybox already connected to Wi-Fi 5.

  • Page 3: Notes

    The information contained in the manual and all related rights are owned by Enel X Way. Any use not strictly necessary for operating the product, or not otherwise authorized, is prohibited.

  • Page 4: Getting To Know Your Waybox

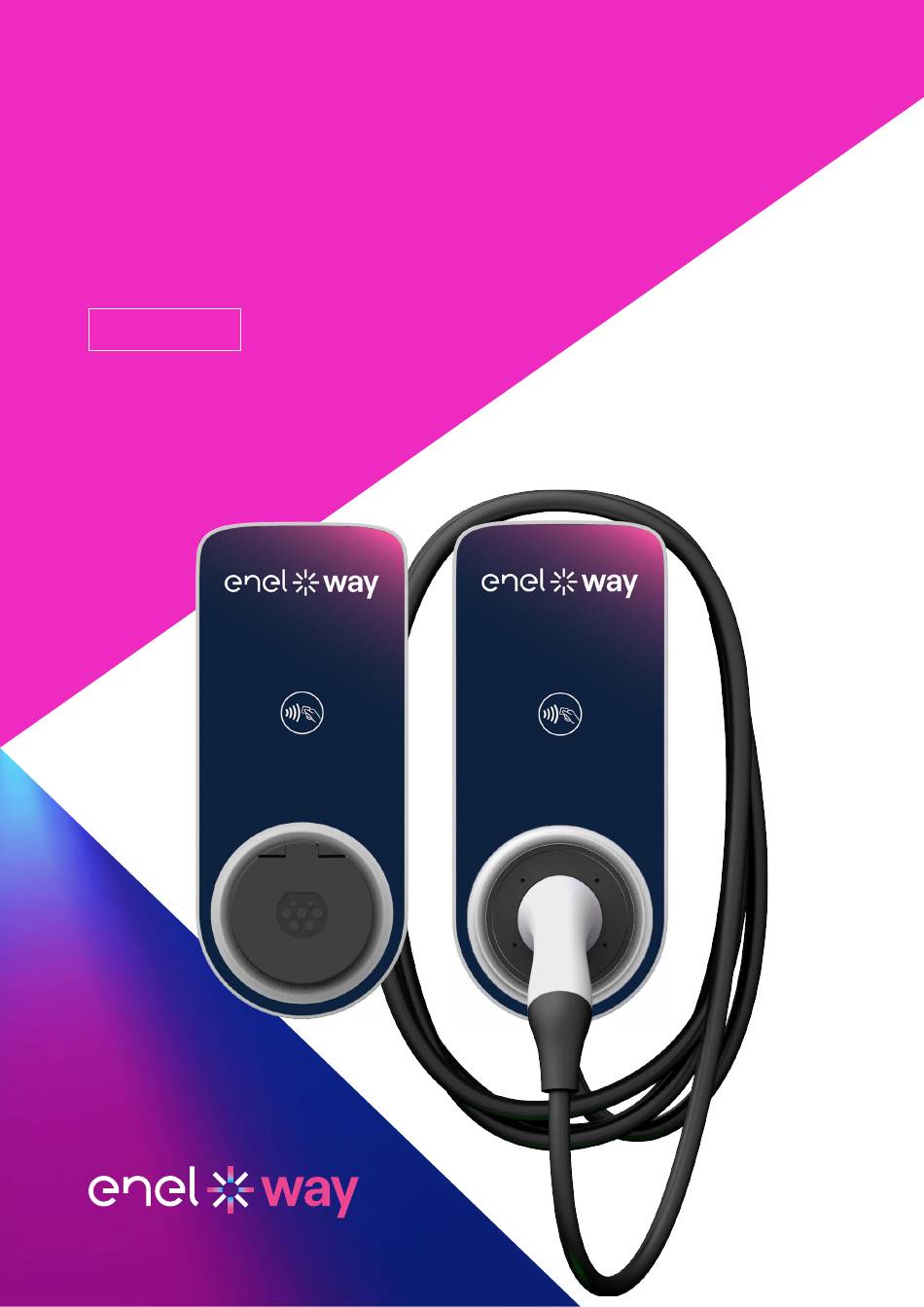

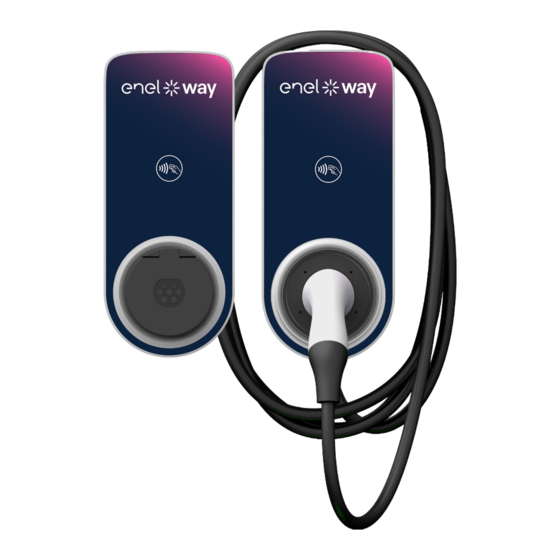

    Waybox is the innovative home charger that makes your charging experience smart, reliable, and cost-effective. This manual will guide you through the main features of your Waybox, so you can get the most out of your charging experience. WAYBOX PRO/PLUS CABLE VERSION: Cable RFID Reader LED Indicator...

  • Page 5: Waybox Modes

    Enel X Way account (as outlined in the Getting Online section). This it to your Enel X Way account (as outlined in the Getting Online section). This will allow you will allow you to remotely schedule and start charging sessions, configure the power...

  • Page 6: Getting Online

    REV. 1 11/22 4. Getting Online Your Waybox can be connected to Enel X Way smart charging platform through either a Wi-Fi or cellular internet connection. This allows you to control your Waybox anytime, from anywhere, using the Enel X Way App.
  • Page 7 REV. 1 11/22 2. Select START CONFIGURATION.
  • Page 8 REV. 1 11/22 3. Scan or insert the serial number of your Enel X Way Waybox™. Once done, click on the arrow to proceed. Note: The serial number is on the label on the right side of your Enel X Way Waybox™.
  • Page 9 REV. 1 11/22 4. Select Add via cellular connectivity and click CONTINUE to proceed.
  • Page 10 Always remember that your car is able to limit or reduce the charging power. Note valid for Waybox Pro, Pro Cellular: If a Waymeter enables Load Optimization Pro functionality (available only for Waybox Pro, Pro Cellular), the maximum power delivered by the Waybox will be the lower number between the cap set during the Waymeter’s...
  • Page 11 REV. 1 11/22 6. Select the mode of use of your Waybox, choosing between Connect & Charge or Unlock To Charge. Then click on the arrow to proceed. Note: For more information on the modes of use, refer to the section Charging your NOTE: For more information on the modes of use, refer to the section Charging your vehicle.
  • Page 12 X Way Card section and follow the steps on screen. Note: If the Enel X Way Waybox™ is set in Unlock To Charge and no RFID card is NOTE: If the Waybox is set in Unlock To Charge and no RFID card is registered, it is still...

  • Page 13: Association With A Second Account Using Cellular Connectivity

    REV. 1 11/22 4.2 Association with a second account using Cellular connectivity 1. After launching the app, on the bottom of the main page, select Home.
  • Page 14 REV. 1 11/22 2. Select START CONFIGURATION.
  • Page 15 REV. 1 11/22 3. Scan or insert the serial number of your Waybox. Once done, click on the arrow to proceed. Note: The serial number is on the label on the side of your Waybox. NOTE: The serial number is on the label on the side of your Waybox.
  • Page 16 REV. 1 11/22 4. Select Add via cellular connectivity and click CONTINUE to proceed.
  • Page 17 REV. 1 11/22 5. Enter the PIN code needed to complete the process. The PIN code should be shared by the user who first associated the Waybox to his/her account. Note: The PIN code can be retrieved at any time by a user already associated in the NOTE: The PIN code can be retrieved at any time by a user already associated in the settings settings menu of the Waybox, in the section Sharing.
  • Page 18 REV. 1 11/22 6. You did it! Your Waybox is now connected to your account.

  • Page 19: Getting Waybox Online Using Wi-Fi Connectivity

    REV. 1 11/22 4.3 Getting Waybox online using Wi-Fi connectivity 1. After launching the app, on the bottom of the main page, select Home. 2. Select START CONFIGURATION.
  • Page 20 REV. 1 11/22 3. Scan or insert the serial number of your Waybox. Once done, click on the arrow to proceed. NOTE: The serial number is on the label on the side of your Waybox. Note: The serial number is on the label on the side of your Waybox.
  • Page 21 REV. 1 11/22 4. Select Configure new charger with Wi-Fi and click CONTINUE to proceed. Note: Before you proceed to the following step, go to the Settings of your smartphone and disable the automatic connection of the device to the known networks present in the area.
  • Page 22 REV. 1 11/22 5. Follow the onscreen instructions to connect your smartphone to Waybox’s hotspot. Once done, click on the arrow to proceed. Note: You can access the hotspot for 1 minute after the Waybox is switched on. If a device is connected to the hotspot within the minute, the hotspot will remain active for 10 minutes.
  • Page 23 REV. 1 11/22 6. Wi-Fi networks are scanned and listed on the screen. Select the network you want to connect your Waybox to.
  • Page 24 REV. 1 11/22 7. Enter the password of the selected network and select CONNECT CHARGER TO WIFI Note: Once password verification is completed, the smartphone may not reconnect NOTE: Once password verification is completed, the smartphone may not reconnect automatically to the hotspot of the Waybox. After 20 seconds, if you are not redirected automatically to the hotspot of the Waybox.
  • Page 25 REV. 1 11/22 8. Your Waybox is now connected to the Wi-Fi. Select CONTINUE to proceed to Waybox configuration. Note: At the end of this stage, the LED of the Waybox will show a red colour, Waybox NOTE: At the end of this stage, the LED of the Waybox will show a red colour, Waybox will will reset and will then blink blue for a few seconds.
  • Page 26 Note: The default power (in kW), defines the actual power delivered from the charger. Note valid for Waybox Pro, Pro Cellular: If a Waymeter enables Load Optimization Pro functionality (available only for Waybox Pro, Pro Cellular), the maximum power provided by the Waybox will be the lower number between the cap set during the Waymeter’s...
  • Page 27 REV. 1 11/22 10. Select the mode of use of your Waybox, choosing between Connect & Charge or Unlock To Charge. Then click on the arrow to proceed. Note: For more information on the modes of use, refer to the section Charging your NOTE: For more information on the modes of use, refer to the section Charging your vehicle.
  • Page 28 11. If you selected Unlock to Charge, you can also start your charging session with an RFID card. Note: You can sync an RFID card with your account at any time, in My Account > Enel X NOTE: You can sync an RFID card with your account at any time, in My Account > Enel X Way Card section, and by following the steps on screen.

  • Page 29: Add A Waybox Already Connected To Wi-Fi

    REV. 1 11/22 4.4 Add a Waybox already connected to Wi-Fi 1. After launching the app, on the bottom of the main page, select Home. 2. Select START CONFIGURATION.
  • Page 30 REV. 1 11/22 3. Scan or insert the serial number of your Waybox. Once done, click on the arrow to proceed. NOTE: The serial number is on the label on the side of your Waybox. Note: The serial number is on the label on the side of your Waybox. 4.
  • Page 31 REV. 1 11/22 5. The chargers connected to your network are listed on the screen. Select the charger to proceed. 6. Enter the PIN code needed to complete the process, then ADD TO ACCOUNT. The PIN code should be shared by the user who first associated the Waybox to his/her account.
  • Page 32 REV. 1 11/22 Note: The PIN code can be retrieved at any time by a user already associated in the settings menu of the Waybox, in the section Sharing. 7. You did it! Your Waybox is now connected to your account.

  • Page 33: Charging Your Vehicle

    > Socket version: Connect your charging cable to the Waybox Socket and to your vehicle. Charging starts automatically. Use the Enel X Way App to monitor your charging session. To do this, access the Home section. To stop charging, send a STOP command from your vehicle, then disconnect your vehicle...

  • Page 34: Unlock To Charge Mode

    Enel X Way App or a RFID card. USING THE ENEL X WAY APP TO START CHARGING IMMEDIATELY To start charging, access the Home section on the Enel X Way App and press UNLOCK. (as is screen) Plug in your vehicle within 90 seconds to start charging.
  • Page 35 REV. 1 11/22 To stop charging, select STOP CHARGING on the Enel X Way App. Charging stops automatically and the charging cable can be removed. Note: It is also possible to issue a STOP command from the vehicle.
  • Page 36 Enel X Way Card section and by following the steps on screen. > The Enel X Way Card will allow you to start your charging session if:Waybox has been paired with your Enel X Way account (as indicated in the Getting Online section).

  • Page 37: Charging History

    To stop charging, tap your card against the RFID reader on the Waybox. Charging stops automatically and the charging cable can be removed. Note: It is also possible to issue a STOP command (from the Enel X Way App or from the vehicle).

  • Page 38: Settings

    REV. 1 11/22 7. Settings You can access the Waybox page in the following way: Select Home on the bottom of the main page, then click on the settings symbol.
  • Page 39 Configuration: select the mode of use and the maximum power of the Waybox NOTE VALID FOR Waybox PRO, PRO CELLULAR, START AND START CELLULAR ONLY: Note valid for Waybox Pro, Pro Cellular: If a Waymeter enables Load Optimization Plus If a Waymeter enables Load Optimization Plus functionality (available only for Waybox...

  • Page 40: Led Indicator

    > Waybox issue (e.g. Smart Charging profile set, current available from Load Optimization < 6A) > Solid (fast blink): Enel X Way Card not authorized, or vehicle was not plugged in in time > Blinking: Error > Solid (temporary): Waybox being switched on or...

  • Page 41: The Colour Of Sustainability

    REV. 1 11/22 9. The colour of sustainability Your Waybox Plus and Pro has been produced with recycled plastic materials derived from the recycling of the ENEL group's meter shells that are being discarded. The special manufacturing process foresees that the recycled plastic materials are mixed with materials loaded with glass fibre to guarantee mechanical, thermal and fire resistance equal or superior to an equivalent production deriving from the use of virgin polymer.
