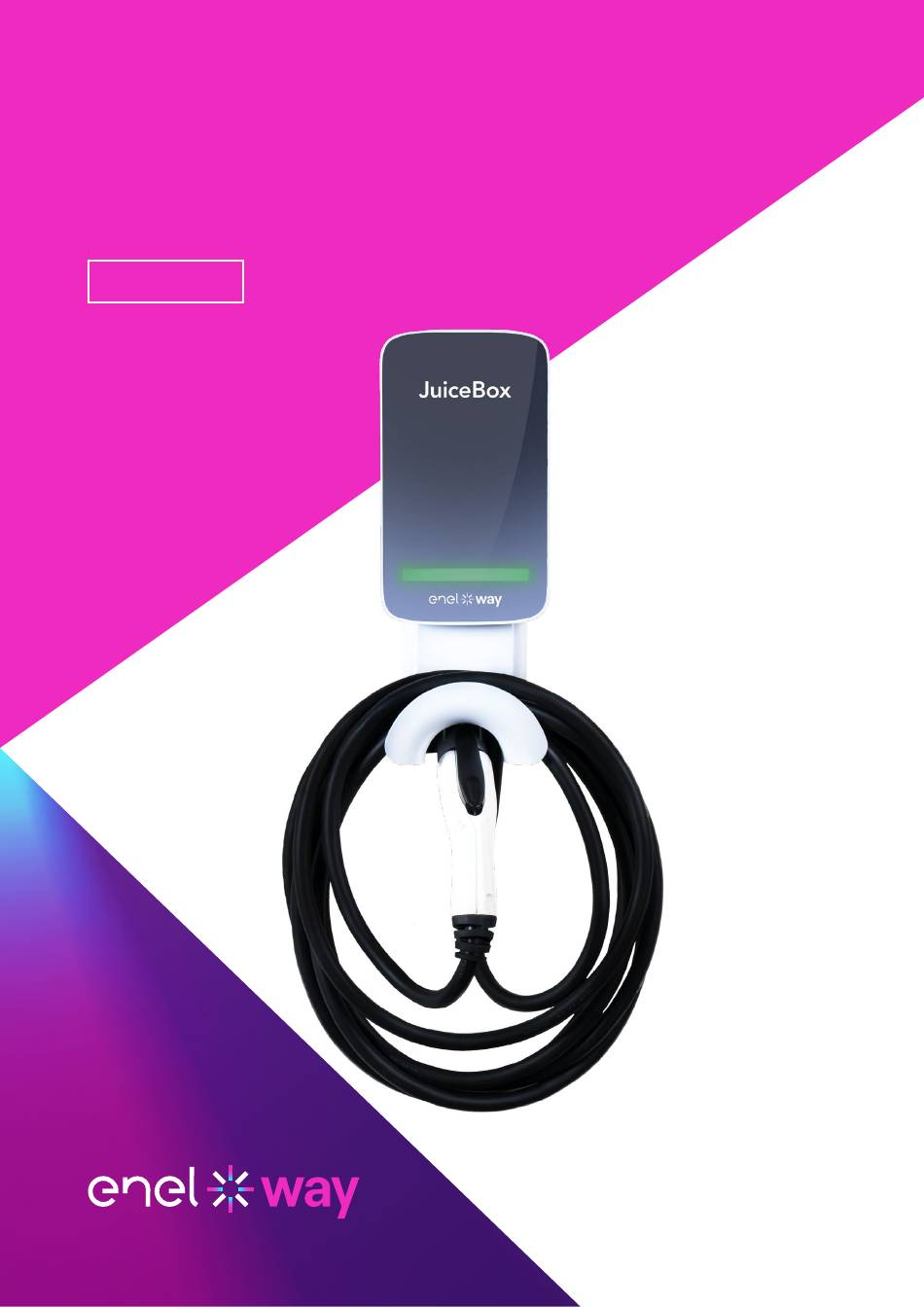

- Page 1 Next Gen JuiceBox User Manual ENGLISH...
-
Page 2: Table Of Contents
Table of contents Welcome to JuiceBox Package Contents Required Tools Installation Installation Prerequisites Installation Load Balancing Locking Your JuiceBox Wi-Fi Setup Wi-Fi Setup - Mobile Device Wi-Fi Setup - Personal Computer Pairing Alexa Specifications Characteristics Connectivity Dimensions LED Indicator Important Safety Information... -
Page 3: Welcome To Juicebox
Welcome to JuiceBox Package Contents > JuiceBox NOTE: In some markets, JuiceBox arrives secured to a cable holder that includes keys. > Wall bracket > 2 wall bracket screws (#10 self-tapping Phillips head wood screws) > 2 screws to hang JuiceBox onto wall bracket (#10-32 Phillips head machine screws). Required Tools >... -
Page 4: Installation
Installation Installation Prerequisites JuiceBox requires either a hardwired electrical connection or a NEMA 14-50 outlet. The JuiceBox power supply must be connected to a circuit breaker that is rated for at least 125% of the device’s continuous load. NOTE: Ensure that all power connection wiring conforms to the rules and regulations of any national and local codes. - Page 5 Version without cable Version with cable holder holder 3. Insert the enclosure screws into the enclosure, as shown. Tighten the screws until approximately 2 mm of thread are visible. Version with cable holder Version without cable holder...
- Page 6 4. Hang the JuiceBox onto the wall bracket. NOTE: If the JuiceBox does not hang securely, adjust the screws that were installed in step 3. The 48 and 80 amp are hardwire only and do not have a plug as shown. Version with cable holder Version without cable holder 5.
-
Page 7: Load Balancing
NOTE: The hardwire versions of the JuiceBox are shipped with appropriate wires that meet the National Electric Code (NEC) NFPA 70 and require a nearby junction box connection. Any alteration of the supplied wiring will invalidate the warranty and may not conform to NEC. COLOR SIGNAL Black... -
Page 8: Wi-Fi Setup
Wi-Fi Setup Wi-Fi Setup - Mobile Device For best results, perform this procedure while standing within 5 ft (1.6m) of the JuiceBox. 1. Download and install the “EV JuiceNet” app onto your mobile device. Video walkthrough of this section 2. Log into the EV JuiceNet app. If you do not have an account, create one. 3. - Page 9 4. Select Connect Now.
- Page 10 5. Have the Wi-Fi network password ready, then disconnect power from the JuiceBox. In the app, select Next. 6. Connect power to the JuiceBox. In the app, select Next.
- Page 11 NOTE: After powering the JuiceBox, steps 7 through 10 must be completed within 2 minutes. 7. Navigate to the Wi-Fi settings on your mobile device. Connect to the “JuiceBox-###” or “JuiceNet-###” Wi-Fi network. If the network requires a password, use the password “GoElectric”...
- Page 12 8. Return to the EV JuiceNet app. 9. In the EV JuiceNet app, select the preferred local Wi-Fi network. 10. Enter the Wi-Fi network password, if necessary, then select Done / Connect JuiceNet device to Wi-Fi.
- Page 13 NOTE: If prompted, verify the password, then select Done / Password is correct. The app connects the JuiceBox to the Wi-Fi network.
- Page 14 11. After the app confirms that Wi-Fi setup is complete, select Next to continue to the app home screen. NOTE: After connecting, JuiceBox checks its firmware version and performs any necessary updates. Wait 10 minutes before plugging in a vehicle. NOTE: Customize your experience by following the onscreen app instructions to select your vehicle and charging profile, or navigate to the JuiceNet dashboard on a personal computer at...
-
Page 15: Wi-Fi Setup - Personal Computer
Wi-Fi Setup - Personal Computer CONNECT TO WI-FI 1. Unplug the JuiceBox, then plug it back in. NOTE: The following steps must be completed within 2 minutes of plugging in the JuiceBox. 2. Open the Wi-Fi settings on your personal computer. Connect to the "JuiceBox-###" or "JuiceNet-###"... - Page 16 NOTE: After connecting, JuiceBox checks its firmware version and performs any necessary updates. Wait 10 minutes before plugging in a vehicle. SET UP JUICENET DASHBOARD 1. Log into the dashboard. 2. Select Add JuiceNet Device. 3. Enter the JuiceNet ID and select Add JuiceNet Device. NOTE: JuiceNet detects and displays all devices on the local network.
- Page 17 4. In the lefthand navigation menu, select My JuiceNet > My JuiceNet Devices. 5. Locate the appropriate device and select MORE DETAILS. 6. Select Settings. 7. Enter the device name, address, and timezone, then select Update.
-
Page 18: Pairing Alexa
Pairing Alexa Refer to Pairing Alexa for more details. Specifications Characteristics 32A max: Up to 7.7 kW, 32A, 1-phase 40A max: Up to 9.6 kW, 40A, 1-phase OUTPUT POWER 48A max: Up to 11.5 kW, 48A, 1-phase 80A max: Up to 19.2 kW, 80A, 1-phase INPUT VOLTAGE 208 or 240 VAC CHARGING MODE... -
Page 19: Connectivity
Connectivity WI-FI IEE 802.11b/g/n 2.4 GHz (OPTIONAL) LTE (CAT-1)Bands B2, B4, B5, B12/B13 CELLULAR Bands B2 (1900), B5 (850); PTCRB and GCF certification Dimensions... -
Page 21: Led Indicator
LED Indicator COLOR PATTERN MEANING Blue Flashing Setup Mode Booting after power Solid (Note: During booting, solid Yellow may be followed by Purple before going to Setup Mode) Yellow Vehicle plugged in, not charging Flashing (Note: EV not ready to charge or charging suspended (ToU) or in earlier releases: charging finished) White... -
Page 22: Important Safety Information
Important Safety Information Read all safety information before installing this product. WARNING: This device should be supervised when used around children. WARNING: Do not put fingers into the electric vehicle connector. WARNING: Do not use this product if the flexible power cord is frayed, has broken insulation, or shows any other signs of damage.
