POWER-UP AND COMMISSIONING
PLUG&PLAY PRODUCT
Power-up the product.
>
FIXED RED SERVICE LED: powered and operational - Active communication and data
transmission to Waybox.
>
Flashing RED SERVICE LED (Fast blink): Modem Power Line fault.
>
BLINKING RED SERVICE LED (Slow blink): Measurement Unit fault.
>
SERVICE BUTTON: Reset button for the device (press for at least three seconds to restart
the device without performing an on-off cycle).

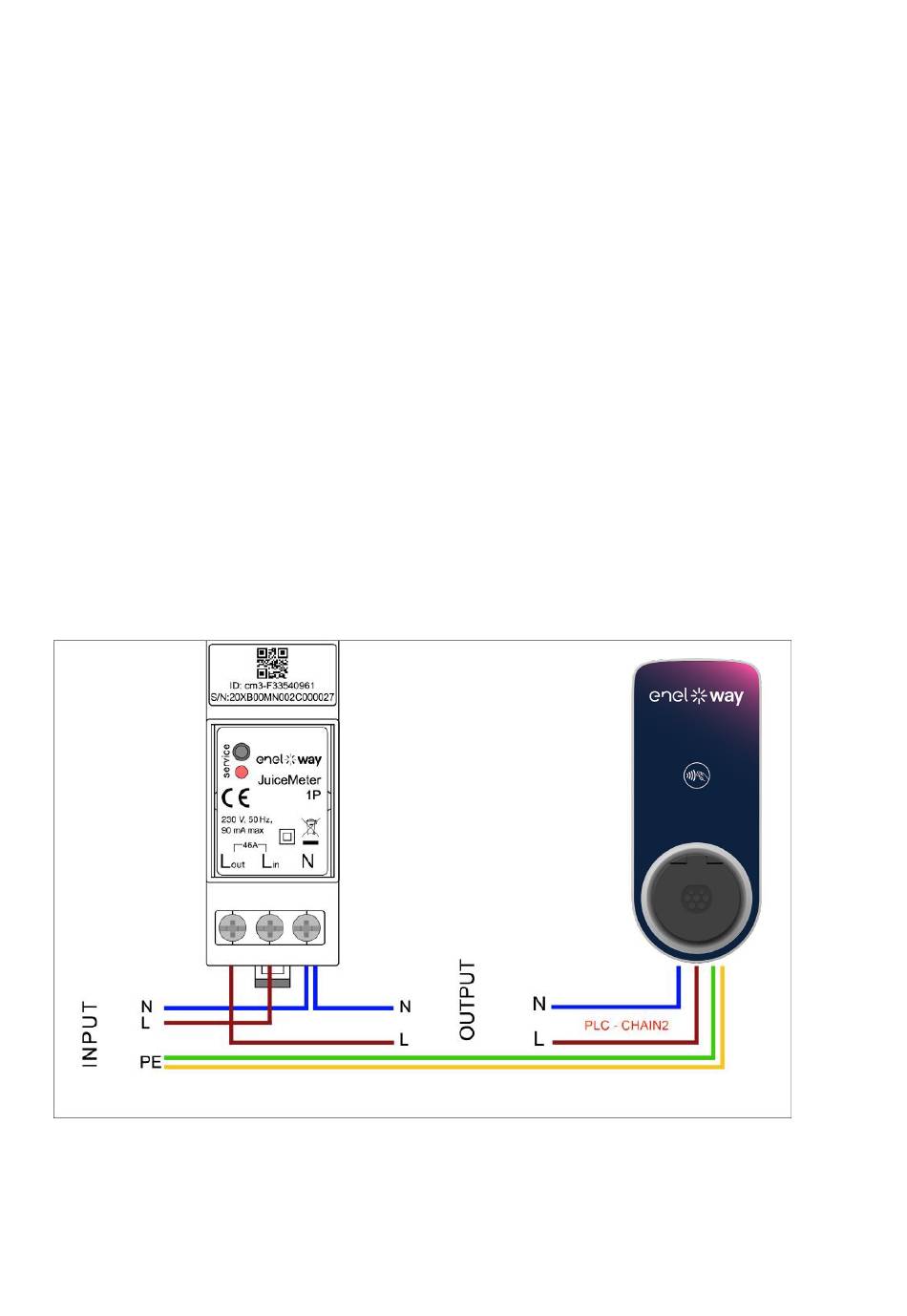

2.3 Waybox connection diagrams
STANDARD VERSION
NOTE:
PLC - CHAIN2 (*) communication takes place on connections L and N.
(*) The chain2 protocol is customised with more measurement data than the standard one.
