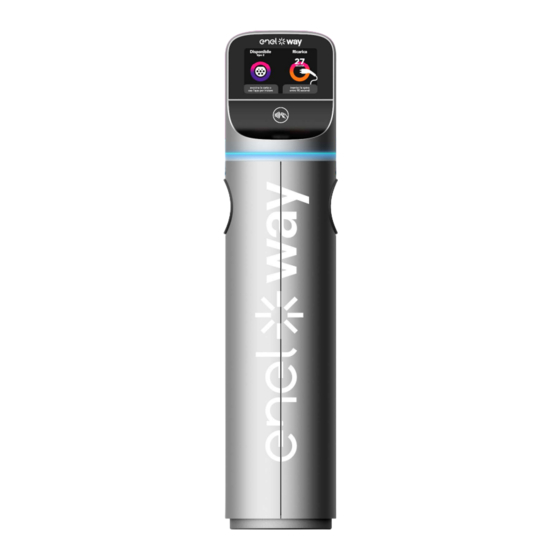

Enel X Waypole Installation Manual
Hide thumbs Also See for Waypole:

Advertisement

Quick Links

Waypole
Installation Manual
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Waypole and is the answer not in the manual?

Questions and answers

Summary of Contents for Enel X Waypole

  • Page 1 Waypole Installation Manual ENGLISH...
  • Page 2: Table Of Contents

    6. Unpacking 7. The Plinth 8. Installation 8.1. Warnings 8.2. Exploded diagram 8.3. Preparing the Waypole 8.4. Placing the Waypole in position 8.5 Wiring the power supply and earth 8.6. Concluding steps 9. Final steps 10. Waypole specifications Appendix A...
  • Page 3: Purpose

    1. Purpose The purpose of this document is to describe how to install the equipment named “Enel X Way Waypole™”. 2. Field of application It is used to document installation activities for such equipment as part of an Electric Vehicle Charging System.
  • Page 4: Equipment

    4. Equipment Anyone who secures the pole to the ground and connects it electrically to the mains power must have at least the following tools: TOOL SIZE Long socket wrench for 13 mm Power terminals, 400 Vac + PE hexagon head screws Socket wrench for 17 mm Nuts for securing anchors...
  • Page 5: Material Supplied By The Manufacturer

    5. Material supplied by the manufacturer The table below lists the materials that the manufacturer supplies for each Waypole to be used for installation. REF. CODE DESCRIPTION QTY. 467015221 P. S. 4G Enel Three-phase Three-phase 467015231 P. S. 4G Enel Single-phase Three-phase 467015371 P.
  • Page 6: Unpacking

    6. Unpacking Remove the pole from its packaging (cardboard box) by sliding out the cardboard protection pieces, and then place it vertically on the paving, taking care not to damage it. Also take out the accessory material need to install the pole, and keep it carefully on-site until it is used.
  • Page 7 Take the plate with anchors out of the packaging. The plate with anchors NOTE: Obviously, this will be done a reasonably long time before unpacking the Waypole, when the civil works are carried out.
  • Page 8: The Plinth

    7. The Plinth Cables protruding at least 100 cm EXAMPLE Section of the plinth area Position the plinth where it ensures at least one metre from walls and obstacles to the sides of the pole (sides with the sockets on them). Place the pole on the anchors with the “long side”...
  • Page 9: Installation

    8. Installation 8.1. Warnings CAUTION: All of the activities described in this manual must be carried out with no power connected, which must be verified in accordance with the procedures set out in the regulations in force.
  • Page 10: Exploded Diagram

    8.2. Exploded diagram Below there is an exploded diagram of the installation.
  • Page 11: Preparing The Waypole

    8.3. Preparing the Waypole Once you have removed the pole from its packaging and placed it vertically on the paving, it is necessary to prepare it for installation, while taking care not to damage it. Remove the protective transparent film from the stickers on the front and rear of the head.
  • Page 12 Use the key to open the two side panels, and temporarily place them vertically on a suitable surface in a stable manner. Unscrew the 6 screws holding the front panel (without a power screwdriver), and place it to one side.
  • Page 13 Unscrew the Lexan guard from the terminal block and put it in a safe place together with the screws.
  • Page 14: Placing The Waypole In Position

    8.4. Placing the Waypole in position EXAMPLE Place the “cap unit” on the “plate with anchors” (in the direction shown), centring the 4 holes on the 4 studs (light blue arrow). Place the pole on the “plate with anchors” with the “cap unit”...
  • Page 15 Fasten it to the ground with washers and nuts (x 4) (violet arrows). Finally, insert the drain hose into the straight hose tail (light blue arrow) and insert the loose end of the earth into the “Faston” terminal provided (yellow arrow).
  • Page 16: Wiring The Power Supply And Earth

    8.5 Wiring the power supply and earth Unscrew the metal cable clamp at one end only. Arm the 6 circuit breakers (thermal-magnetic and residual current) and connect the battery terminal.
  • Page 17 CAUTION: All the activities described in this manual must be carried out with no power connected, which must be verified in accordance with procedures set out in the regulations. Prepare the power supply cable (see Appendix B) and the main earth (with ring terminals for M8 screws) and then connect them to the terminal block.
  • Page 18 Each terminal must be connected as shown in the figure below. Base plain Layout of the washer power supply input terminal Ribbed washer (at the top). In contact with the closing nut. Area reserved for the cable terminals Power supply to inside the pole Power supply...
  • Page 19: Concluding Steps

    8.6. Concluding steps > Refit the transparent Lexan guards (light blue arrow) > Screw the front panel back on, being careful of the earth cable (yellow arrow) > Refit the side panels in position and lock them with the key (blue arrow). >...
  • Page 20: Final Steps

    The pole after closing. EXAMPLE 9. Final steps When all the steps have been completed: > check that the equipment has been anchored and closed correctly; > check that the equipment is in a “working state”; > retrieve all tools and put them away carefully; >...
  • Page 21: Waypole Specifications

    10. Waypole specifications POWER SUPPLY VOLTAGE 400 Vac Three-phase FREQUENCY 50 Hz CHARGING DATA Type 3a socket - 4 contacts L, N, PE + CP Maximum power 3,7 kW Maximum current 16 A SINGLE- = 16 A PHASE CHARGING Thermal-magnetic protection = 10 kA Type “D”...
  • Page 22 GENERAL AMBIENT TEMPERATURE -25°C to +50°C RELATIVE HUMIDITY 5% to 95% ATMOSPHERIC PRESSURE 860hPa to 1060 hPa PROTECTION LEVEL IP54 STANDARDS > EN61851-1 > EN61851-22 > EN62196-1...
  • Page 23 Appendix A The Plinth...
  • Page 24 Appendix B Four-pole Cable Terminations Earth Cable Termination...
  • Page 25 Appendix C Lock programming procedure for Waypole installed in public places REPROGRAMMING THE LOCK Insert the brass-plated nickel silver key (MASTER B) into the lock > A) Turn the lock to the neutral position (45° anticlockwise) using the brass-plated nickel silver key (MASTER B) with which it was originally programmed in the factory, and remove >...
