Chapter 4: System Setup

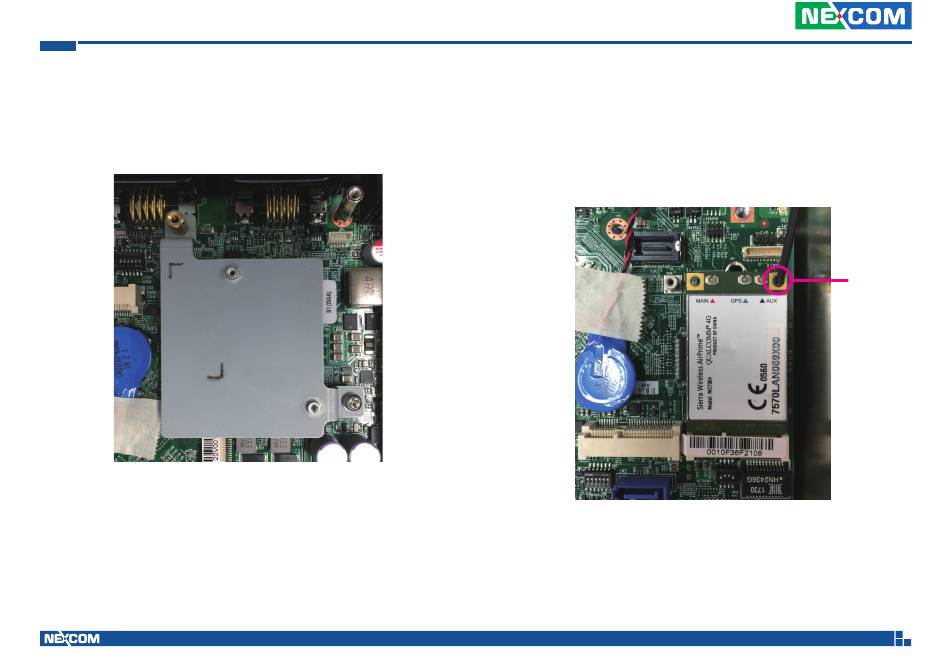

Installing a WLAN Module on Bracket

1. Locate the bracket above the RAM slot. Place the module on the bracket

then fasten screws into the mounting holes to secure the module.

1. Locate the WWAN Mini PCI Express slot (CN2). Insert the module into

the Mini PCI Express slot at a 45 degrees angle until the gold-plated

connector on the edge of the module completely disappears inside the

slot. Then fasten a screw into the mounting hole to secure the module.

Mounting

screw
