Installing a WLAN Module (Full Mini-PCIe)

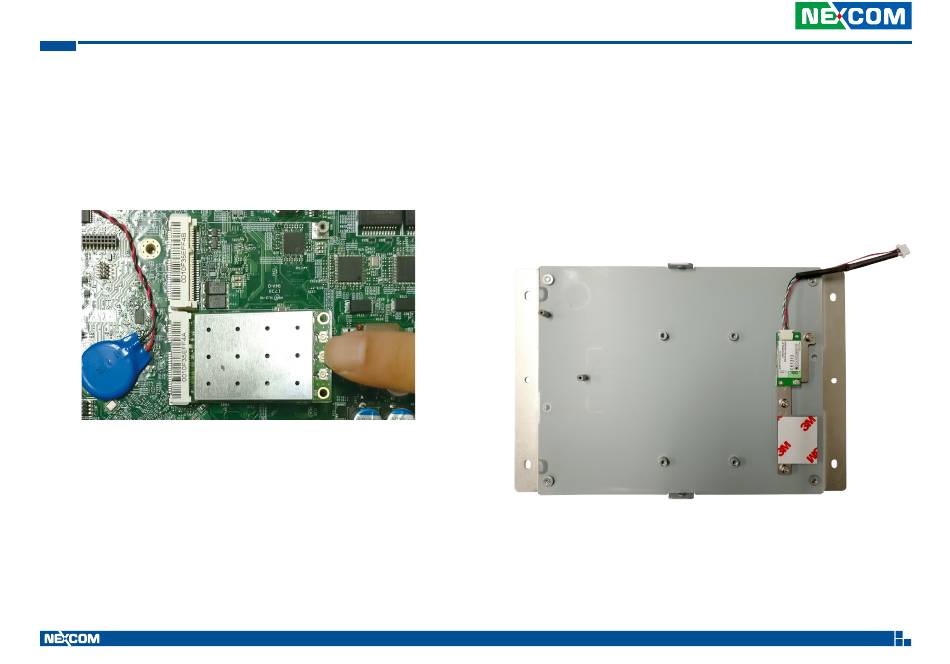

1. Locate the WLAN Mini PCI Express slot (CN9). Insert the module into the
Mini PCI Express slot at a 45 degrees angle until the gold-plated connector
on the edge of the module completely disappears inside the slot. Then
fasten screws into the mounting holes to secure the module.
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Installing a Wi-Fi Module
(LR802URN2-01 Only)
1. Place the Wi-Fi module on the bottom case then fasten screws into the
mounting holes to secure the module.
2. Connect the inner cable from the Wi-Fi module to the reserved USB
wafer (J6) connector.
