Example 1
In Figure 59, the link is between two disk drives that are in the same subsystem. It has
three parts.
SSA Subsystem
Disk Internal
Drive 1 Connection Drive 2

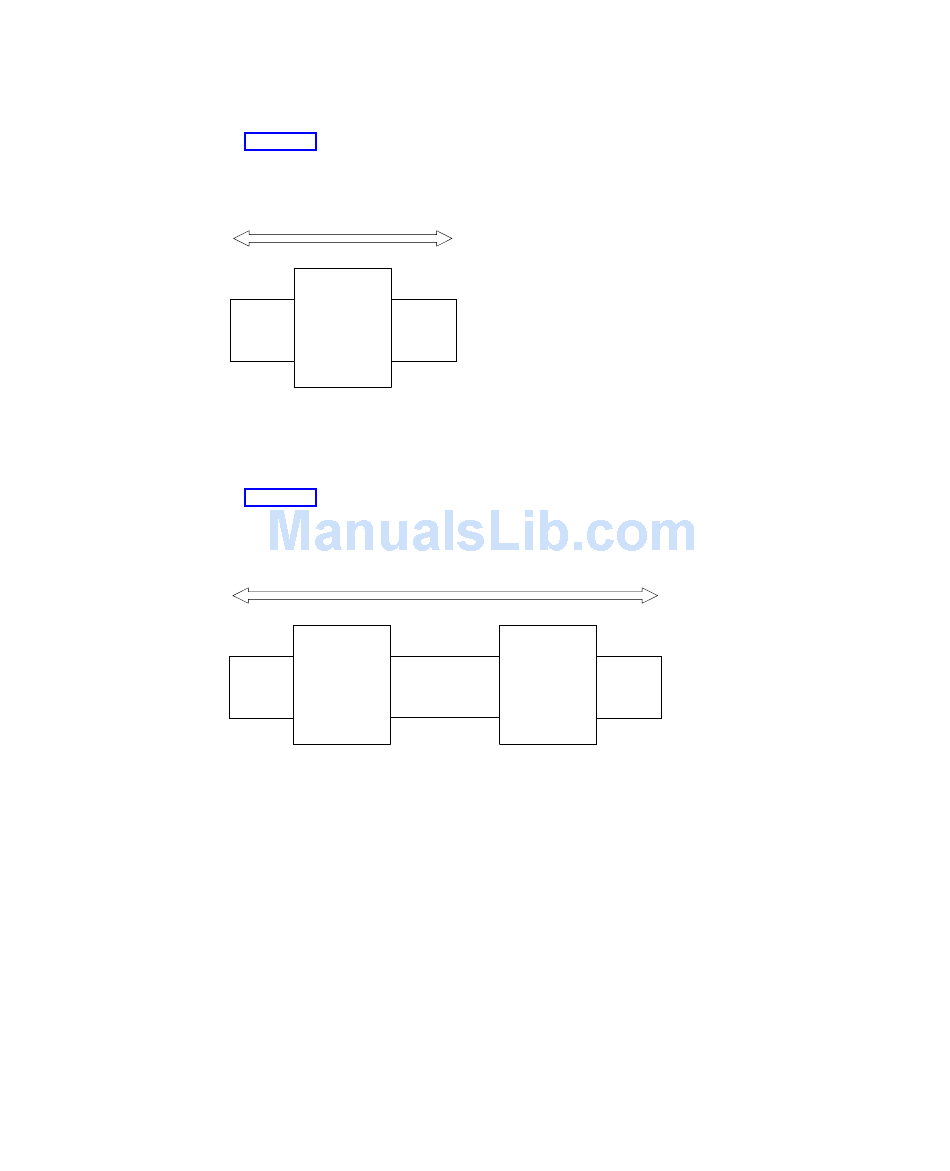

Figure 59. Three-Part Link in One Subsystem
Example 2
In Figure 60, the link is between two disk drives that are in the same subsystem. It has
five parts.
SSA Subsystem
Internal
Disk
Connection
Drive 1
Figure 60. Five-Part Link in One Subsystem
Disk
Dummy
Internal
Disk
Connection
Drive
Chapter 18. SSA Problem Determination Procedures
Disk
Drive 2
