Using the ssa_make_copy Command to Create a RAID Copy from a RAID-1 or
|
RAID-10 Array
|
|

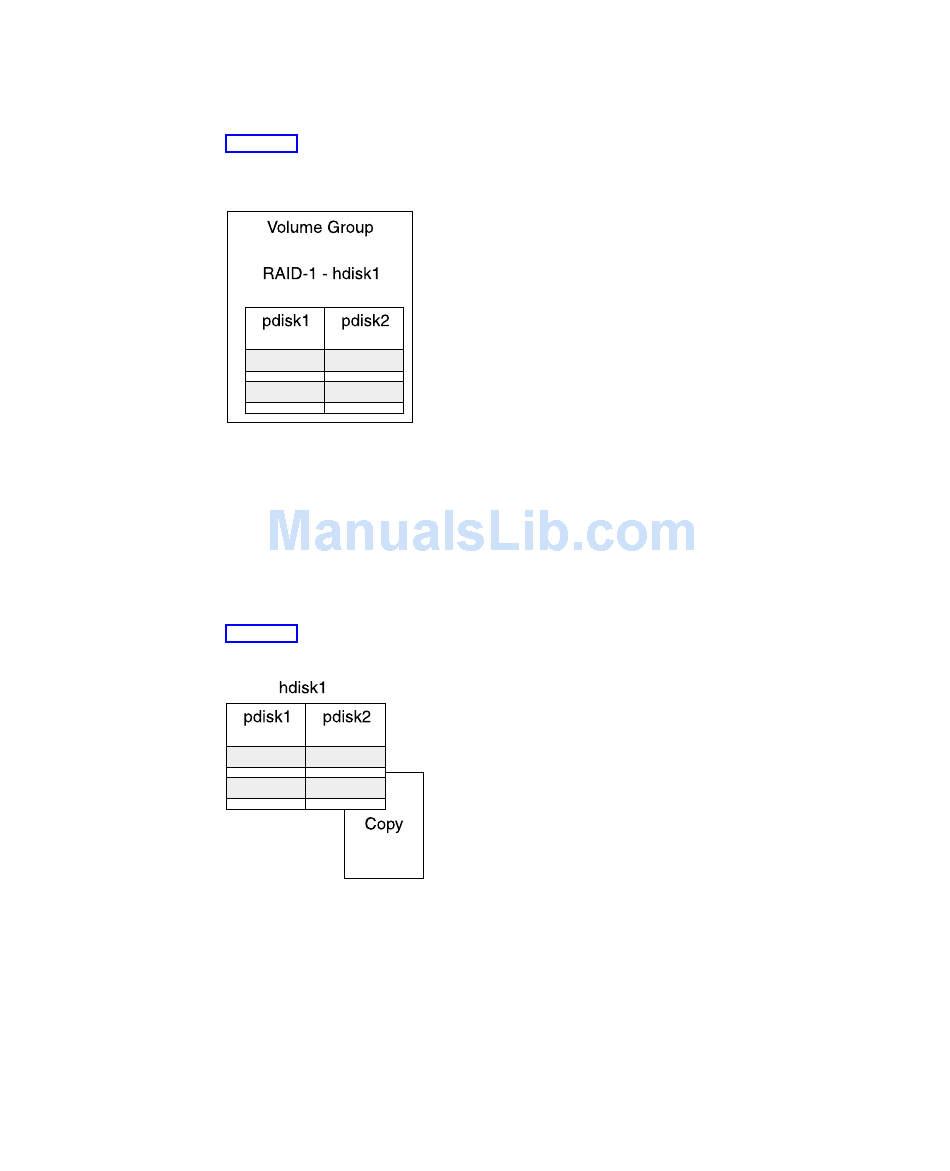

Figure 22 shows a volume group that contains one physical volume: hdisk1. This hdisk
|
is a RAID-1 array.
|
|
|
| Figure 22. A Volume Group the Contains One Physical Volume
|
| The ssa_make_copy command checks whether the hdisk is either a RAID-1 or a
|
RAID-10 array. If the array is neither of these types, the command displays a warning,
| then stops.
|
If the hdisk is of the correct type, the ssa_make_copy command finds a suitable copy
|
disk drive for RAID-1 or suitable copy disk drives for RAID-10. It then couples the copy
|
disk drive, or drives, to the parent volume group, and runs the copy operation (see
| Figure 23).
|
|
|
|
Figure 23. A Copy Disk Drive Coupled to the Parent hdisk
|
|
When the copy operation has completed and the copy array has been uncoupled, the
| fast-write cache (if present) is temporarily disabled, and data is flushed to the physical
|
disk drives. The ssa_make_copy command then forces the parent volume group to
| synchronize. The synchronize operation flushes all data from memory to disk, and stops
|
all I/O operations.
|
The command uncouples the copy disk drive from the parent hdisk, clears the PVID of
|
the copy disk drive, restarts the I/O operations, and reenables the fast-write cache.
