Large Configurations

Up to eight SSA adapters can be connected in a particular SSA loop, and up to 48 disk

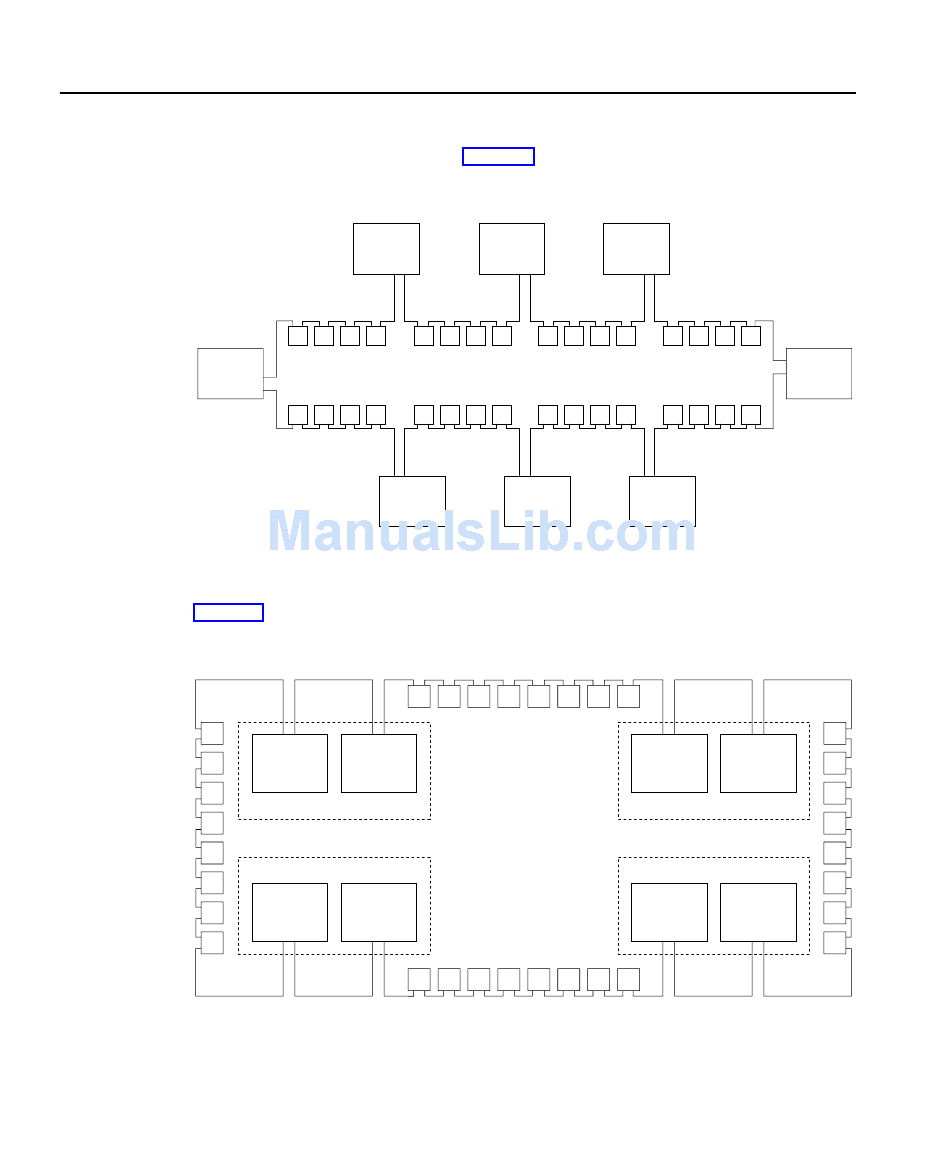

drives can be included in that loop. Figure 10 shows an example of a large
configuration that has eight adapters in eight using systems.
Adapter
Figure 10. A Large Configuration of Thirty-Two Disk Drives Connected to Eight SSA
Adapters in Eight Using Systems
Figure 11 shows an example of a large configuration that has eight adapters in four
using systems.
Figure 11. A Large Configuration of Thirty-Two Disk Drives Connected to Eight SSA
Adapters in Four Using Systems,
16
User's Guide and Maintenance Information
Adapter
Adapter
Adapter Adapter
Using System A
Using System C
Adapter Adapter
Adapter Adapter
SSA Disk Drives
Adapter
SSA Disk Drives
Adapter
Adapter
Adapter Adapter
Using System B
Using System D
Adapter Adapter
