Removing the Fast-Write Cache Option Card of an Advanced SerialRAID Adapter

Attention:
v The adapter assembly contains parts that are electrostatic-discharge (ESD) sensitive.
Use the tools and procedures defined by your organization to protect such parts.
v The Fast-Write Cache Option card might contain customer data.
1. Remove the adapter from the using system (see the Installation and Service Guide
for the using system).
2. Place the adapter card, with its components downward, onto a nonconducting
surface.
3. Refer to Figure 46.

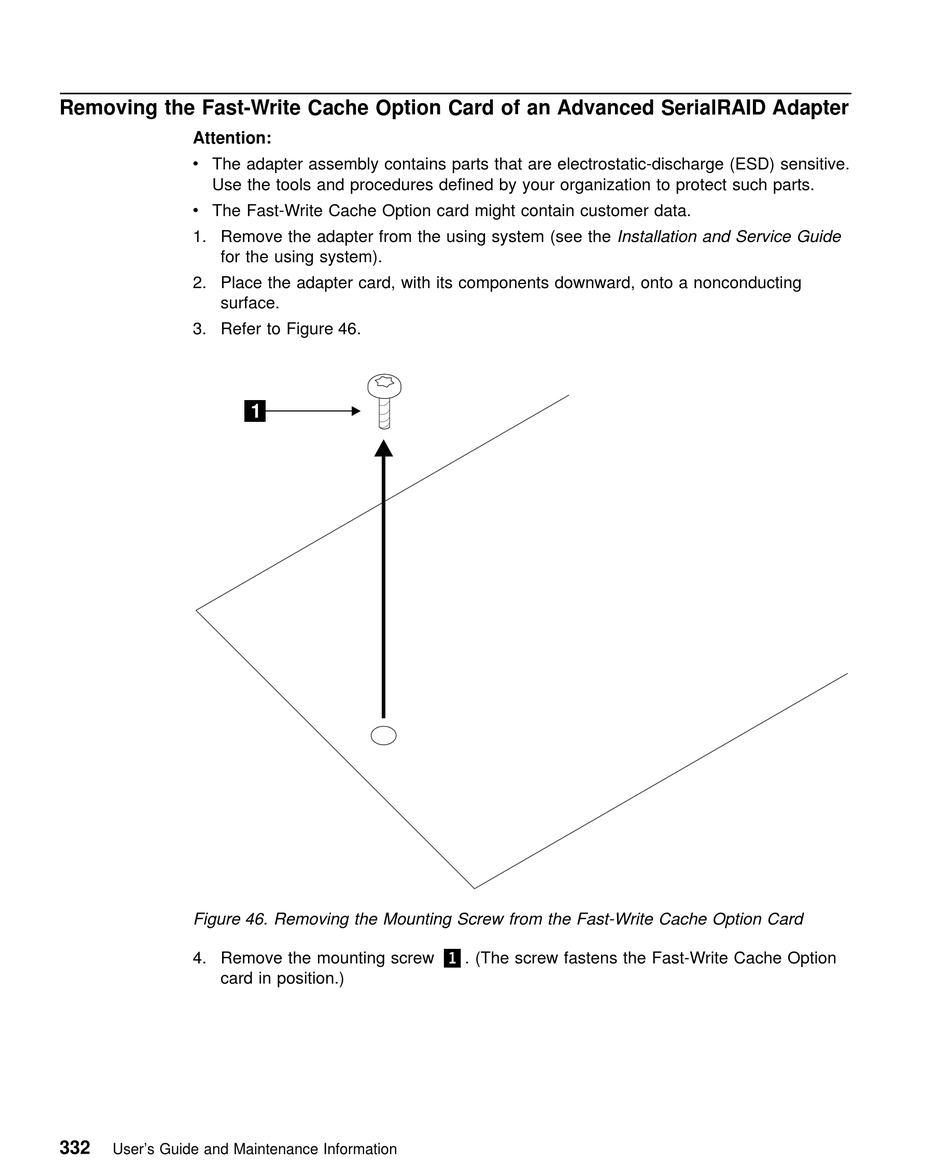

Figure 46. Removing the Mounting Screw from the Fast-Write Cache Option Card
4. Remove the mounting screw 1 . (The screw fastens the Fast-Write Cache Option
card in position.)
332
User's Guide and Maintenance Information
1
