Installing an SDRAM Module of an Advanced SerialRAID Adapter

Attention:
v The adapter assembly contains parts that are electrostatic-discharge (ESD) sensitive.
Use the tools and procedures defined by your organization to protect such parts.
v If you are exchanging a new SDRAM for a failed SDRAM, ensure that new SDRAM
is the same size as the old SDRAM. Refer to the label on each SDRAM.
1. Refer to Figure 44.

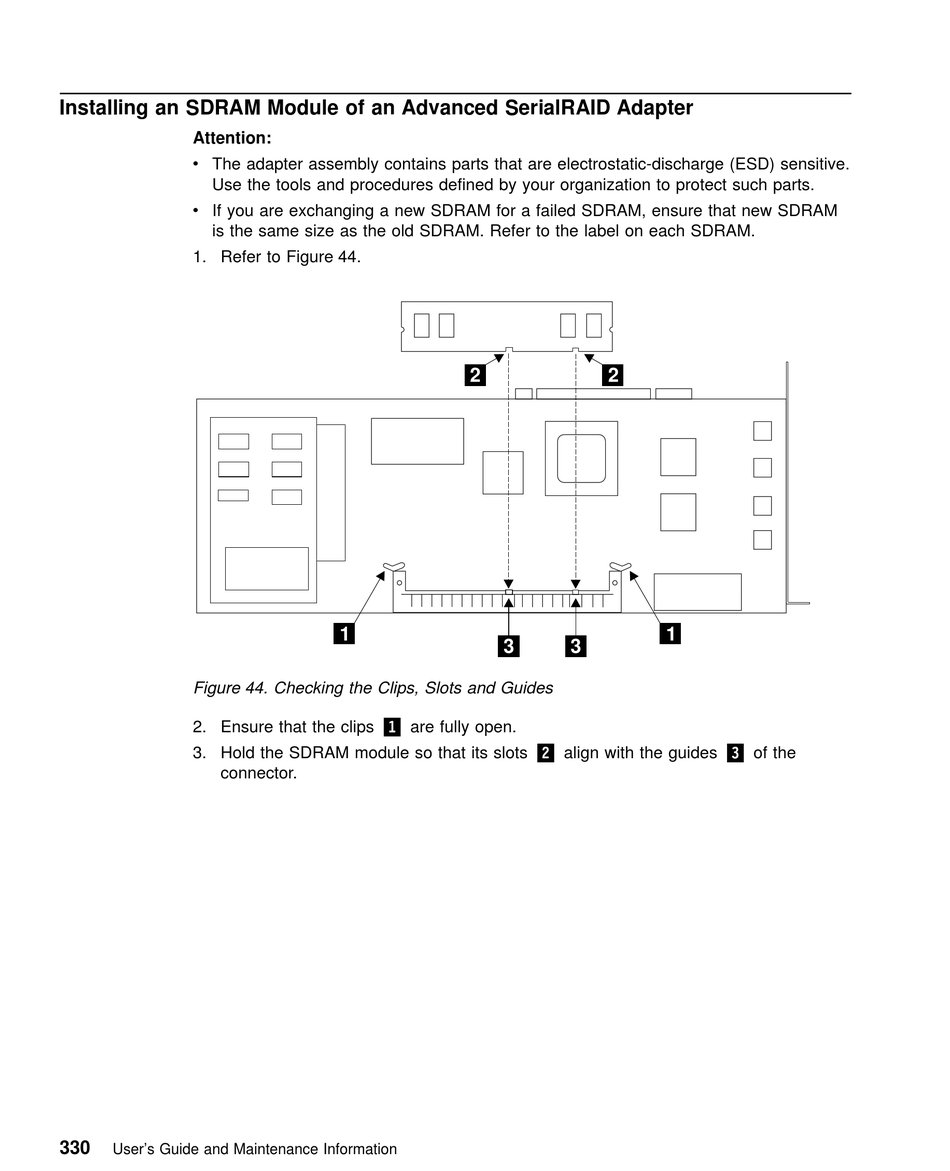

Figure 44. Checking the Clips, Slots and Guides
2. Ensure that the clips 1 are fully open.
3. Hold the SDRAM module so that its slots 2 align with the guides 3 of the
connector.
