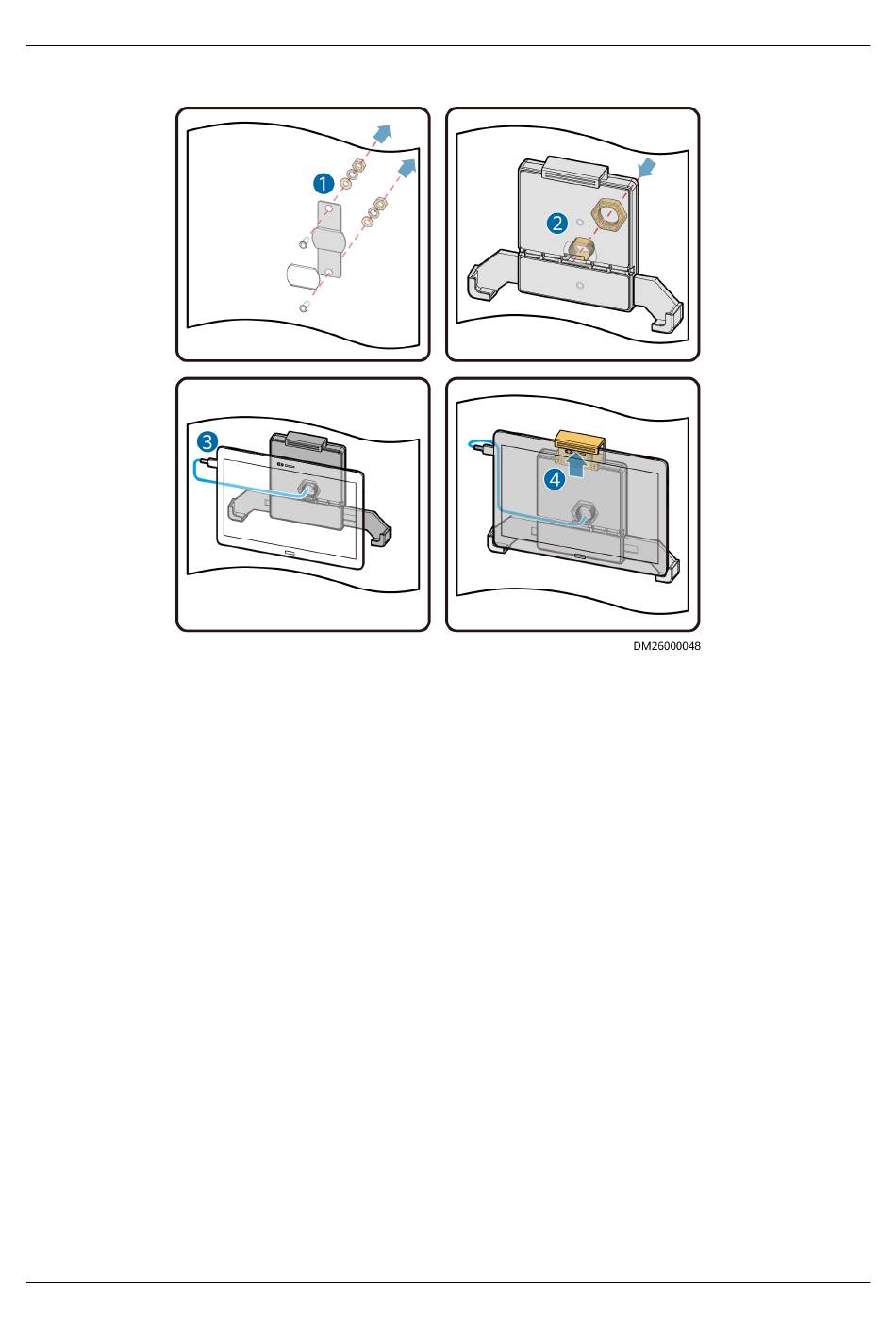

Figure 3-58 Installing a PAD
----End

3.10.4 Securing the PAD Mounting Kit

Preparations
Tool: Phillips screwdriver
Material: PAD mounting kit
Procedure
Step 1 Use three M5x10 tapping screws to secure the PAD mounting kit on the upper
part of the end cabinet of the smart module, as shown in the following figure.
