OptiX RTN 600 ODU
Hardware Description
l
NOTE

1.3 Functions and Features

The ODU is used for the frequency conversion and amplification of signals.
Issue 06 (2010-05-30)

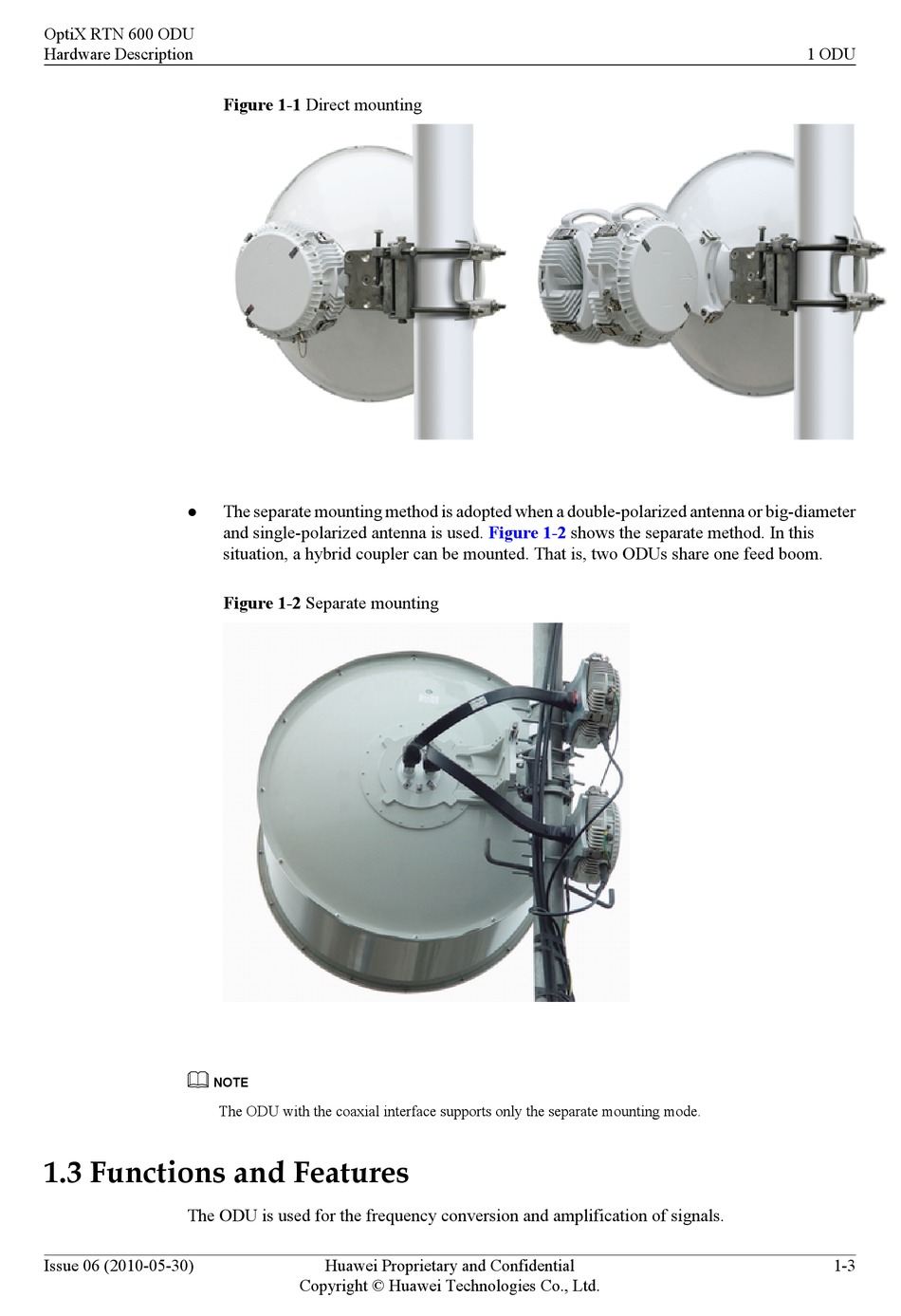

Figure 1-1 Direct mounting

The separate mounting method is adopted when a double-polarized antenna or big-diameter
and single-polarized antenna is used.
situation, a hybrid coupler can be mounted. That is, two ODUs share one feed boom.

Figure 1-2 Separate mounting

The ODU with the coaxial interface supports only the separate mounting mode.
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Figure 1-2 shows the separate method. In this
1 ODU
1-3
