Sensors & Software CONQUEST 100 User Manual page 98

Conquest 100

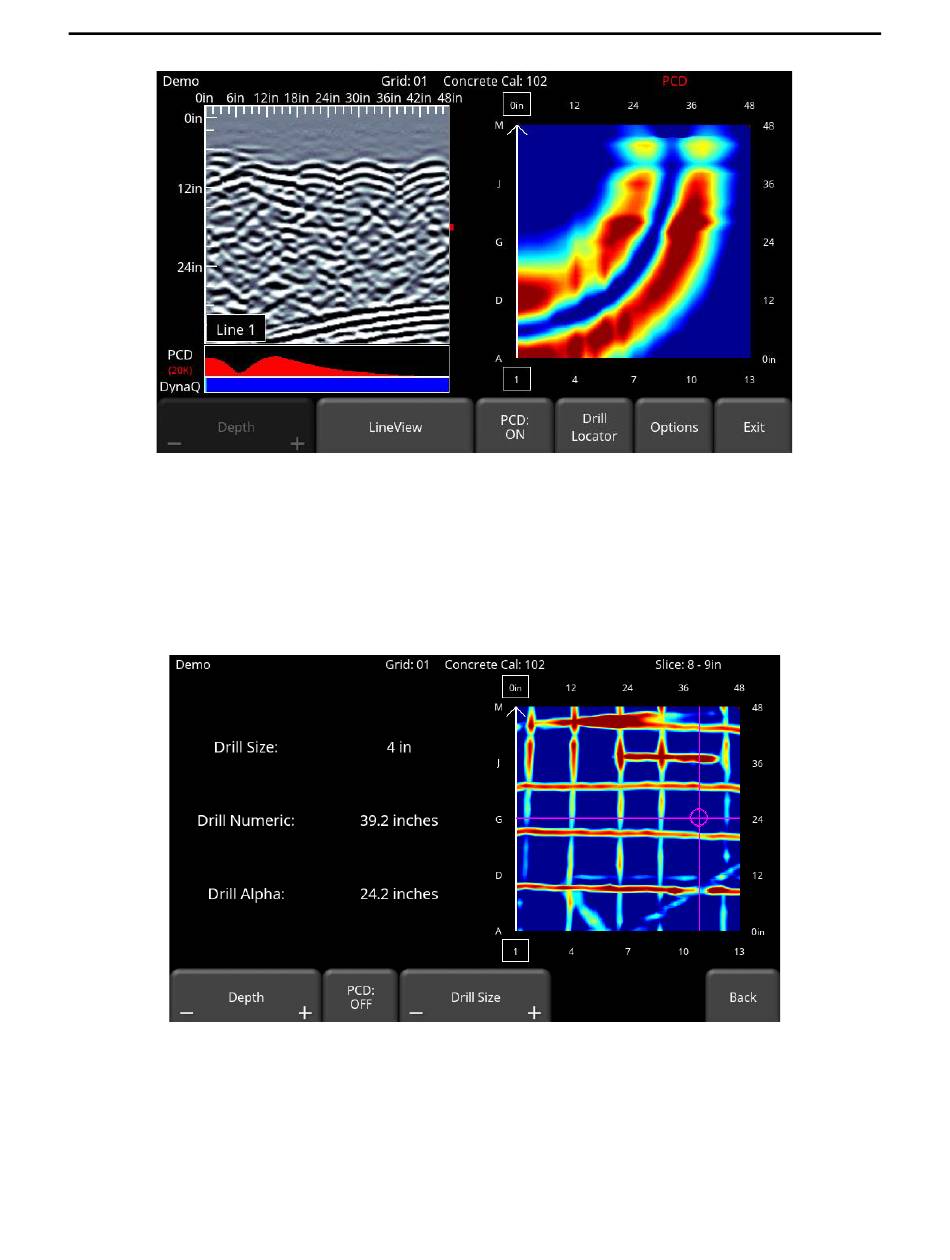

Figure 8-4: Screen image after switching from depth slice view to PCD view
•
Drill Locator – pressing this takes you into modified menu which shows a drill hole
superimposed over the data. The drill size can be changed by pressing the Drill Size -/+
button. The drill size is independent of the units used to scan. The user can cycle
through the sizes until the units change, allowing the use of metric drill bits on a U.S.
Standard grid or vice versa. Figure 8-5 illustrates a 4-inch diameter drill hole.
The position of the drill locator can easily be moved by simply touching anywhere on
the screen and the drill locator will move to that location. Alternatively, using the 4-
directional arrow button on the Display Unit or the Sensor Head keypad will move the
Figure 8-5: Drill Locator
88
SliceView
