Conquest 100

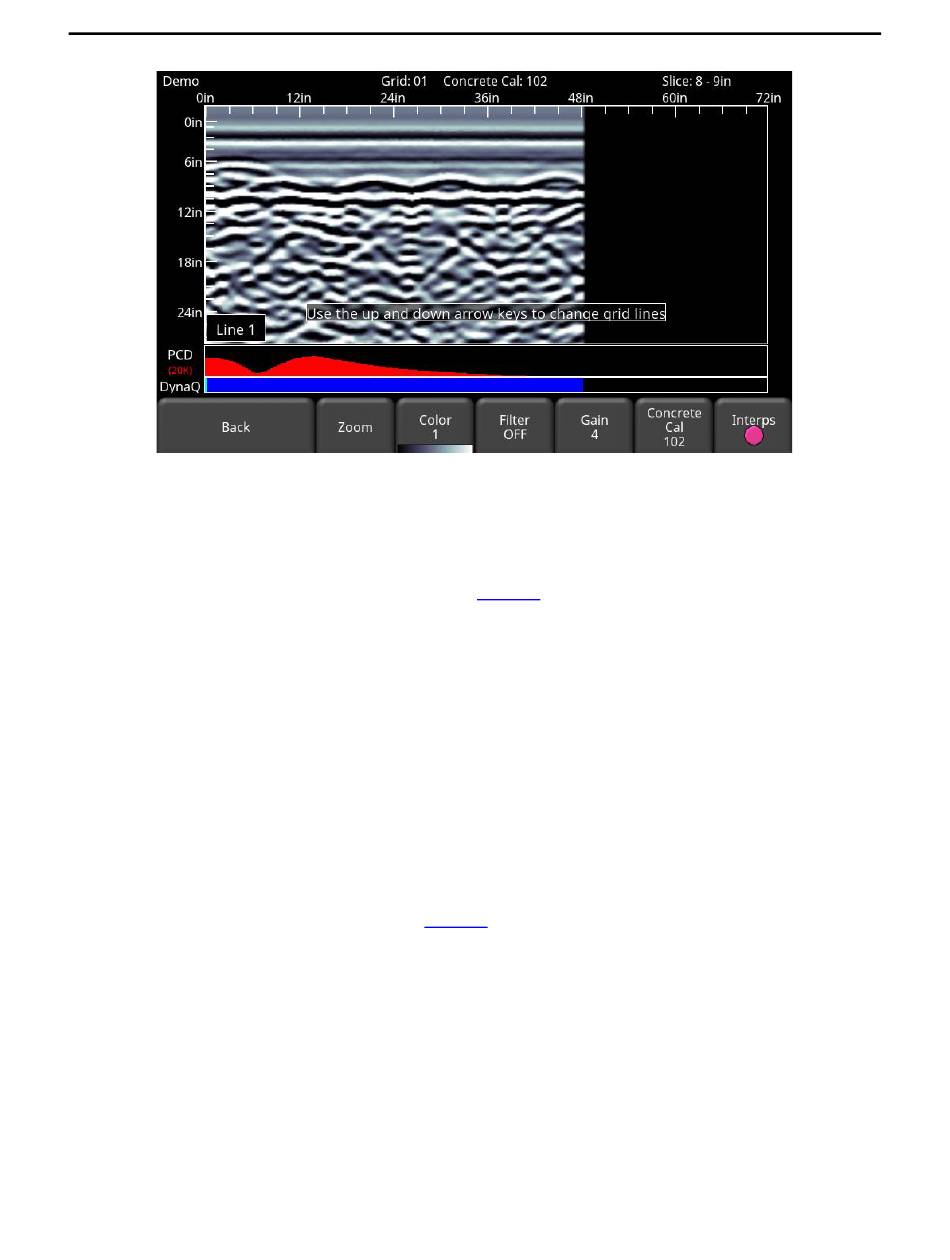

Figure 8-3: To display a Grid Line in full screen, press the LineView button
This displays the grid line along with the Zoom, Color, Filter, Gain, and Concrete Cal
menu options for modifying the image
It is also possible to display other collected grid lines using the keypad arrow buttons.
To exit from the LineView screen and return to SliceView, press the Back button. The
SliceView screen respects any display settings changed while in LineView.
If the value of the Concrete Cal is changed in LineView, the grid data will be
reprocessed when you return to SliceView.
•
PCD – pressing this button toggles between the PCD image and the depth slice images
(Figure 8-4). Note that when viewing the PCD image, the depth -/+ button is greyed out,
because the PCD image is a single image of the magnetic field at the surface (The
principles of PCD are explained in
(Section 6.8).
Section 2.6).
87
SliceView
