Conquest 100 Assembling Conquest
To connect the handle to the Sensor Head, slightly retract the 2 spring-loaded knobs on the end
of the handle forks, align with the two holes at the back of the Sensor Head and release them to
lock into position (Figure 3-10). Ensure that the cable remains below the handle to avoid
stressing it.

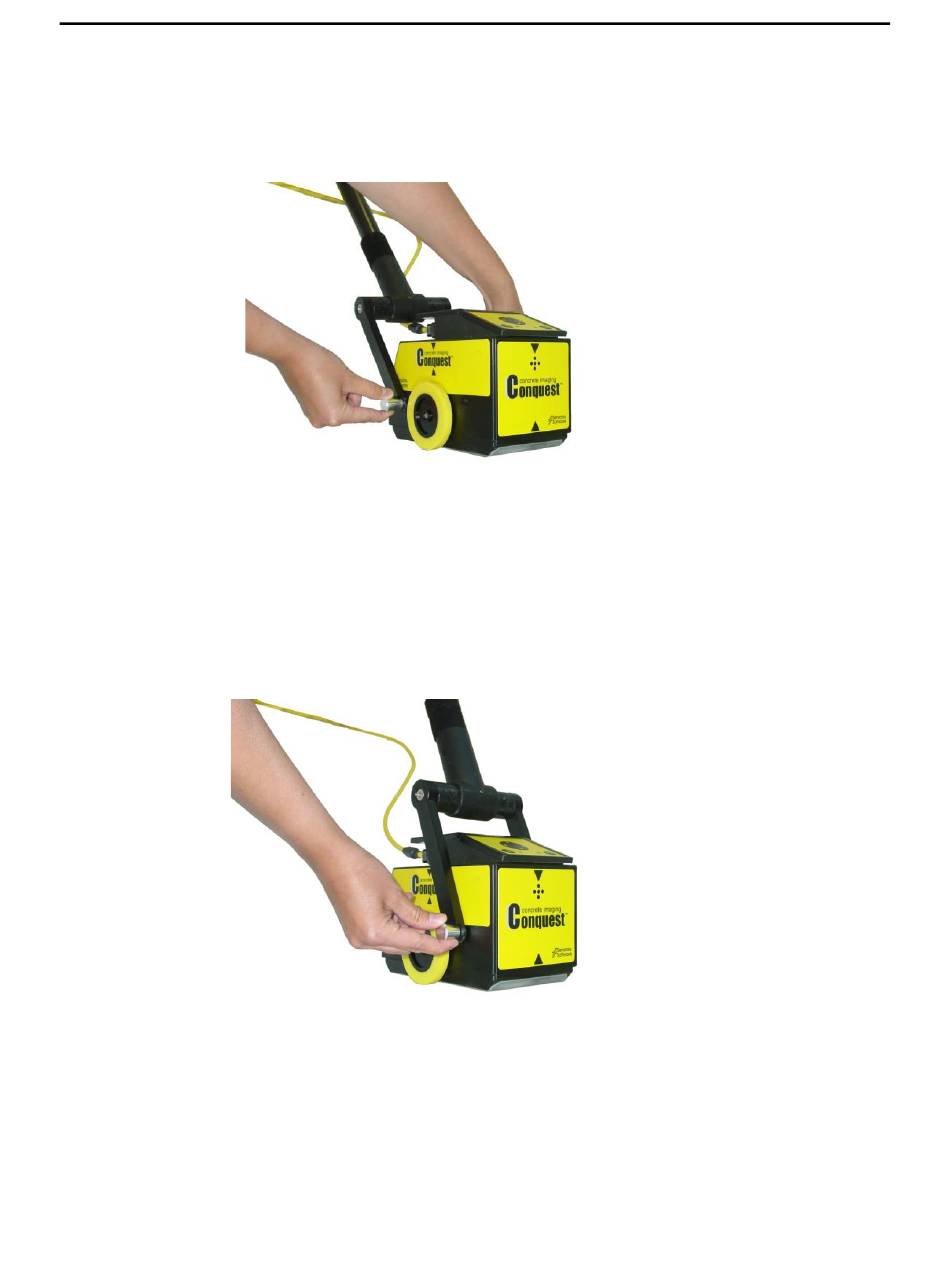

Figure 3-10: The 2 spring-loaded knobs on the forks of the handle are typically inserted into the holes at the back of
the Sensor Head.
There is an additional set of handle mounting holes at the front of the Sensor Head which are
used under unique circumstances such as scanning a vertical surface, or in confined spaces
when pulling the Sensor Head towards the user may be preferable to pushing it (Figure 3-11).
Figure 3-11: The handle can also be attached to the Sensor Head using the holes in the front. This mounting position
can make it easier to scan walls or complete surveys in situations where pulling the Sensor Head is preferable to
pushing it.
