Conquest 100

5.1.4 Volume

Scroll bar for adjusting the volume of clicks and beeps heard during operation. This can also be
changed by using the Swipe Down menu
data.

5.1.5 Brightness

Scroll bar for adjusting the brightness of the screen. This can also be changed by using the
Swipe Down menu (Section
the brightness consumes more battery power.

5.1.6 Wi-Fi Network

Connecting to a wireless network allows you to send a screenshot as a mini-report to someone
by e-mail. This connection can be through a standard Wi-Fi network or through a hotspot on
your mobile device while in the field.
Note that Conquest 100 CANNOT connect to Public Hotspots (typically restaurants,
hotels and airports) that require a web-based login and acceptance of their Terms &
Conditions. It also CANNOT connect to unsecured networks (networks that do not
require a password).
If you are already connected to a Wi-Fi network, the name of the network is listed beside the Wi-
Fi Network field. Selecting Wi-Fi Network takes you to a sub-menu (Figure 5-4) for connecting
to available Wi-Fi networks.
Use the 4-way directional arrows or touchscreen to select the network. The color of the
Network Name indicates the status:
(Section
4.1) anytime the system is not collecting data. Note that increasing

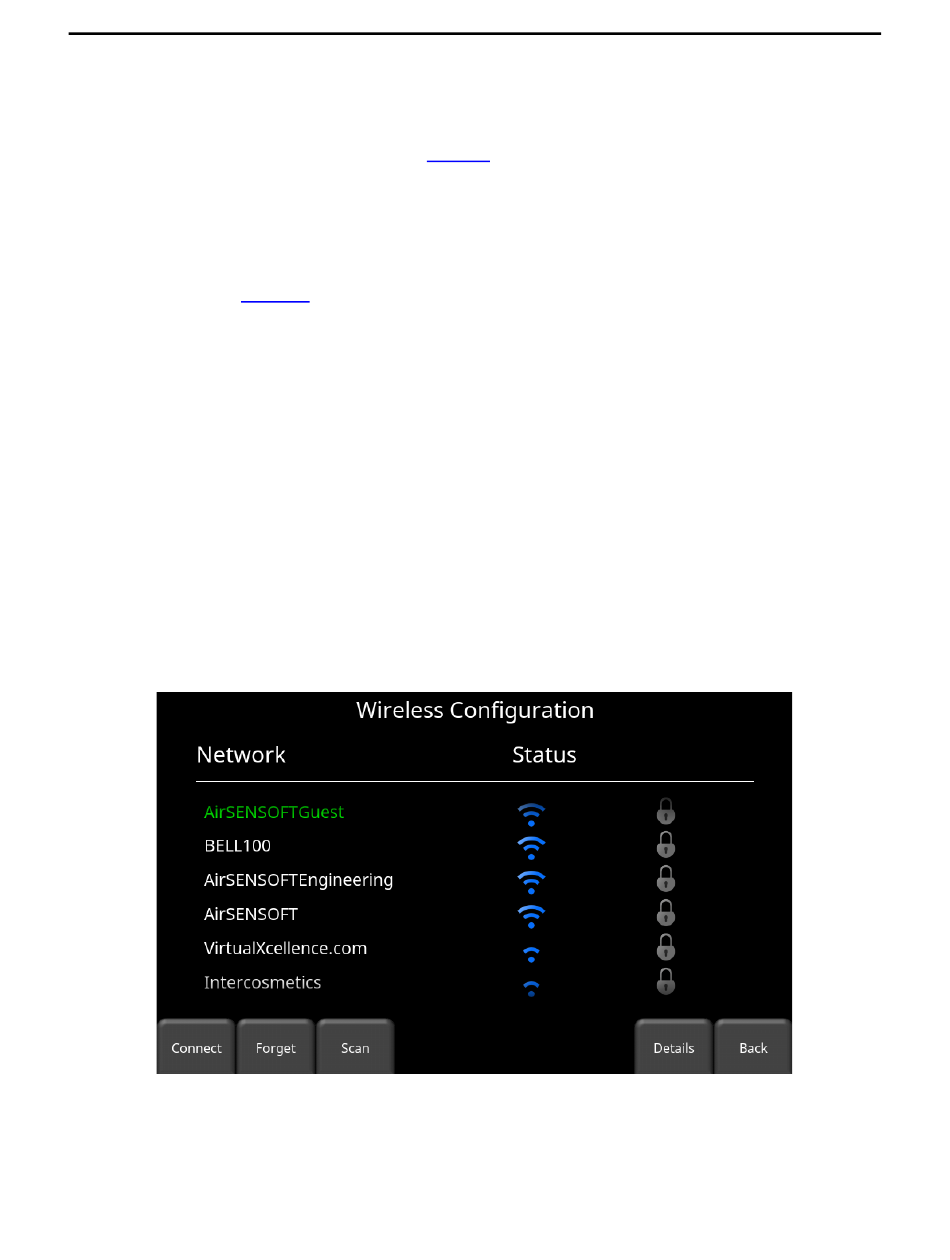

Figure 5-4: Select from available Wi-Fi networks
39
4.1) anytime the system is not collecting
