Grid Scan
•
Delete Grid – Press this to delete the grid data. You will be prompted to confirm again.
7.7 Surveying the Grid
Once your grid parameters have been set, press Start to open the grid collection screen (Figure
7-6).

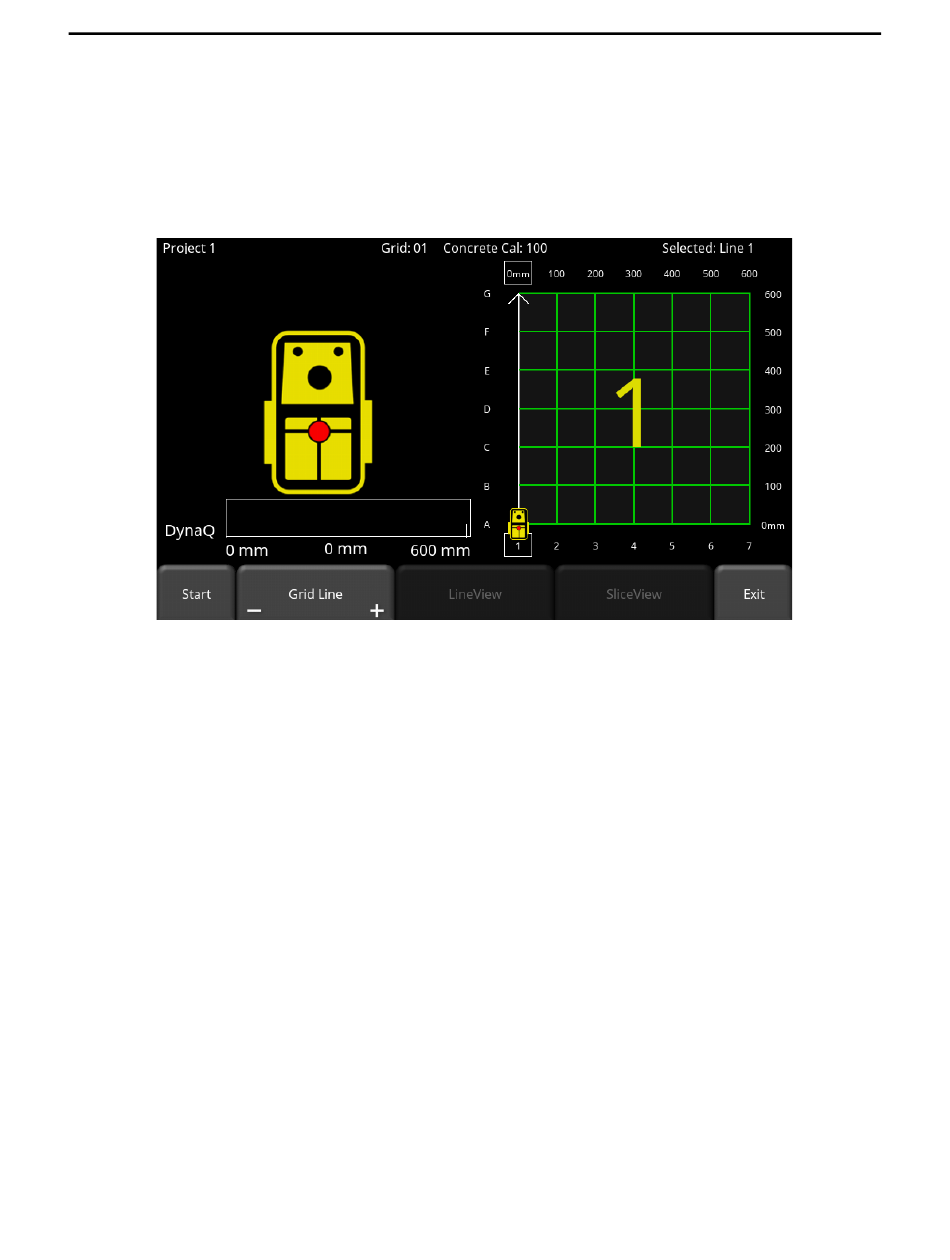

Figure 7-6: Screen shown during grid collection.
The Grid Scan screen guides the user through proper data collection. On the right is a graphic
representation of the grid, illustrating the size of the grid, the lines that need to be collected (in
green), the current line (in white) and the lines that have already been collected (in red). The
left side is reserved for the display of the most recently collected Line data.
7.8 Positioning the Sensor
At the start of every grid line, it is important the sensor be properly positioned before pressing
the Start button. Measurements are based on the center of the sensor moving along the line.
