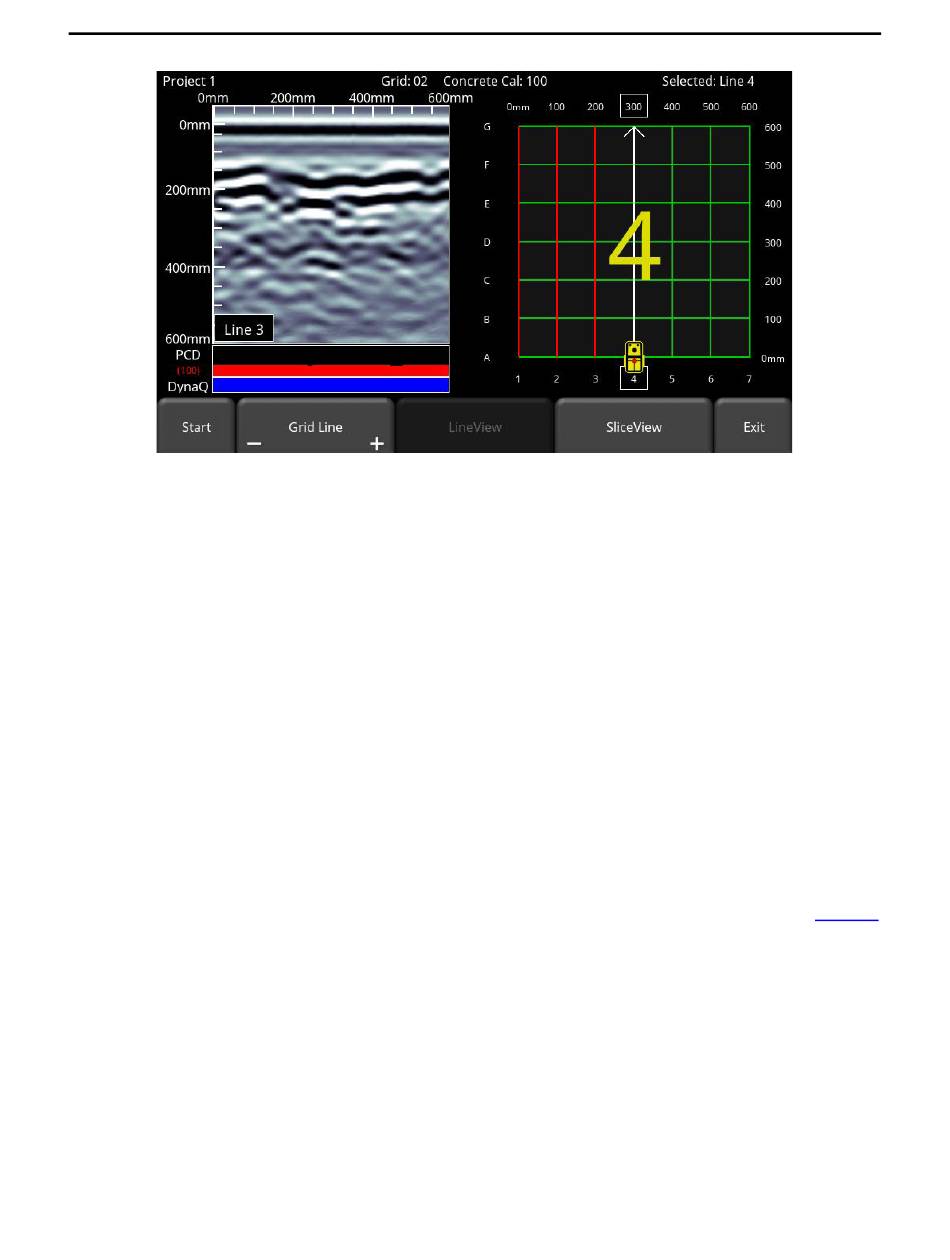

Figure 7-8: After collecting a line, the collected data is displayed on the left
Under the GPR Line image, the PCD response is shown in red and DynaQ line under that.
The color of the DynaQ bar indicates the quality of the data at that point along the line:
White
Yellow
Light blue = better quality
Dark Blue = highest quality
In general, avoid collecting data at extremely high rates of speed. The system will beep three
times to indicate that a data quality issue has been detected.
Flags can be inserted to mark noteworthy surface features, such as cracks in the concrete or if
the surface material changes. These markers may help you correlate subsurface targets with
above ground features.
Pressing the asterisk button on the keypad will insert a flag at your current position. The flag is
displayed on the line scan image and will also show up on the depth slices in SliceView
8). Flags are sequentially numbered.
= No Data (too fast!)
= moderate quality
82
Grid Scan
(Section
