3.4 Sensor Head

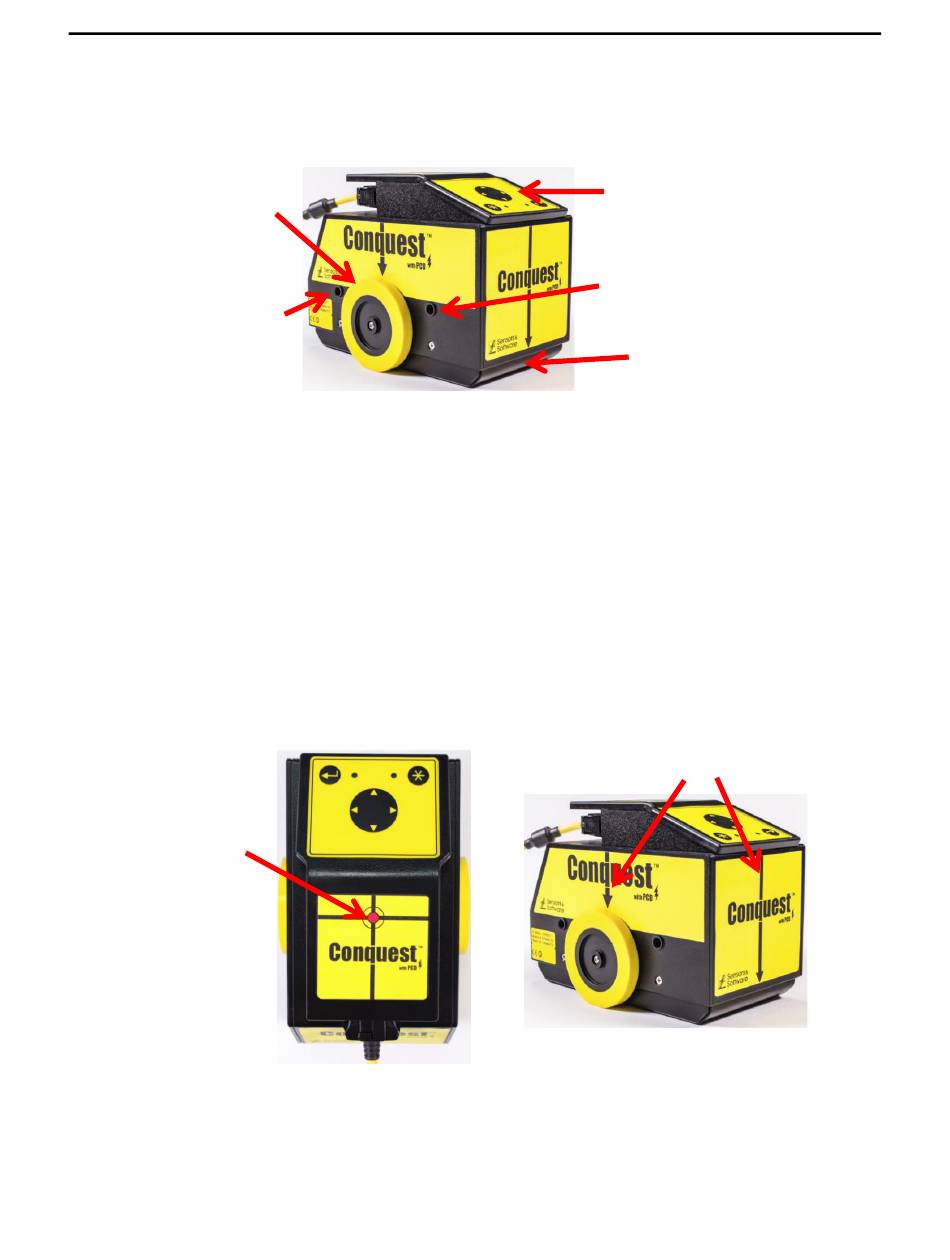

3.4.1 Features

Odometer
Back Handle Holes
•
Housing: Contains the GPR transmitter, receiver and PCD electronics.
•
Odometer: integrated, spring-loaded, 2-wheeled odometer for triggering data collection.
•
Skid pad: a replaceable wear-pad to protect the bottom of the Sensor Head from
abrasion.
•
Handle Holes: two sets of holes (front and back) for attaching the handle.
•
Sensor Keypad: for remote control of data collection (Figure 3-20).
•
Speaker: for the Conquest operator to hear audio "beeps" indicating the start and end of
the line.
•
Alignment Arrows: The Sensor Head has a red dot with lines and arrows drawn to the
front, back and sides in the center of the unit. Positions on Conquest Line and Grid
Scans are always based on the center of the Sensor Head, so the dot and arrows are
important for lining up the Sensor Head properly at the start of a line (Figure 3-16).
Center
Figure 3-19: The Sensor Head has a red dot in the center with 4 arrows drawn across the top and down the sides in
each direction. These arrows help to properly align the Sensor Head for data collection.
Sensor Keypad
Front Handle Holes
Skid pad
Alignment Arrows
